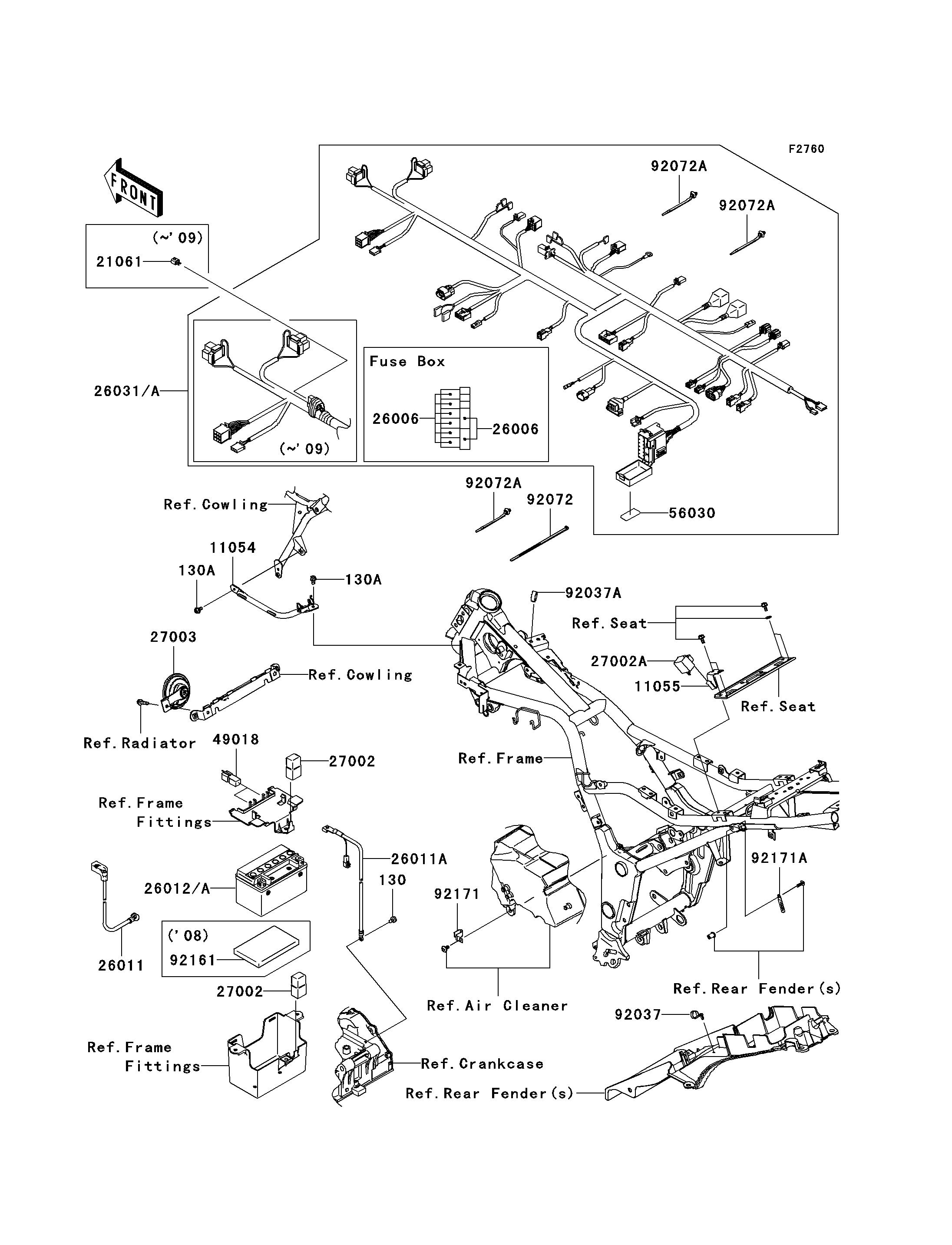

2009 Ninja® 250R - Chassis Electrical Equipment

DOWNLOAD PDF
SELECT A NEW PART
130
130A
130A
11054
11055
21061
26006
26006
26011
26011A
26012
26031
27002
27002
27002A
27003
49018
56030
92037
92037A
92072
92072A
92072A
92072A
92171
92171A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X10 130 130BB0610 1
BOLT-FLANGED,6X12 130A 130BB0612 2
BRACKET,HARNESS 11054 11054-1754 1
BRACKET,RELAY 11055 11055-0844 1
RECTIFIER 21061 21061-1003 1
FUSE,10A 26006 26006-1078 8
WIRE-LEAD,BATTERY(+) 26011 26011-0151 1
WIRE-LEAD,BATTERY(-) 26011A 26011-0152 1
BATTERY,YTX9-BS,12V 8AH 26012 26012-0088 1
HARNESS,MAIN 26031 26031-0717 1
RELAY-ASSY 27002 27002-1086 2
RELAY-ASSY 27002A 27002-1091 1
HORN 27003 27003-0058 1
DIODE 49018 49018-1052 2
LABEL,FUSE BOX 56030 56030-0147 1
CLAMP,SPEED,L=58 92037 92037-1163 1
CLAMP,HOSE 92037A 92037-1827 1
BAND,L=202 92072 92072-1195 1
BAND 92072A 92072-1414 10
CLAMP 92171 92171-0305 1
CLAMP 92171A 92171-0389 1
