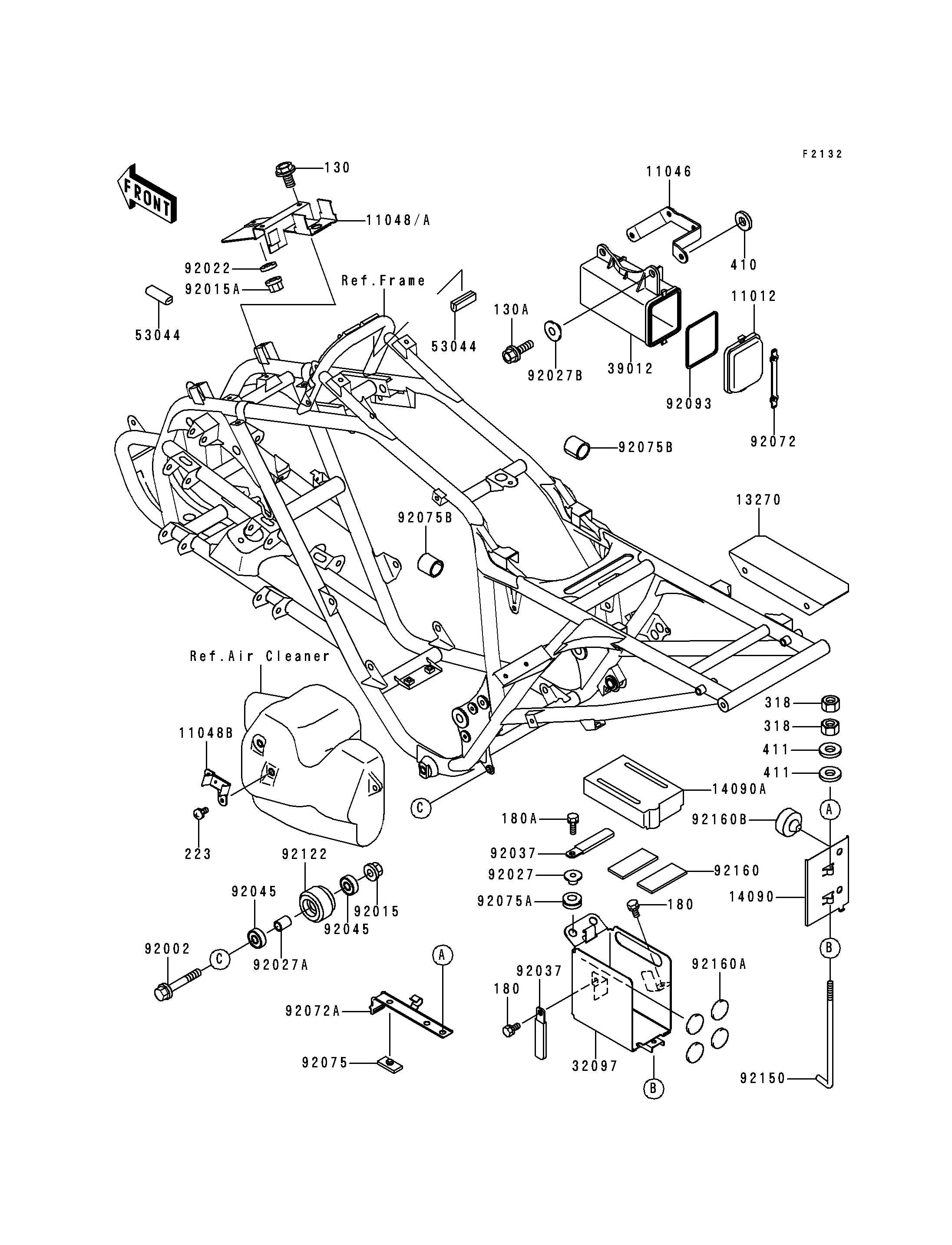

1995 Lakota 300 - Battery Case

DOWNLOAD PDF
SELECT A NEW PART
130
130A
180
180
180A
223
318
318
410
411
411
11012
11046
11048A
11048B
13270
14090
14090A
32097
39012
53044
53044
92002
92015
92015A
92022
92027
92027A
92027B
92037
92037
92045
92045
92072
92072A
92075
92075A
92075B
92075B
92093
92122
92150
92160
92160A
92160B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X10 130 130B0610 2
BOLT-FLANGED,8X20 130A 130G0820 2
BOLT-UPSET-WS 180 180D0612 2
BOLT-UPSET-WS 180A 180D0620 2
SCREW-PAN-WS-CROS 223 223C0610 1
NUT-HEX-SMALL 318 318J0800 2
WASHER-PLAIN-SMALL,8MM 410 410B0800 2
WASHER-PLAIN,8MM,BLACK 411 411F0800 2
CAP,TOOL CASE 11012 11012-1606 1
BRACKET,STORAGE CASE 11046 11046-1911 1
BRACKET,ELECTRIC,SILVER NO.40 11048A 11048-1771-5A 1
BRACKET,AIR FILTER 11048B 11048-1772 1
PLATE,MUFFLER 13270 13270-1346 1
COVER,BATTERY 14090 14090-1501 1
COVER 14090A 14090-1573 1
CASE-BATTERY 32097 32097-1155 1
CASE-STORAGE 39012 39012-1055 1
TRIM,L=50 53044 53044-1185 2
BOLT,FLANGED,8X52 92002 92002-1857 1
NUT,8MM 92015 92015-1432 1
NUT,LOCK,FLANGED,6MM 92015A 92015-1675 1
WASHER,7X16X1.2 92022 92022-1344 1
COLLAR,L=9.6 92027 92027-1045 2
COLLAR,8.8X12X15.5 92027A 92027-1081 1
COLLAR 92027B 92027-1354 2
CLAMP 92037 92037-1679 2
BEARING-BALL,608DMC3 AV2S 92045 92045-1227 2
BAND,TOOL CASE CAP 92072 92072-1226 1
BAND,BATTERY 92072A 92072-1315 1
DAMPER 92075 92075-1054 2
DAMPER 92075A 92075-1167 2
DAMPER,25X31X30 92075B 92075-1906 2
SEAL,TOOL CASE CAP 92093 92093-1247 1
ROLLER,CHAIN GUIDE 92122 92122-1102 1
BOLT,BATTERY 92150 92150-1293 1
DAMPER 92160 92160-1073 2
DAMPER 92160A 92160-1472 4
DAMPER 92160B 92160-3766 2
