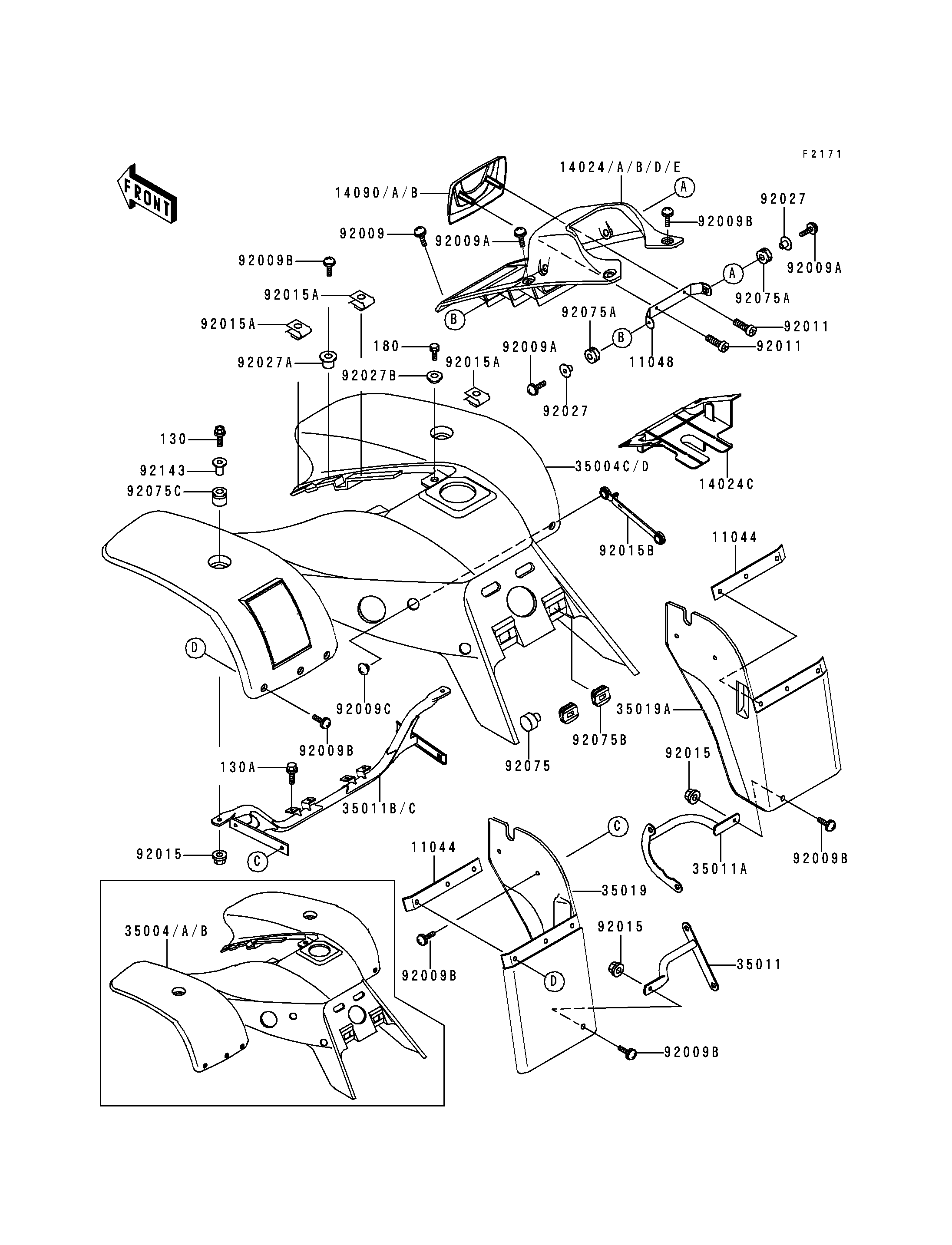

1995 Lakota 300 - Front Fender(s)

DOWNLOAD PDF
SELECT A NEW PART
11044
11044
11044
11044
11048
11048
14024C
14024C
14090A
14090A
35004B
35004B
35011
35011
35011A
35011A
35011C
35011C
35019
35019
35019A
35019A
92009
92009
92009B
92009B
92009B
92009B
92009B
92009B
92009B
92009B
92009B
92009B
92009B
92009B
92009C
92009C
92011
92011
92011
92011
92015
92015
92015
92015
92015
92015
92015A
92015A
92015A
92015A
92015A
92015A
92015B
92015B
92027
92027
92027
92027
92027A
92027A
130
130
130A
130A
180
180
92075
92075
92075A
92075A
92075A
92075A
92075B
92075B
92075C
92075C
92143
92143
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,FLAP 11044 11044-1934 2
BRACKET,HEAD LAMP COVER 11048 11048-1742 1
COVER,FRONT FENDER,INNER 14024C 14024-1297 1
COVER,HEAD LAMP,GRAY 14090A 14090-1495-RG 1
FENDER-FRONT,F.RED 35004B 35004-1192-6L 1
STAY,FRONT FLAP,LH,SILVER 35011 35011-1694-5A 1
STAY,FRONT FLAP,RH,SILVER 35011A 35011-1695-5A 1
STAY,FR FENDER,SILVER NO.40 35011C 35011-1697-5A 1
FLAP,LH 35019 35019-1172 1
FLAP,RH 35019A 35019-1173 1
SCREW,6X18,BLACK 92009 92009-1181 2
SCREW,6X14 92009B 92009-1288 16
SCREW,16MM 92009C 92009-1508 2
SCREW 92011 92011-562 2
NUT,LOCK,FLANGED,6MM 92015 92015-1675 4
NUT,CLAMP,6MM 92015A 92015-1678 6
NUT 92015B 92015-1701 1
COLLAR,L=13.1,BLACK 92027 92027-1450 2
COLLAR 92027A 92027-1757 2
BOLT-FLANGED,6X35 130 130G0635 2
BOLT-FLANGED,6X12 130A 130P0612 4
BOLT-UPSET-WS,6X35 180 180D0635 2
DAMPER,DUAL SEAT 92075 92075-023 1
DAMPER 92075A 92075-1690 2
DAMPER 92075B 92075-1834 2
DAMPER 92075C 92075-1936 2
COLLAR,L=19.6 92143 92143-1100 2
COVER,FRONT FENDER,GRAY 14024A 14024-1268-RG 1
COVER,FRONT FENDER,GRAY 14024E 14024-1442-RG 1
FENDER-FRONT,F.GREEN 35004 35004-1192-59 1
SCREW,6X22,BLACK 92009A 92009-1256 2
SCREW,6X22,BLACK 92009A 92009-1256 4
COLLAR,L=5.6 92027B 92027-1933 1
COLLAR,L=5.6 92027B 92027-1933 2
