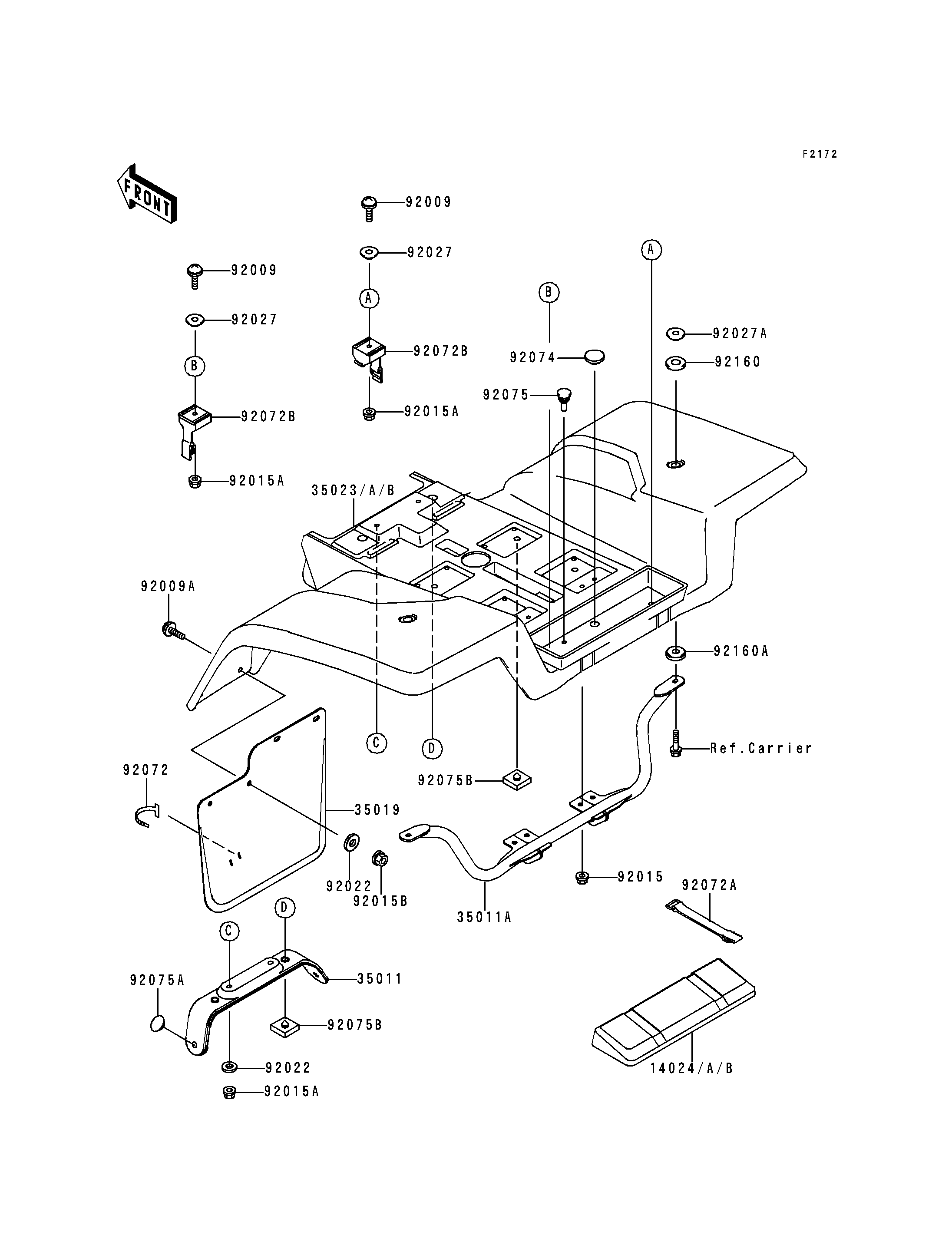

Parts Diagrams |
14024
14024B
35011
35011A
35019
35023
35023B
92009
92009
92009A
92015
92015A
92015A
92015A
92015B
92022
92022
92027
92027
92027A
92072
92072A
92072B
92072B
92074
92075
92075A
92075B
92075B
92160
92160A
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
COVER,REAR FENDER,F.GREEN | 14024 | 14024-1283-59 | 1 | ||
COVER,REAR FENDER,F.RED | 14024B | 14024-1283-6L | 1 | ||
STAY,REAR FENDER,FR | 35011 | 35011-1316 | 1 | ||
STAY,REAR FENDER,RR,SILVER | 35011A | 35011-1698-5A | 1 | ||
FLAP,REAR FENDER,F.BLACK | 35019 | 35019-1321-6Z | 2 | ||
FENDER-REAR,F.GREEN | 35023 | 35023-1392-59 | 1 | ||
FENDER-REAR,F.RED | 35023B | 35023-1392-6L | 1 | ||
SCREW,6X14 | 92009 | 92009-1288 | 2 | ||
SCREW,6X16 | 92009A | 92009-1621 | 8 | ||
NUT,FLANGED,6MM,BLACK | 92015 | 92015-1233 | 4 | ||
NUT,LOCK,FLANGED,6MM | 92015A | 92015-1339 | 4 | ||
NUT,LOCK,FLANGED,6MM | 92015B | 92015-1675 | 8 | ||
WASHER,6.5X20X1.6 | 92022 | 92022-1804 | 10 | ||
COLLAR,L=5.1 | 92027 | 92027-1260 | 2 | ||
COLLAR | 92027A | 92027-1767 | 2 | ||
BAND,L=123 | 92072 | 92072-030 | 2 | ||
BAND,L=150 | 92072A | 92072-1203 | 2 | ||
BAND | 92072B | 92072-1215 | 2 | ||
PLUG,11X3.2 | 92074 | 92074-038 | 1 | ||
DAMPER | 92075 | 92075-1808 | 2 | ||
DAMPER | 92075A | 92075-1861 | 2 | ||
DAMPER | 92075B | 92075-1882 | 6 | ||
DAMPER | 92160 | 92160-1011 | 2 | ||
DAMPER | 92160A | 92160-1017 | 2 |
