112
550
550A
670
11012
43001
92015
92022
92043
92055
92081
92200

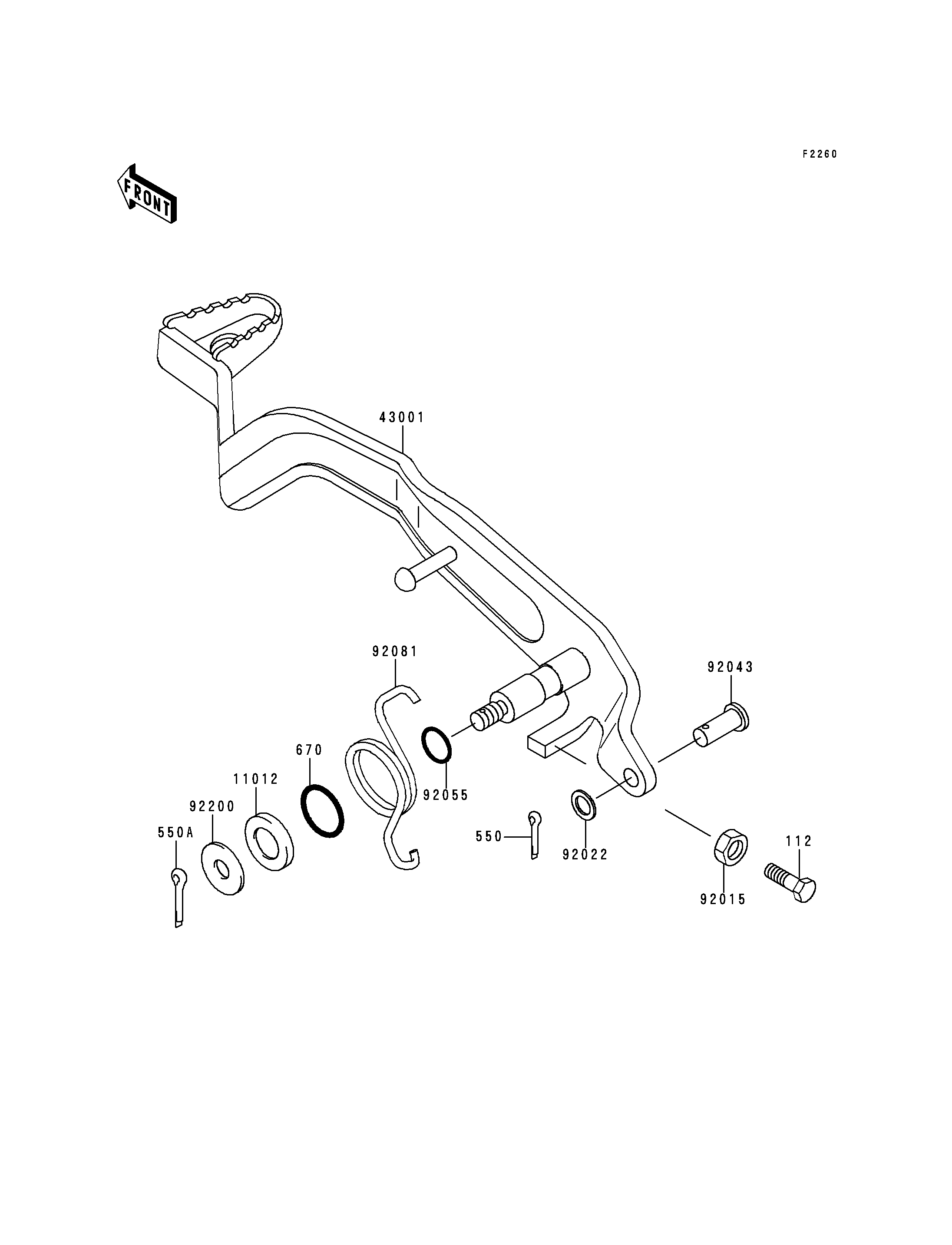

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-UPSET 112 112D0622 1
PIN-COTTER,2.0X20 550 550D2020 1
PIN-COTTER,2.5X25 550A 550D2525 1
O RING,18MM 670 670B2018 1
CAP 11012 11012-1516 1
LEVER-BRAKE,PEDAL,SILVER NO.40 43001 43001-1350-5A 1
NUT,6MM 92015 92015-1410 1
WASHER,8.5X13X1 92022 92022-1028 1
PIN 92043 92043-1039 1
RING-O,13.5MM 92055 92055-073 1
SPRING,BRAKE PEDAL RETURN 92081 92081-1996 1
WASHER,8.5X23X1.6 92200 92200-1156 1
