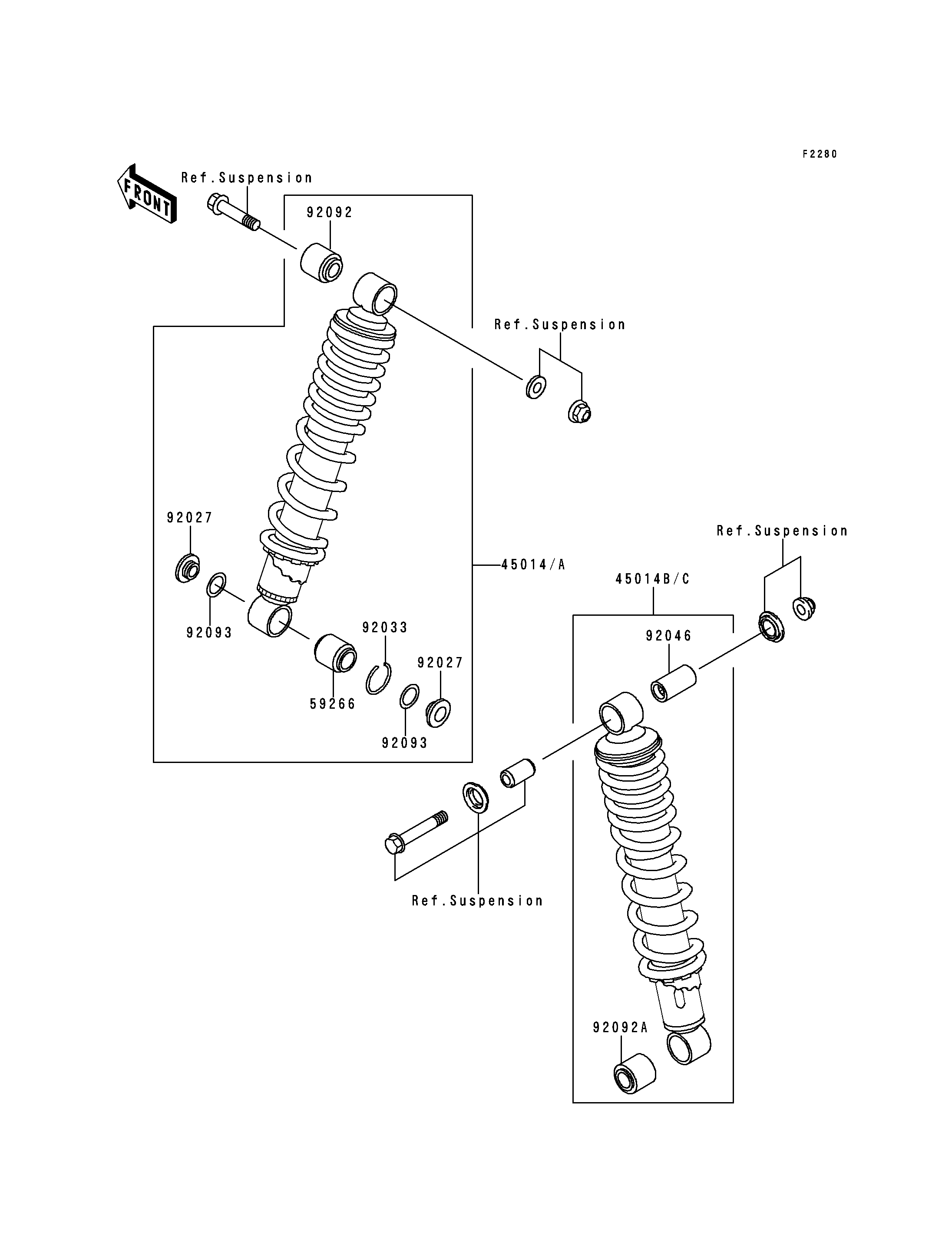

45014A
45014C
59266
92027
92027
92033
92046
92092
92092A
92093
92093
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SHOCKABSORBER,FR,BLACK 45014A 45014-1391-10 2
SHOCKABSORBER,RR,BLACK 45014C 45014-1392-10 1
JOINT-BALL 59266 59266-1053 2
COLLAR 92027 92027-1862 4
RING-SNAP 92033 92033-1090 2
BEARING-NEEDLE 92046 92046-1046 1
BUSHING-RUBBER,SHOCKABSORBER 92092 92092-1016 2
BUSHING-RUBBER,SHOCKABSORBER 92092A 92092-1054 1
SEAL 92093 92093-1183 4
