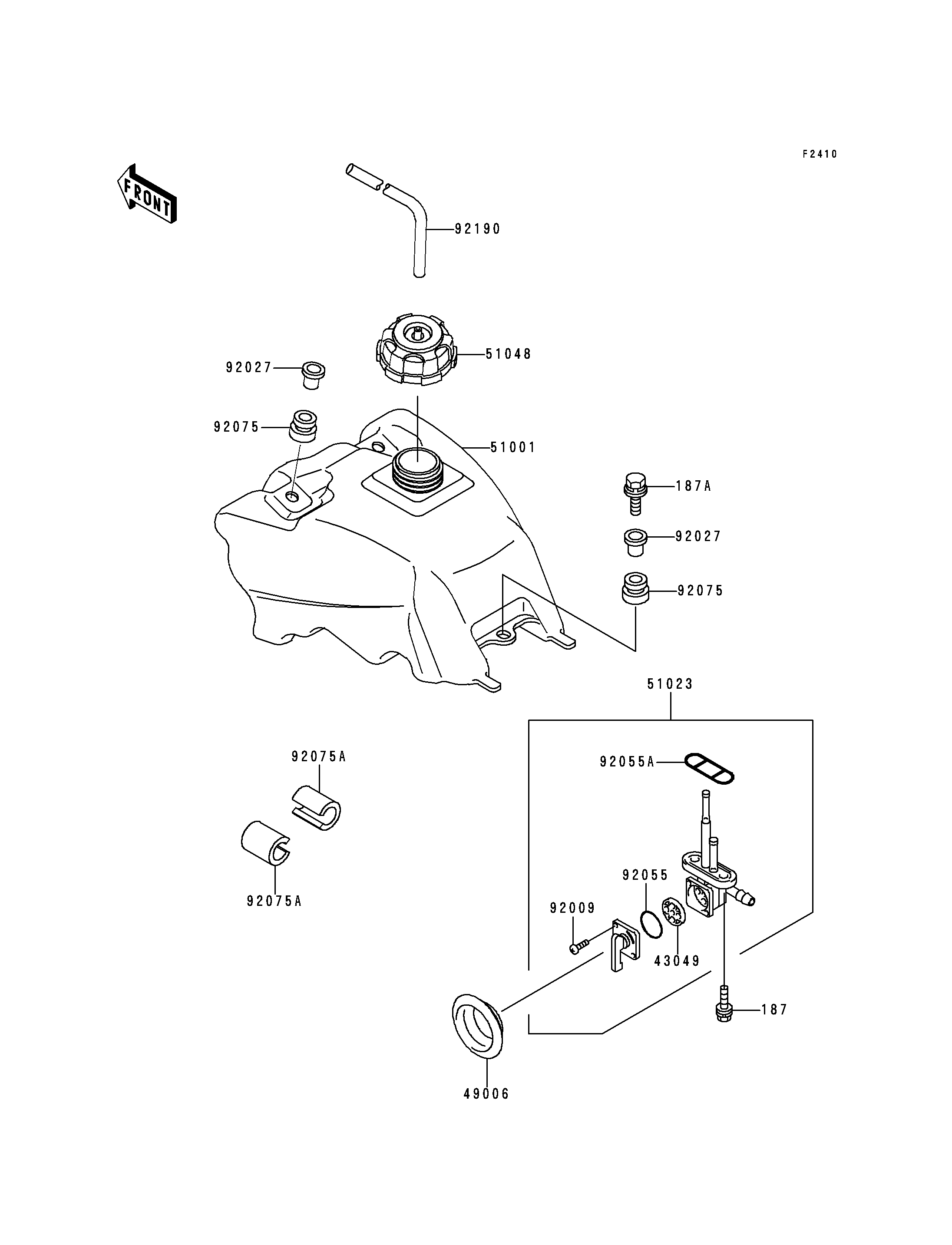

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-UPSET-WSP 187 187B0614 2
BOLT-UPSET-WSP 187A 187D0630 1
PACKING,FUEL TAP LEVER 43049 43049-1017 1
BOOT 49006 49006-1192 1
TANK-COMP-FUEL 51001 51001-1482 1
TAP-ASSY,FUEL 51023 51023-1146 1
CAP-ASSY-TANK,FUEL 51048 51048-1090 1
SCREW,3X5 92009 92009-1123 2
COLLAR,L=16.1 92027 92027-1847 3
RING-O,FUEL TAP LEVER 92055 92055-1111 1
RING-O,FUEL TAP PACKING 92055A 92055-1348 1
DAMPER 92075 92075-1787 3
DAMPER,FUEL TANK 92075A 92075-1835 2
TUBE,4.7X9.5X350 92190 92190-1022 1
