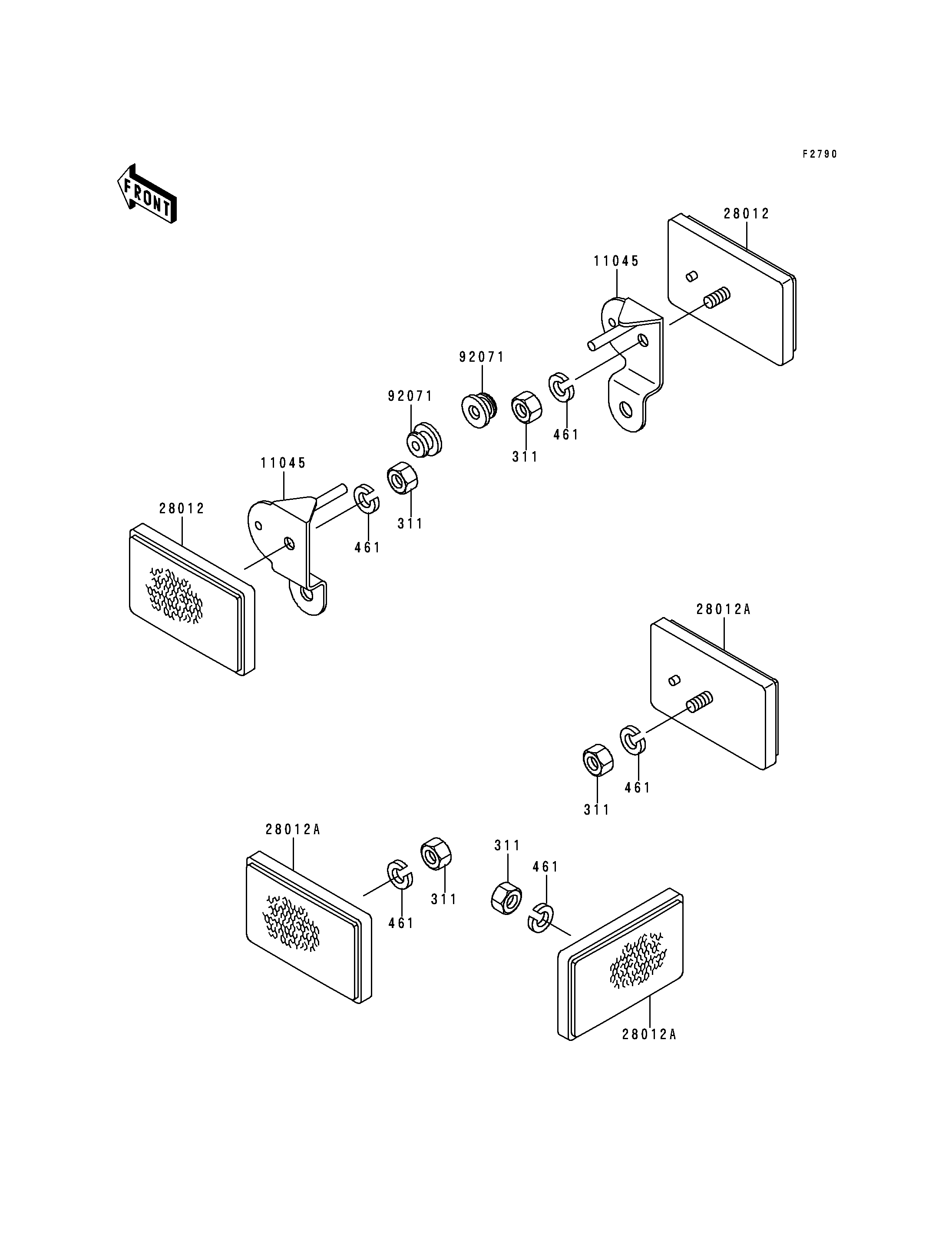

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
NUT-HEX 311 311C0500 5
WASHER-SPRING,5MM,BLACK 461 461K0500 5
BRACKET,REFLECTOR 11045 11045-1562 2
REFLECTOR-REFLEX 28012 28012-1003 2
REFLECTOR-REFLEX,RR 28012A 28012-1078 3
GROMMET 92071 92071-1045 2
