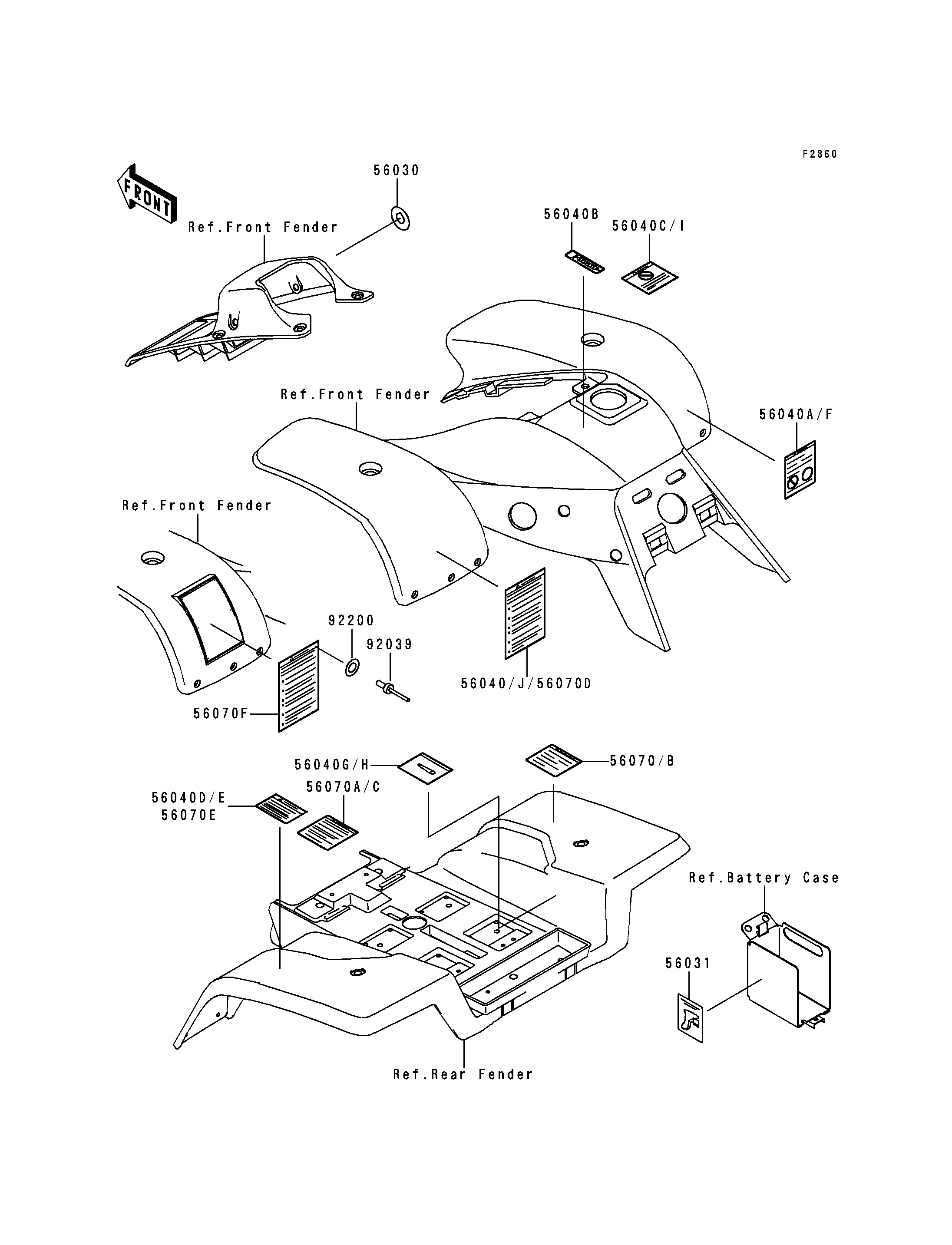

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
LABEL,IGNITION SWITCH | 56030 | 56030-1086 | 1 | ||
LABEL-MANUAL,BATTERY VENT | 56031 | 56031-1891 | 1 | ||
LABEL-WARNING,SERIOUS INJURY | 56040 | 56040-1256 | 1 | ||
LABEL-WARNING,TRANSPORT | 56040A | 56040-1261 | 1 | ||
LABEL-WARNING,SHIFT PATTERN | 56040B | 56040-1262 | 1 | ||
LABEL-WARNING,UNDER 16 | 56040C | 56040-1276 | 1 | ||
LABEL-WARNING,NO PASSENGER | 56040D | 56040-1277 | 1 | ||
LABEL-WARNING,CHAIN SLACK | 56040G | 56040-1289 | 1 | ||
LABEL-WARNING,TIRE PRESSURE | 56070 | 56070-1080 | 1 | ||
LABEL-WARNING,MAX VEHICLE LOAD | 56070A | 56070-1081 | 1 | ||
LABEL-WARNING,NO PASSENGER | 56040E | 56040-1280 | 1 | ||
LABEL-WARNING,TRANSPORT | 56040F | 56040-1283 | 1 | ||
LABEL-WARNING,CHAIN SLACK | 56040H | 56040-1297 | 1 | ||
LABEL-WARNING,AGE | 56040I | 56040-1325 | 1 | ||
LABEL-WARNING,GENERAL | 56040J | 56040-1326 | 1 | ||
LABEL-WARNING,TIRE PRESSURE | 56070B | 56070-1086 | 1 | ||
LABEL-WARNING,MAX VEHICLE LOAD | 56070C | 56070-1087 | 1 |
LABEL,IGNITION SWITCH | |
REF # | 56030 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LABEL-MANUAL,BATTERY VENT | |
REF # | 56031 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LABEL-WARNING,SERIOUS INJURY | |
REF # | 56040 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LABEL-WARNING,TRANSPORT | |
REF # | 56040A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LABEL-WARNING,SHIFT PATTERN | |
REF # | 56040B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LABEL-WARNING,UNDER 16 | |
REF # | 56040C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LABEL-WARNING,NO PASSENGER | |
REF # | 56040D |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LABEL-WARNING,CHAIN SLACK | |
REF # | 56040G |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LABEL-WARNING,TIRE PRESSURE | |
REF # | 56070 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LABEL-WARNING,MAX VEHICLE LOAD | |
REF # | 56070A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LABEL-WARNING,NO PASSENGER | |
REF # | 56040E |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LABEL-WARNING,TRANSPORT | |
REF # | 56040F |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LABEL-WARNING,CHAIN SLACK | |
REF # | 56040H |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LABEL-WARNING,AGE | |
REF # | 56040I |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LABEL-WARNING,GENERAL | |
REF # | 56040J |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LABEL-WARNING,TIRE PRESSURE | |
REF # | 56070B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LABEL-WARNING,MAX VEHICLE LOAD | |
REF # | 56070C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
