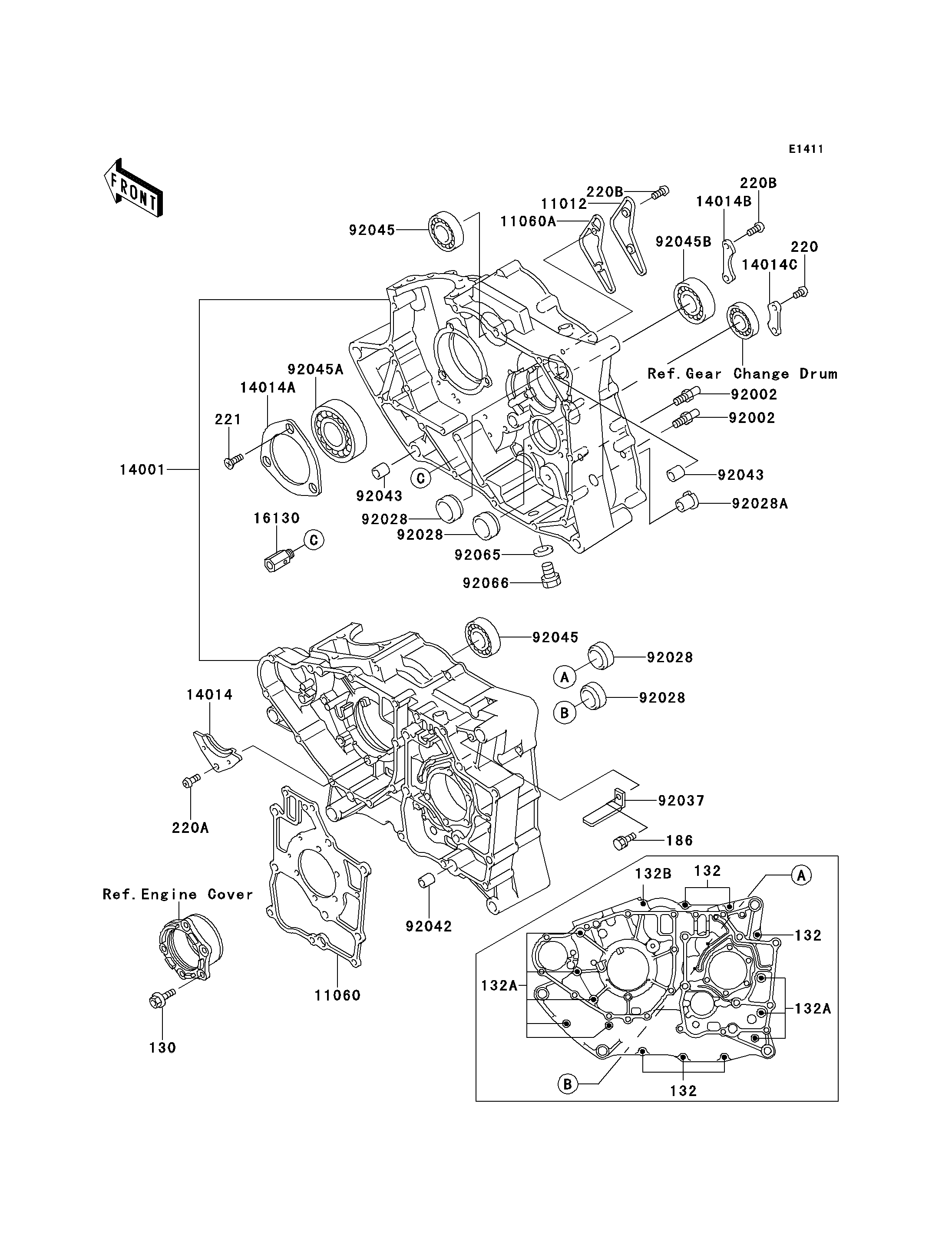

2000 Lakota 300 - Crankcase

DOWNLOAD PDF
SELECT A NEW PART
130
132
132
132
132A
132A
132B
186
220
220A
220B
220B
221
11012
11060
11060A
14001
14014
14014A
14014B
14014C
16130
92002
92002
92028
92028
92028
92028
92028A
92037
92042
92043
92043
92045
92045
92045A
92045B
92065
92066
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X20 130 130P0620 5
BOLT-FLANGED-SMALL 132 132Y0635 6
BOLT-FLANGED-SMALL 132A 132Y0665 8
BOLT-FLANGED-SMALL 132B 132Y0685 1
BOLT-UPSET-WP 186 186D0614 1
SCREW-PAN-CROS,6X10 220 220B0610 2
SCREW-PAN-CROS,6X12 220A 220B0612 1
SCREW-PAN-CROS,6X14 220B 220B0614 4
SCREW-CSK-CROS,6X16 221 221B0616 3
CAP 11012 11012-1443 1
GASKET,GEAR CASE 11060 11060-1653 1
GASKET,OIL LINE CAP 11060A 11060-1654 1
SET-CRANKCASE 14001 14001-5324 1
PLATE-POSITION,CAM CHAIN 14014 14014-035 1
PLATE-POSITION,CRANK BEARING 14014A 14014-1004 1
PLATE-POSITION 14014B 14014-1069 1
PLATE-POSITION,CHANGE DRUM 14014C 14014-1070 1
VALVE-ASSY-RELIEF 16130 16130-1001 1
BOLT,RETURN SPRING 92002 92002-1408 2
BUSHING,23X30X13 92028 92028-132 4
BUSHING 92028A 92028-1386 1
CLAMP,HARNESS 92037 92037-1316 1
PIN,DOWEL,12X14 92042 92042-031 1
PIN,11.5X14X14 92043 92043-1279 2
BEARING-BALL,6004TMB 92045 92045-1118 2
BEARING-BALL 92045A 92045-1172 1
BEARING-BALL 92045B 92045-1173 1
GASKET,12X22X2,DRAIN PLUG 92065 92065-097 1
PLUG,OIL DRAIN,12X15 92066 92066-1174 1
