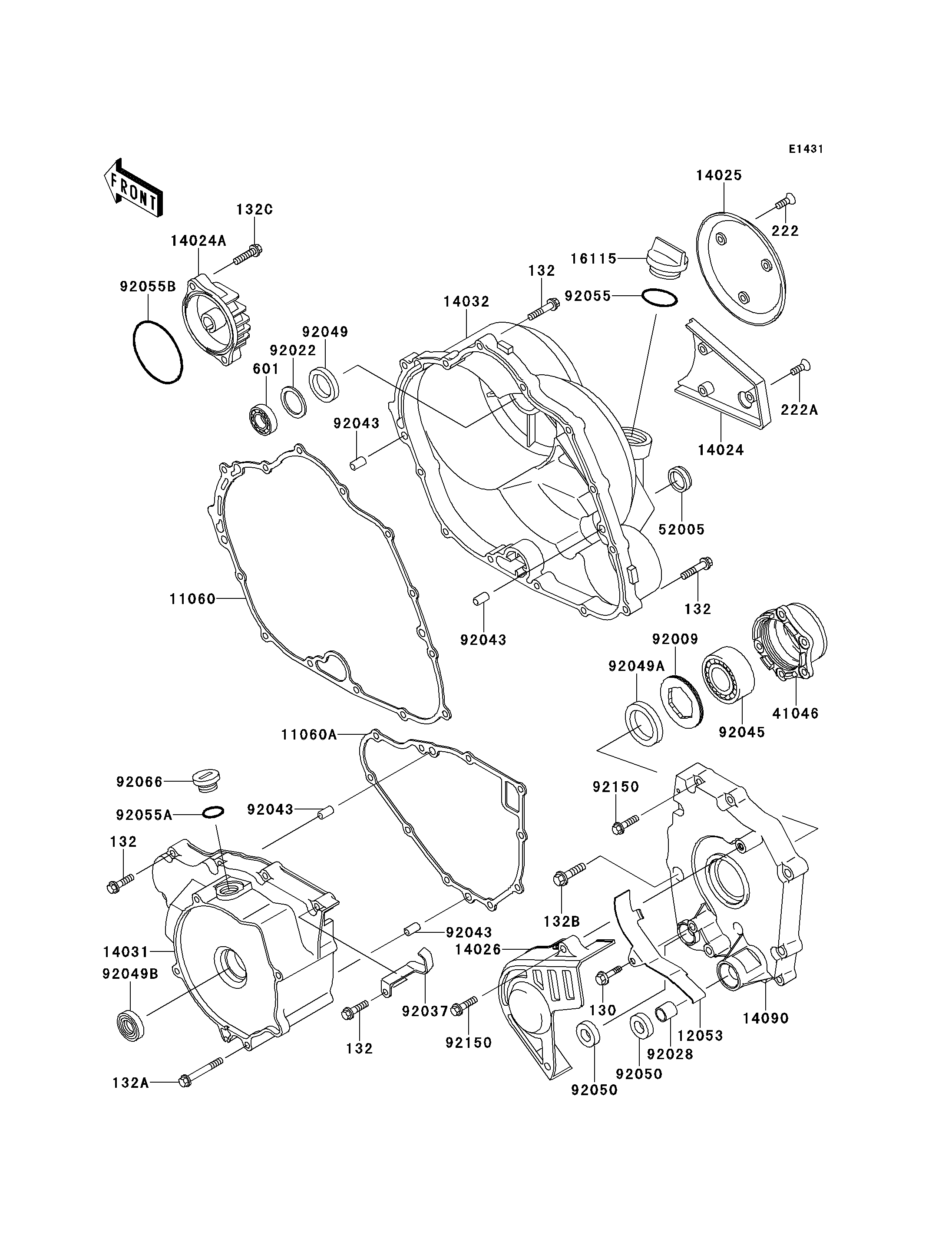

Parts Diagrams |
130
132
132
132
132
132A
132B
132C
222
222A
601
11060
11060A
12053
14024
14024A
14025
14026
14031
14032
14090
16115
41046
52005
92009
92022
92028
92037
92043
92043
92043
92043
92045
92049
92049A
92049B
92050
92050
92055
92055A
92055B
92066
92150
92150
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED | 130 | 130J0610 | 1 | ||
BOLT-FLANGED-SMALL | 132 | 132J0630 | 21 | ||
BOLT-FLANGED-SMALL | 132A | 132J0680 | 1 | ||
BOLT-FLANGED-SMALL | 132B | 132J0830 | 4 | ||
BOLT-FLANGED-SMALL | 132C | 132Y0625 | 2 | ||
SCREW-CSK-RD-CROS | 222 | 222C0512 | 3 | ||
SCREW-CSK-RD-CROS | 222A | 222C0518 | 3 | ||
BEARING-BALL,#6202C3 | 601 | 601B6202 | 1 | ||
GASKET,CLUTCH COVER | 11060 | 11060-1655 | 1 | ||
GASKET,GENERATOR COVER | 11060A | 11060-1656 | 1 | ||
GUIDE-CHAIN | 12053 | 12053-1345 | 1 | ||
COVER,RELEASE ADJUSTER | 14024 | 14024-1061 | 1 | ||
COVER,OIL FILTER | 14024A | 14024-1062 | 1 | ||
COVER | 14025 | 14025-1807 | 1 | ||
COVER-CHAIN | 14026 | 14026-1210 | 1 | ||
COVER-GENERATOR | 14031 | 14031-1339 | 1 | ||
COVER-CLUTCH | 14032 | 14032-1453 | 1 | ||
COVER,TRANSMISSION | 14090 | 14090-1756 | 1 | ||
CAP-OIL FILLER | 16115 | 16115-1009 | 1 | ||
HOUSING-BEARING,GEAR CASE,FR | 41046 | 41046-1098 | 1 | ||
GAUGE,OIL LEVEL | 52005 | 52005-1009 | 1 | ||
SCREW,55MM | 92009 | 92009-1384 | 1 | ||
WASHER,25.3X33X1 | 92022 | 92022-1109 | 1 | ||
BUSHING | 92028 | 92028-1347 | 1 | ||
CLAMP | 92037 | 92037-1872 | 1 | ||
PIN,6.2X8X14 | 92043 | 92043-1263 | 4 | ||
BEARING-BALL,5205 | 92045 | 92045-1221 | 1 | ||
SEAL-OIL,SCY 15X30X7 | 92049 | 92049-1158 | 1 | ||
SEAL-OIL,TC32457 | 92049A | 92049-1159 | 1 | ||
SEAL-OIL,TC25356 | 92049B | 92049-1317 | 1 | ||
SEAL-OIL | 92050 | 92050-082 | 2 | ||
RING-O,31.5X2.6 | 92055 | 92055-049 | 1 | ||
RING-O | 92055A | 92055-1146 | 1 | ||
RING-O,63.6X2.4 | 92055B | 92055-1433 | 1 | ||
PLUG,COVER | 92066 | 92066-1163 | 1 | ||
BOLT | 92150 | 92150-1915 | 9 |
