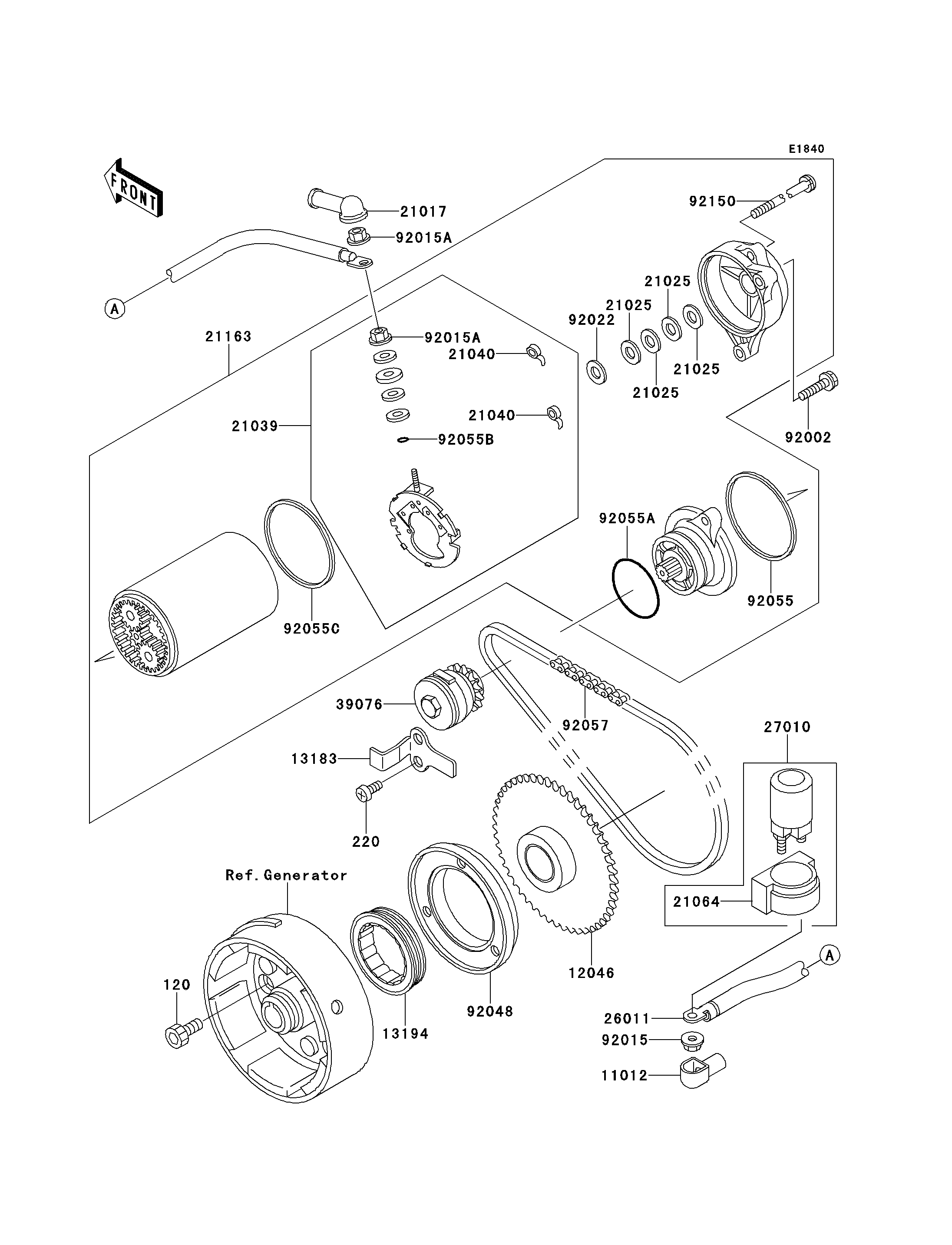

Parts Diagrams |
120
220
11012
12046
13183
13194
21017
21025
21025
21025
21025
21039
21040
21040
21064
21163
26011
27010
39076
92002
92015
92015A
92015A
92022
92048
92055
92055A
92055B
92055C
92057
92150
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-SOCKET | 120 | 120P0816 | 3 | ||
SCREW-PAN-CROS,6X12 | 220 | 220B0612 | 1 | ||
CAP,TERMINAL | 11012 | 11012-1354 | 1 | ||
SPROCKET,STARTER | 12046 | 12046-1077 | 1 | ||
PLATE,STARTER CHAIN | 13183 | 13183-1002 | 1 | ||
CLUTCH-ONEWAY | 13194 | 13194-1091 | 1 | ||
GROMMET,STARTER TERMINAL | 21017 | 21017-017 | 1 | ||
WASHER,9.1X18X0.2 | 21025 | 21025-011 | 4 | ||
BRUSH,CARBON | 21039 | 21039-1063 | 1 | ||
SPRING-BRUSH | 21040 | 21040-1057 | 2 | ||
DAMPER,MAGNETIC SWITCH | 21064 | 21064-002 | 1 | ||
STARTER-ELECTRIC | 21163 | 21163-1141 | 1 | ||
WIRE-LEAD,STARTER MOTOR | 26011 | 26011-1634 | 1 | ||
SWITCH,MAGNETIC | 27010 | 27010-1098 | 1 | ||
LIMITER,STARTER IDLE GEAR | 39076 | 39076-1054 | 1 | ||
BOLT | 92002 | 92002-1664 | 2 | ||
NUT,FLANGED,6MM | 92015 | 92015-1367 | 2 | ||
NUT,STARTER MOTOR | 92015A | 92015-1476 | 2 | ||
WASHER,9.1X18X0.8 | 92022 | 92022-1132 | 1 | ||
RACE,ONEWAY CLUTCH | 92048 | 92048-1095 | 1 | ||
RING-O,64MM | 92055 | 92055-1086 | 1 | ||
RING-O,42.8MM | 92055A | 92055-1313 | 1 | ||
RING-O,4.5X2.0 | 92055B | 92055-1370 | 1 | ||
RING-O,STARTER MOTOR | 92055C | 92055-1381 | 1 | ||
CHAIN,STARTER,KEC29H,64L | 92057 | 92057-1196 | 1 | ||
BOLT,STARTER MOTOR | 92150 | 92150-1138 | 2 |
