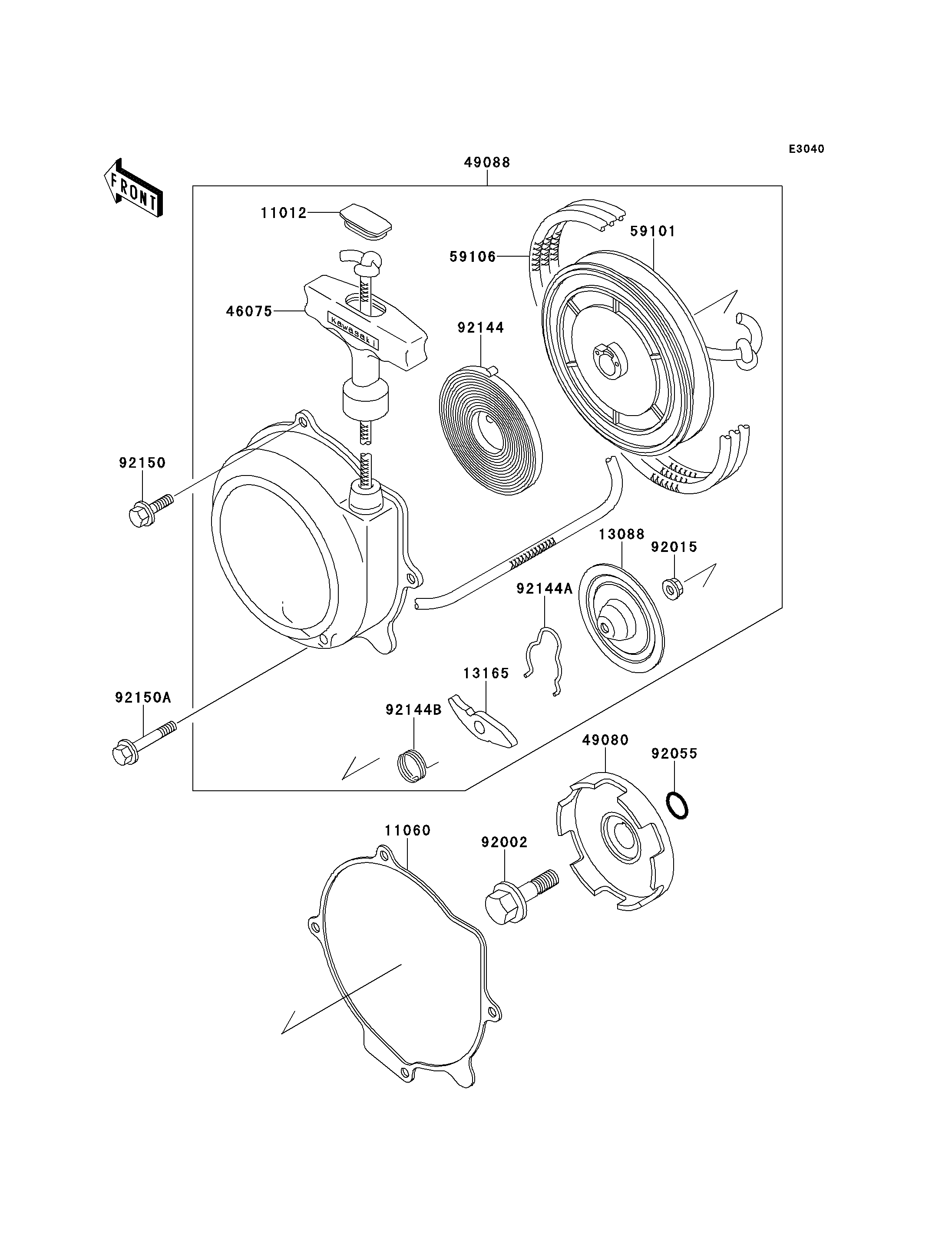

Parts Diagrams |
11012
11060
13088
13165
46075
49080
49088
59101
59106
92002
92015
92055
92144
92144A
92144B
92150
92150A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP,RECOIL GRIP | 11012 | 11012-1420 | 1 | ||
| GASKET,RECOIL STARTER | 11060 | 11060-1696 | 1 | ||
| PLATE-FRICTION,RECOIL | 13088 | 13088-1073 | 1 | ||
| PAWL,RECOIL | 13165 | 13165-1123 | 1 | ||
| GRIP,RECOIL | 46075 | 46075-1073 | 1 | ||
| PULLEY-STARTING | 49080 | 49080-1055 | 1 | ||
| STARTER-RECOIL | 49088 | 49088-1055 | 1 | ||
| REEL | 59101 | 59101-1109 | 1 | ||
| ROPE | 59106 | 59106-1103 | 1 | ||
| BOLT,FLANGED,10X40 | 92002 | 92002-1296 | 1 | ||
| NUT,6MM | 92015 | 92015-1464 | 1 | ||
| RING-O,16.8MM | 92055 | 92055-1235 | 1 | ||
| SPRING,RECOIL | 92144 | 92144-1205 | 1 | ||
| SPRING,FRICTION | 92144A | 92144-1206 | 1 | ||
| SPRING,RETURN | 92144B | 92144-1207 | 1 | ||
| BOLT | 92150 | 92150-1916 | 2 | ||
| BOLT | 92150A | 92150-1917 | 2 |
