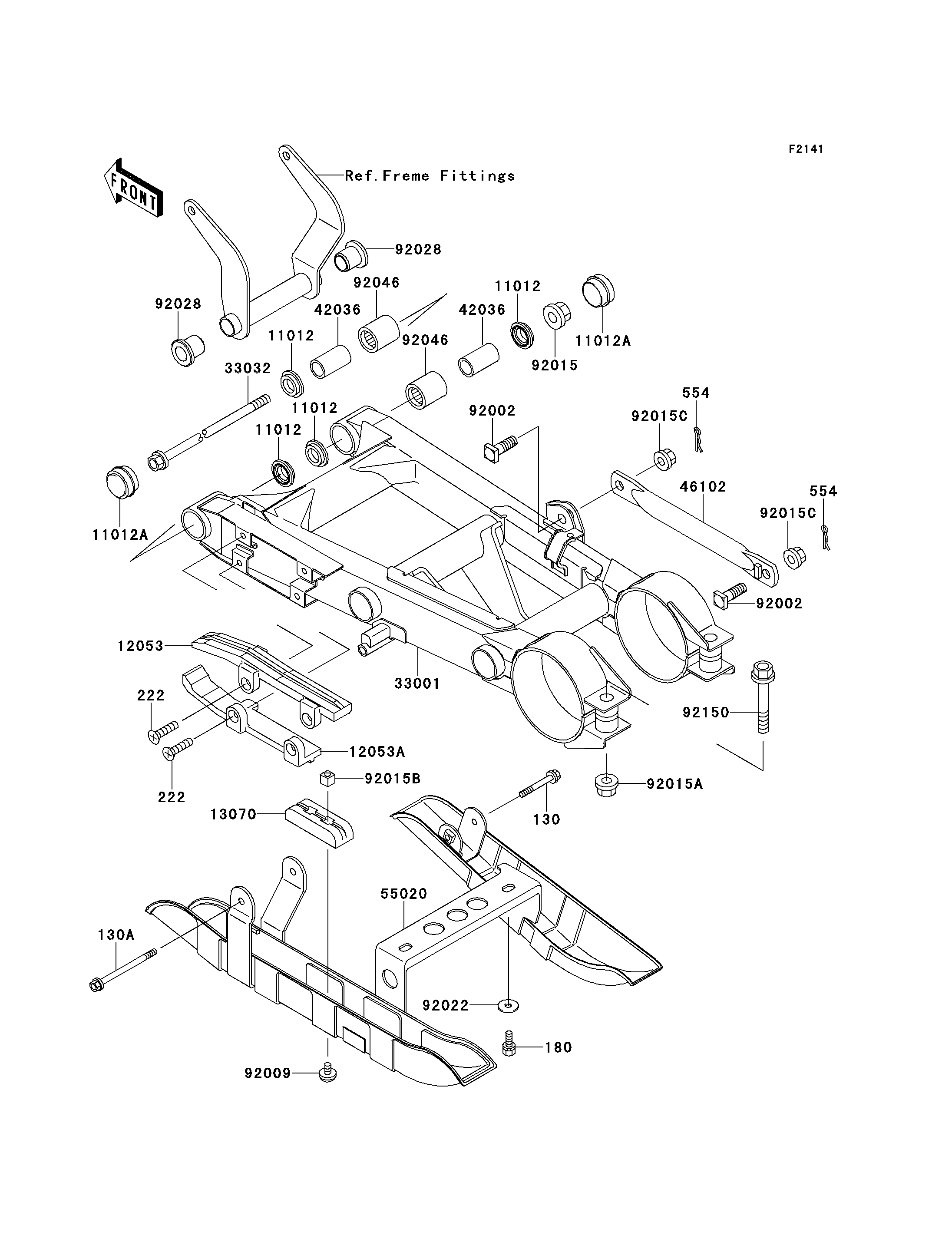

Parts Diagrams |
130
130A
180
222
222
554
554
11012
11012
11012
11012
11012A
11012A
12053
12053A
13070
33001
33032
42036
42036
46102
55020
92002
92002
92009
92015
92015A
92015B
92015C
92015C
92022
92028
92028
92046
92046
92150
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED,6X40 | 130 | 130G0640 | 1 | ||
BOLT-FLANGED | 130A | 130G0680 | 1 | ||
BOLT-UPSET-WS,6X14 | 180 | 180G0614 | 2 | ||
SCREW-CSK-RD-CROS,6X12 | 222 | 222B0612 | 4 | ||
PIN-SNAP,10MM | 554 | 554A1000 | 2 | ||
CAP,SWING ARM | 11012 | 11012-1259 | 4 | ||
CAP,SWING ARM | 11012A | 11012-1520 | 2 | ||
GUIDE-CHAIN,UPP | 12053 | 12053-1194 | 1 | ||
GUIDE-CHAIN,LWR | 12053A | 12053-1195 | 1 | ||
GUIDE,CHAIN | 13070 | 13070-1156 | 1 | ||
ARM-COMP-SWING,SILVER NO.40 | 33001 | 33001-1462-5A | 1 | ||
SHAFT-SWING ARM | 33032 | 33032-1139 | 1 | ||
SLEEVE,SWING ARM | 42036 | 42036-1064 | 2 | ||
ROD,TORQUE,SILVER NO.40 | 46102 | 46102-1342-5A | 1 | ||
GUARD,CHAIN&DICS,SILVER | 55020 | 55020-1583-5A | 1 | ||
BOLT,10X28 | 92002 | 92002-1733 | 2 | ||
SCREW,6X10,WHITE | 92009 | 92009-1286 | 2 | ||
NUT,14MM | 92015 | 92015-1407 | 1 | ||
NUT,12MM | 92015A | 92015-1426 | 2 | ||
NUT,6MM | 92015B | 92015-1452 | 2 | ||
NUT,LOCK,10MM | 92015C | 92015-1597 | 2 | ||
WASHER,6.5X20X1.6 | 92022 | 92022-1804 | 2 | ||
BUSHING,SWING ARM | 92028 | 92028-1261 | 2 | ||
BEARING-NEEDLE,TA2030Z | 92046 | 92046-1128 | 2 | ||
BOLT,FLANGED,12X62 | 92150 | 92150-1842 | 2 |
BOLT-FLANGED,6X40 | |
REF # | 130 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT-FLANGED | |
REF # | 130A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT-UPSET-WS,6X14 | |
REF # | 180 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW-CSK-RD-CROS,6X12 | |
REF # | 222 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
PIN-SNAP,10MM | |
REF # | 554 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CAP,SWING ARM | |
REF # | 11012 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
CAP,SWING ARM | |
REF # | 11012A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
GUIDE-CHAIN,UPP | |
REF # | 12053 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GUIDE-CHAIN,LWR | |
REF # | 12053A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GUIDE,CHAIN | |
REF # | 13070 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ARM-COMP-SWING,SILVER NO.40 | |
REF # | 33001 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SHAFT-SWING ARM | |
REF # | 33032 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SLEEVE,SWING ARM | |
REF # | 42036 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
ROD,TORQUE,SILVER NO.40 | |
REF # | 46102 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GUARD,CHAIN&DICS,SILVER | |
REF # | 55020 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,10X28 | |
REF # | 92002 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW,6X10,WHITE | |
REF # | 92009 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT,14MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,12MM | |
REF # | 92015A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT,6MM | |
REF # | 92015B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT,LOCK,10MM | |
REF # | 92015C |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER,6.5X20X1.6 | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BUSHING,SWING ARM | |
REF # | 92028 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BEARING-NEEDLE,TA2030Z | |
REF # | 92046 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,12X62 | |
REF # | 92150 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
