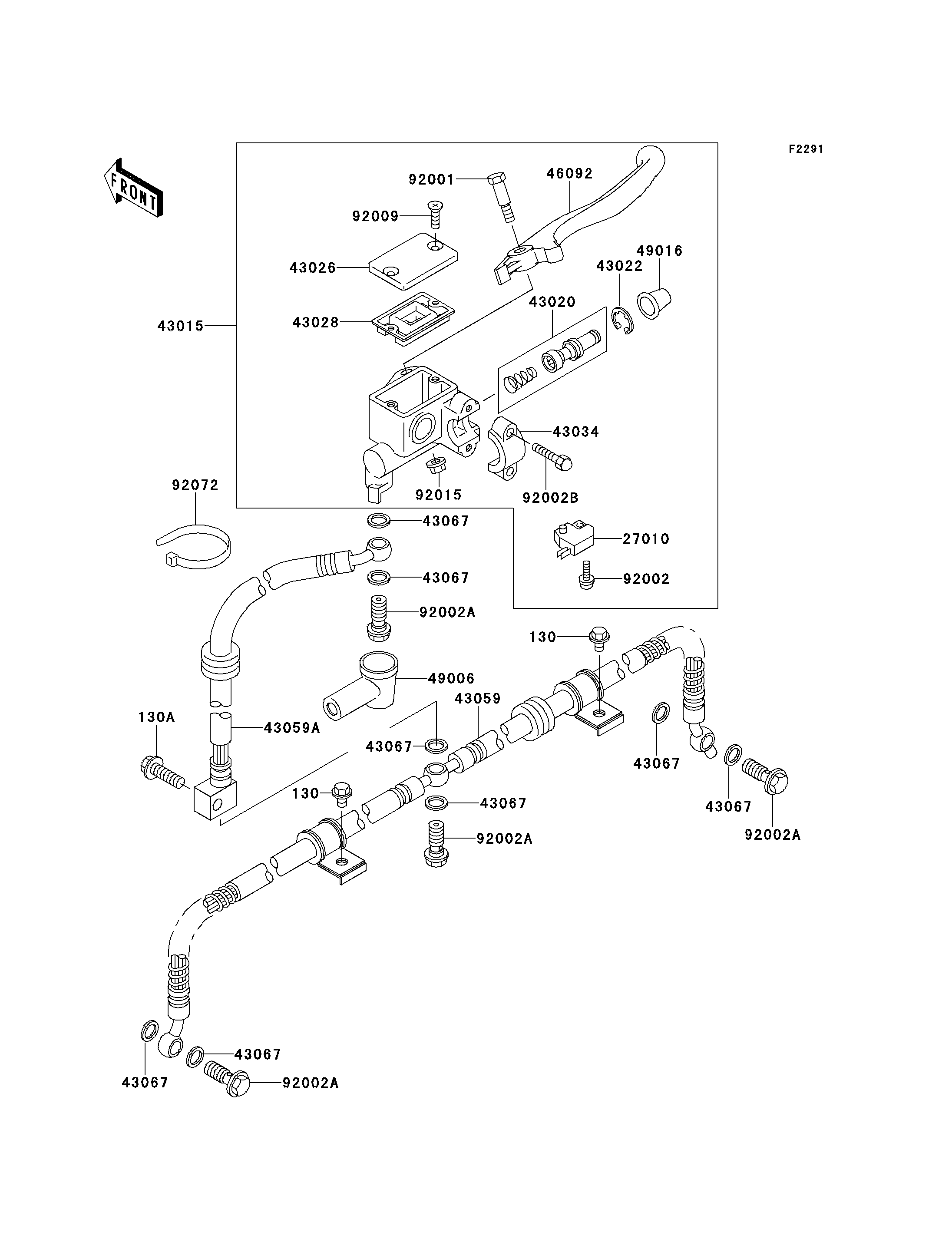

2000 Lakota 300 - Front Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
130
130
130A
27010
43015
43020
43022
43026
43028
43034
43059
43059A
43067
43067
43067
43067
43067
43067
43067
43067
46092
49006
49016
92001
92002
92002A
92002A
92002A
92002A
92002B
92009
92015
92072
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X10 130 130B0610 2
BOLT-FLANGED,8X25 130A 130B0825 1
SWITCH,BRAKE 27010 27010-1170 1
CYLINDER-ASSY-MASTER,FR 43015 43015-1646 1
PISTON-COMP-BRAKE,FR 43020 43020-1056 1
STOPPER-BRAKE,PISTON 43022 43022-1010 1
CAP-BRAKE 43026 43026-1074 1
DIAPHRAGM 43028 43028-1061 1
HOLDER-BRAKE,MASTER CYLINDER 43034 43034-1016 1
HOSE-BRAKE,FR 43059 43059-1875 1
HOSE-BRAKE,FR 43059A 43059-1876 1
WASHER,10.5X15X1.5 43067 43067-001 8
LEVER-GRIP,FRONT BRAKE 46092 46092-1208 1
BOOT,DUST 49006 49006-1040 1
COVER-SEAL,MASTER CYLINDER 49016 49016-1044 1
BOLT,FRONT BRAKE LEVER 92001 92001-1728 1
BOLT,SCREW,4X12 92002 92002-1323 1
BOLT,OIL,L=23 92002A 92002-1888 4
BOLT 92002B 92002-1894 2
SCREW,4MM 92009 92009-1458 2
NUT,FLANGED,6MM,BLACK 92015 92015-1233 1
BAND,L=149 92072 92072-031 1
