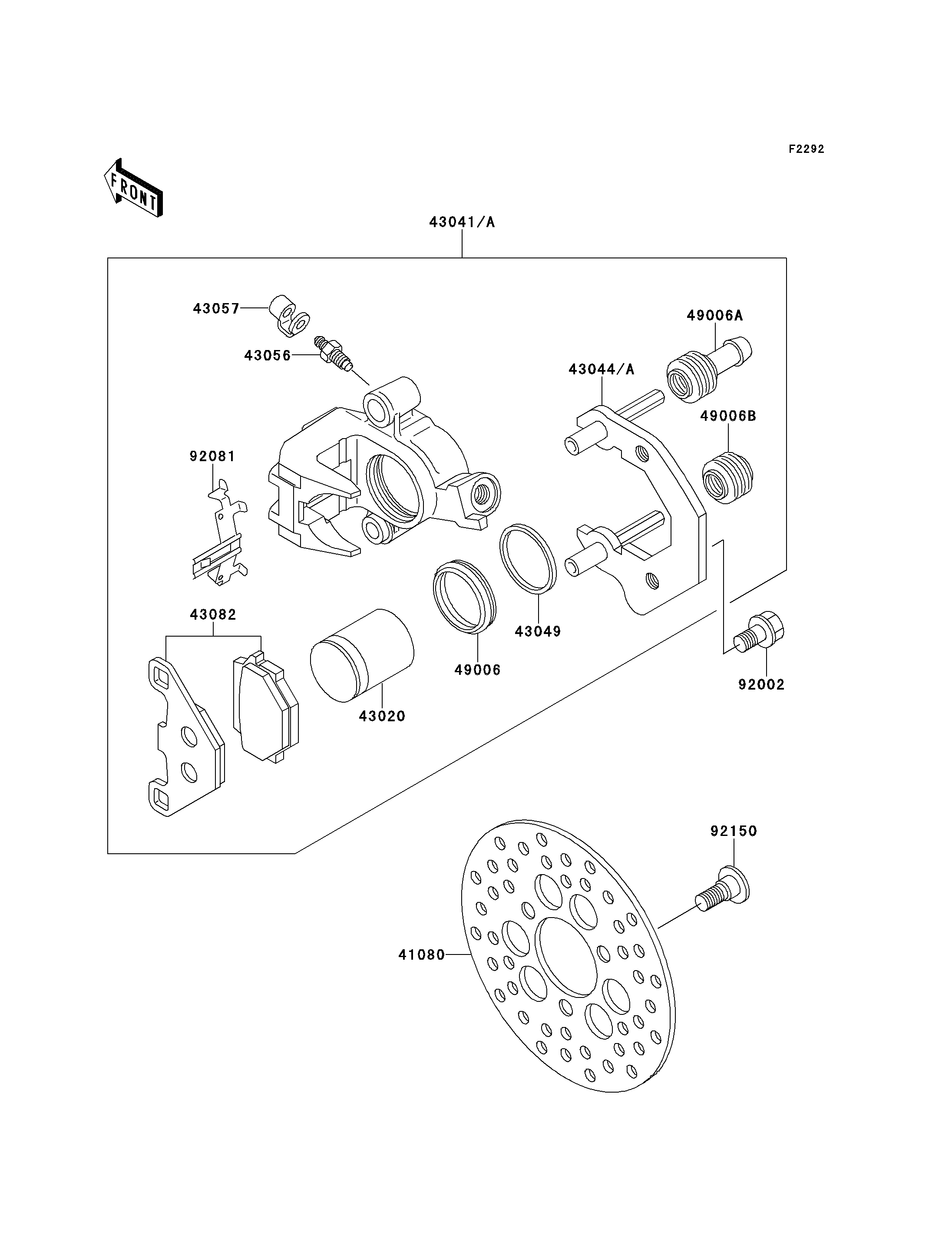

41080
43020
43041
43041A
43044
43044A
43049
43056
43057
43082
49006
49006A
49006B
92002
92081
92150
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
DISC,FR 41080 41080-1171 2
PISTON-COMP-BRAKE 43020 43020-1093 2
CALIPER-ASSY,FR,LH,ALUMITE 43041 43041-1724-GZ 1
CALIPER-ASSY,FR,RH,ALUMITE 43041A 43041-1725-GZ 1
HOLDER-COMP-CALIPER,FR,LH 43044 43044-1064 1
HOLDER-COMP-CALIPER,FR,RH 43044A 43044-1065 1
PACKING 43049 43049-1016 2
BREATHER-BRAKE 43056 43056-1054 2
CAP-BREATHER 43057 43057-003 2
PAD-ASSY-BRAKE 43082 43082-1067 2
BOOT,PISTON SEAL 49006 49006-1053 2
BOOT,CALIPER 49006A 49006-1054 2
BOOT,CALIPER 49006B 49006-1055 2
BOLT,FLANGED,8X13 92002 92002-1737 4
SPRING,PAD 92081 92081-1341 2
BOLT,SOCKET,8X20 92150 92150-1760 6
