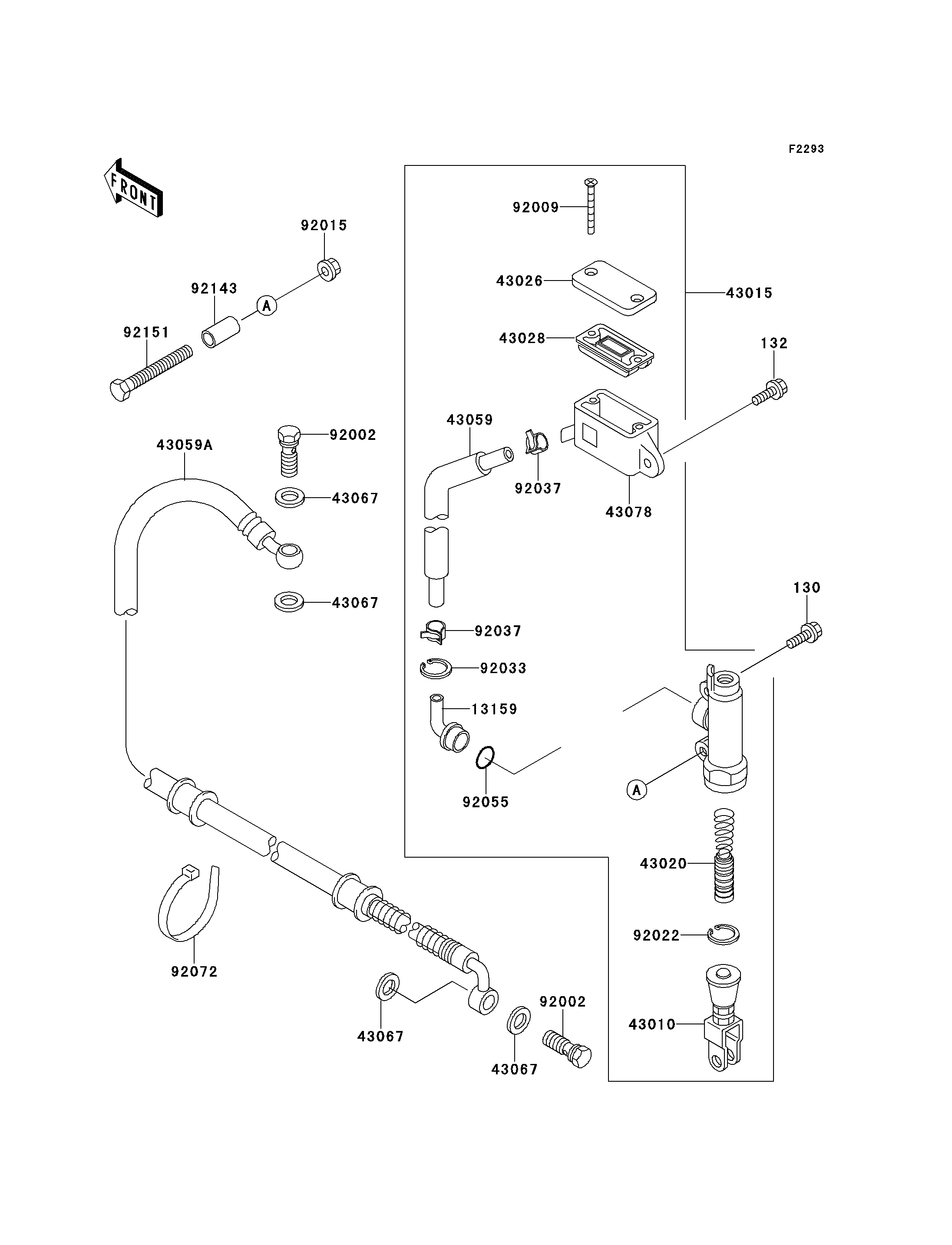

2000 Lakota 300 - Rear Master Cylinder
130
132
13159
43010
43015
43020
43026
43028
43059
43059A
43067
43067
43067
43067
43078
92002
92002
92009
92015
92022
92033
92037
92037
92055
92072
92143
92151
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED | 130 | 130S0814 | 1 | ||
BOLT-FLANGED-SMALL | 132 | 132G0614 | 1 | ||
CONNECTOR,RR MASTER CYLINDER | 13159 | 13159-1052 | 1 | ||
ROD-ASSY-BRAKE,RR | 43010 | 43010-1060 | 1 | ||
CYLINDER-ASSY-MASTER,RR | 43015 | 43015-1326 | 1 | ||
PISTON-COMP-BRAKE | 43020 | 43020-1063 | 1 | ||
CAP-BRAKE | 43026 | 43026-1022 | 1 | ||
DIAPHRAGM | 43028 | 43028-1061 | 1 | ||
HOSE-BRAKE,RR MASTER CYLINDER | 43059 | 43059-1369 | 1 | ||
HOSE-BRAKE,RR | 43059A | 43059-1877 | 1 | ||
WASHER,10.5X15X1.5 | 43067 | 43067-001 | 4 | ||
RESERVOIR | 43078 | 43078-1078 | 1 | ||
BOLT,OIL,L=23 | 92002 | 92002-1888 | 2 | ||
SCREW,5MM | 92009 | 92009-1409 | 2 | ||
NUT,8MM | 92015 | 92015-1432 | 1 | ||
WASHER,CIRCRIP | 92022 | 92022-1601 | 1 | ||
RING-SNAP,20.5MM | 92033 | 92033-1186 | 1 | ||
CLAMP,BRAKE HOSE | 92037 | 92037-1547 | 2 | ||
RING-O,MASTER CYLINDER | 92055 | 92055-1251 | 1 | ||
BAND,L=188 | 92072 | 92072-1239 | 1 | ||
COLLAR,8.8X12X22.5 | 92143 | 92143-1163 | 1 | ||
BOLT,8X55 | 92151 | 92151-1578 | 1 |
