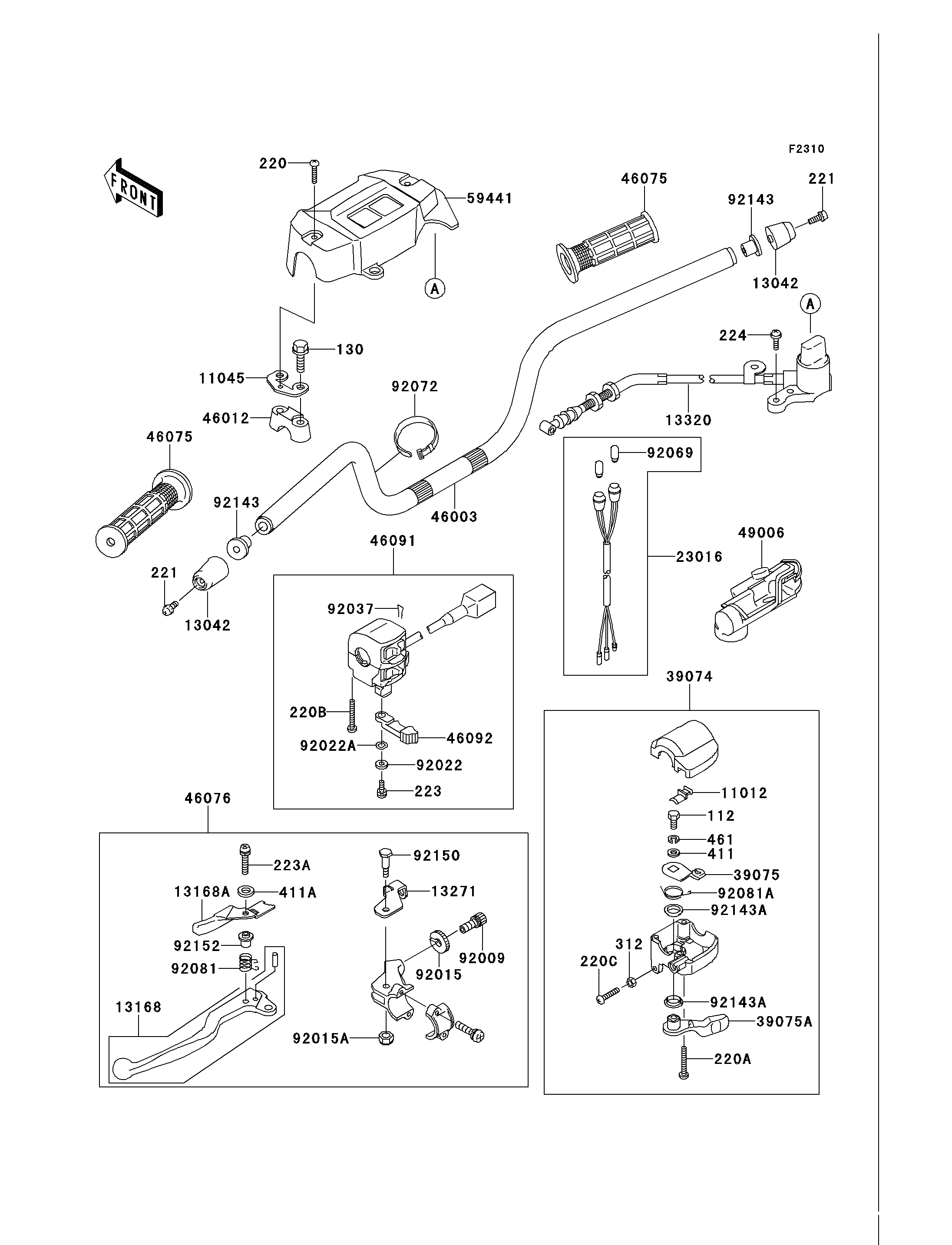

Parts Diagrams |
112
112
130
130
220
220
220A
220A
220B
220B
220C
220C
221
221
221
221
11012
11012
11045
11045
13042
13042
13042
13042
13168
13168
13168A
13168A
13271
13271
13320
13320
23016
23016
39074
39074
39075
39075
39075A
39075A
46003
46003
46012
46012
46075
46075
46075
46075
46076
46076
46091
46091
46092
46092
49006
49006
59441
59441
92009
92009
92015
92015
92015A
92015A
92022
92022
92022A
92022A
92037
92037
92069
92069
92072
92072
92081
92081
92081A
92081A
92143
92143
92143
92143
92143A
92143A
92143A
92143A
92150
92150
92152
92152
223
223
223A
223A
224
224
312
312
411
411
411A
411A
461
461
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-UPSET | 112 | 112D0614 | 1 | ||
BOLT-FLANGED | 130 | 130P0860 | 4 | ||
SCREW-PAN-CROS,4X20 | 220 | 220C0420 | 2 | ||
SCREW-PAN-CROS | 220A | 220C0530 | 2 | ||
SCREW-PAN-CROS | 220B | 220C0535 | 2 | ||
SCREW-PAN-CROS,6X30,BLACK | 220C | 220C0630 | 1 | ||
SCREW-CSK-CROS | 221 | 221C0650 | 2 | ||
CAP | 11012 | 11012-1425 | 1 | ||
BRACKET,HANDLE COVER | 11045 | 11045-1925 | 2 | ||
WEIGHT,HANDLE | 13042 | 13042-1005 | 2 | ||
LEVER,LH | 13168 | 13168-1672 | 1 | ||
LEVER,LOCK | 13168A | 13168-1673 | 1 | ||
PLATE,LOCK | 13271 | 13271-1259 | 1 | ||
LEVER-ASSY,REVERSE | 13320 | 13320-1010 | 1 | ||
LAMP-ASSY,NEUTRAL&REVERSE | 23016 | 23016-1083 | 1 | ||
LEVER-ASSY-THROTTLE | 39074 | 39074-1055 | 1 | ||
LEVER-THROTTLE,ARM | 39075 | 39075-1054 | 1 | ||
LEVER-THROTTLE | 39075A | 39075-1059 | 1 | ||
HANDLE,SILVER NO.40 | 46003 | 46003-1410-5A | 1 | ||
HOLDER-HANDLE | 46012 | 46012-1168 | 2 | ||
GRIP | 46075 | 46075-1056 | 2 | ||
LEVER-ASSY-GRIP,LH | 46076 | 46076-1224 | 1 | ||
HOUSING-ASSY-CONTROL,LH | 46091 | 46091-1462 | 1 | ||
LEVER-GRIP,CHOKE | 46092 | 46092-1149 | 1 | ||
BOOT,RH | 49006 | 49006-1338 | 1 | ||
COVER-HANDLE | 59441 | 59441-1111 | 1 | ||
SCREW,CABLE ADJUST,8MM | 92009 | 92009-1435 | 1 | ||
NUT,CABLE ADJUST LOCK,8MM | 92015 | 92015-1596 | 1 | ||
NUT | 92015A | 92015-1829 | 1 | ||
WASHER,5MM | 92022 | 92022-1837 | 1 | ||
WASHER,WAVE,5MM | 92022A | 92022-1838 | 1 | ||
CLAMP,CLIP | 92037 | 92037-1836 | 1 | ||
BULB,12V3W T-7 | 92069 | 92069-1020 | 2 | ||
BAND,L=149 | 92072 | 92072-031 | 1 | ||
SPRING,LOCK RETURN | 92081 | 92081-1358 | 1 | ||
SPRING | 92081A | 92081-1685 | 1 | ||
COLLAR,L=9.6 | 92143 | 92143-1016 | 2 | ||
COLLAR | 92143A | 92143-1138 | 2 | ||
BOLT | 92150 | 92150-1420 | 1 | ||
COLLAR | 92152 | 92152-1176 | 1 | ||
SCREW-PAN-WS-CROS | 223 | 223C0512 | 1 | ||
SCREW-PAN-WS-CROS | 223A | 223C0520 | 1 | ||
SCREW-PAN-WP-CROS,5X20 | 224 | 224B0520 | 2 | ||
NUT-HEX,6MM,BLACK | 312 | 312C0600 | 1 | ||
WASHER-PLAIN,6MM | 411 | 411E0600 | 1 | ||
WASHER-PLAIN,5MM,BLACK | 411A | 411F0500 | 1 | ||
WASHER-SPRING | 461 | 461L0600 | 1 |
BOLT-UPSET | |
REF # | 112 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT-FLANGED | |
REF # | 130 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
SCREW-PAN-CROS,4X20 | |
REF # | 220 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW-PAN-CROS | |
REF # | 220A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW-PAN-CROS | |
REF # | 220B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW-PAN-CROS,6X30,BLACK | |
REF # | 220C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW-CSK-CROS | |
REF # | 221 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CAP | |
REF # | 11012 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET,HANDLE COVER | |
REF # | 11045 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WEIGHT,HANDLE | |
REF # | 13042 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
LEVER,LH | |
REF # | 13168 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LEVER,LOCK | |
REF # | 13168A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLATE,LOCK | |
REF # | 13271 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LEVER-ASSY,REVERSE | |
REF # | 13320 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LAMP-ASSY,NEUTRAL&REVERSE | |
REF # | 23016 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LEVER-ASSY-THROTTLE | |
REF # | 39074 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LEVER-THROTTLE,ARM | |
REF # | 39075 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LEVER-THROTTLE | |
REF # | 39075A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HANDLE,SILVER NO.40 | |
REF # | 46003 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOLDER-HANDLE | |
REF # | 46012 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
GRIP | |
REF # | 46075 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
LEVER-ASSY-GRIP,LH | |
REF # | 46076 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOUSING-ASSY-CONTROL,LH | |
REF # | 46091 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LEVER-GRIP,CHOKE | |
REF # | 46092 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOOT,RH | |
REF # | 49006 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER-HANDLE | |
REF # | 59441 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW,CABLE ADJUST,8MM | |
REF # | 92009 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,CABLE ADJUST LOCK,8MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT | |
REF # | 92015A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,5MM | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,WAVE,5MM | |
REF # | 92022A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP,CLIP | |
REF # | 92037 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BULB,12V3W T-7 | |
REF # | 92069 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BAND,L=149 | |
REF # | 92072 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING,LOCK RETURN | |
REF # | 92081 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING | |
REF # | 92081A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COLLAR,L=9.6 | |
REF # | 92143 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
COLLAR | |
REF # | 92143A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT | |
REF # | 92150 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COLLAR | |
REF # | 92152 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW-PAN-WS-CROS | |
REF # | 223 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW-PAN-WS-CROS | |
REF # | 223A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW-PAN-WP-CROS,5X20 | |
REF # | 224 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT-HEX,6MM,BLACK | |
REF # | 312 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER-PLAIN,6MM | |
REF # | 411 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER-PLAIN,5MM,BLACK | |
REF # | 411A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER-SPRING | |
REF # | 461 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
