130
130
130A
130B
130B
130C
130C
183
55020
55020A
55020B
55020C
55020D
92015
92015
92075
92075

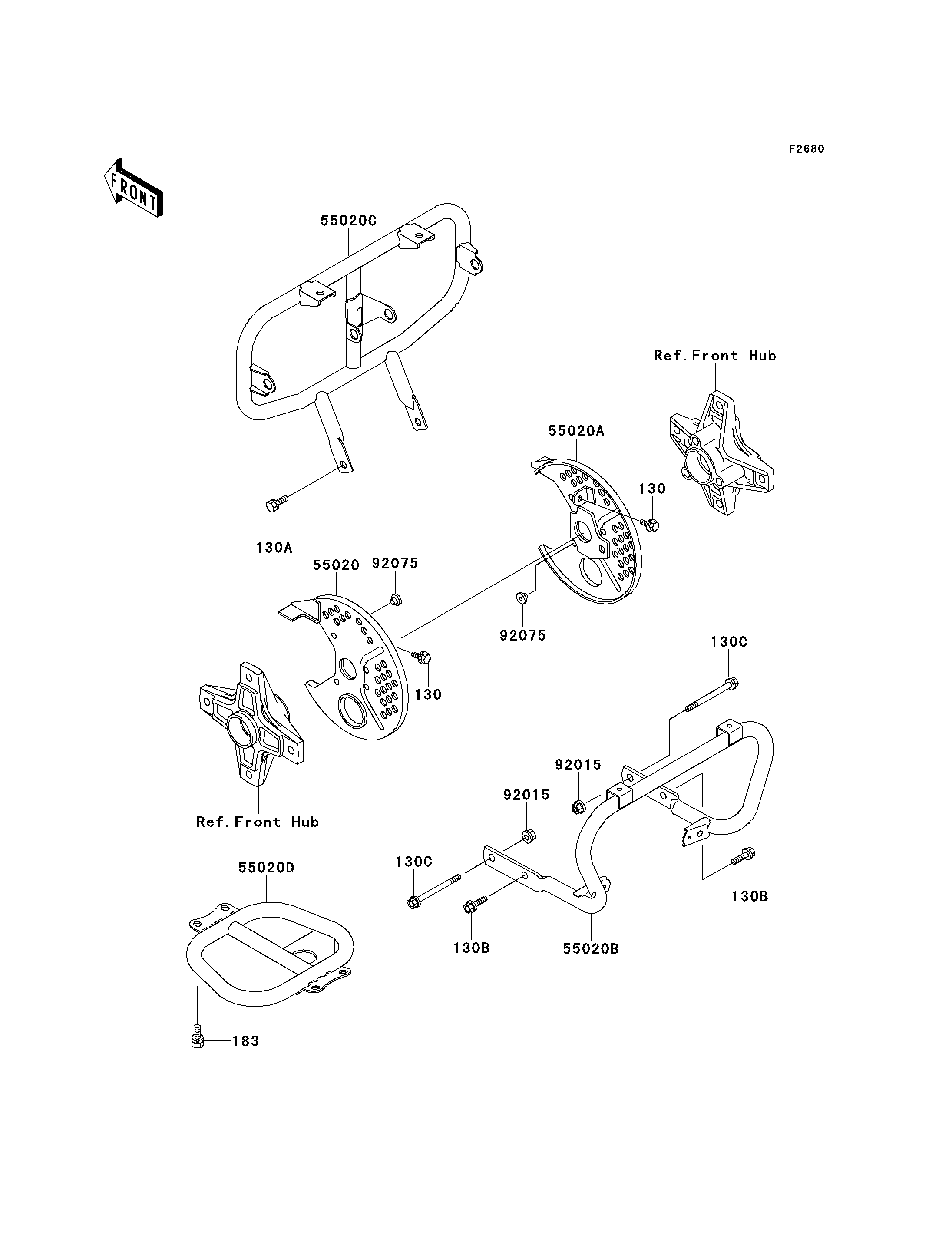

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X10 130 130B0610 2
BOLT-FLANGED,8X16 130A 130G0816 2
BOLT-FLANGED,8X20 130B 130G0820 2
BOLT-FLANGED 130C 130Z0865 2
BOLT-UPSET-WS-SMALL 183 183J0814 4
GUARD,FRONT HUB,INNER,LH 55020 55020-1223 1
GUARD,FRONT HUB,INNER,RH 55020A 55020-1224 1
GUARD,RR,SILVER NO.40 55020B 55020-1515-5A 1
GUARD,FRONT HEAD,SILVER NO.40 55020C 55020-1516-5A 1
GUARD,ENGINE,SILVER NO.40 55020D 55020-1517-5A 1
NUT,8MM 92015 92015-1432 2
DAMPER,INNER 92075 92075-1822 6
