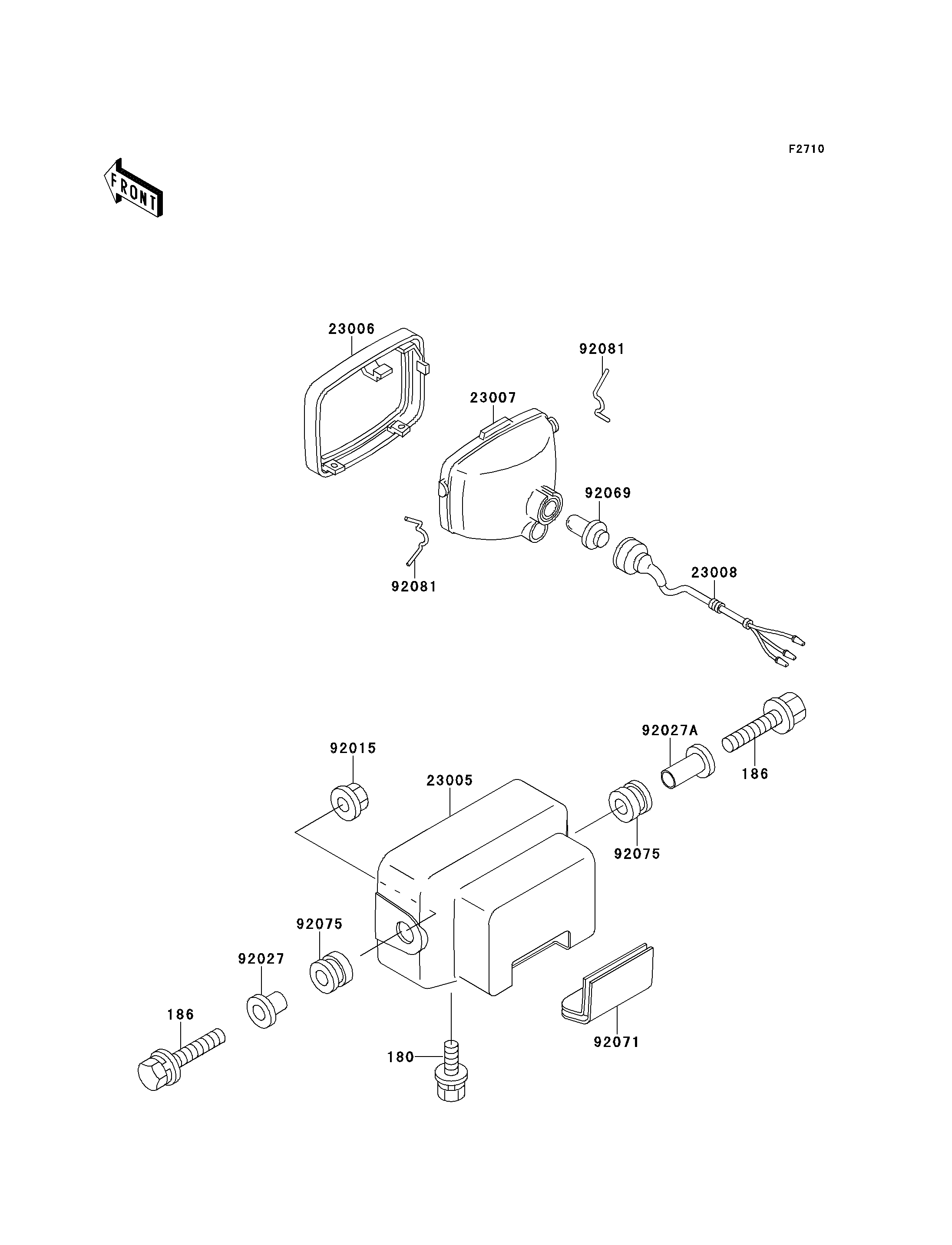

180
186
186
23005
23006
23007
23008
92015
92027
92027A
92069
92071
92075
92075
92081
92081
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-UPSET-WS 180 180C0512 4
BOLT-UPSET-WP 186 186B0630 4
BODY-COMP-HEAD LAMP,BLACK 23005 23005-1018-6Z 2
RIM-LAMP 23006 23006-1058 2
LENS-COMP,HEAD LAMP 23007 23007-1274 2
SOCKET-ASSY,HEAD LAMP 23008 23008-1357 2
NUT,FLANGED,6MM 92015 92015-1367 2
COLLAR,L=9.6 92027 92027-1045 2
COLLAR,L=13.1 92027A 92027-251 2
BULB,12V 25/25W 92069 92069-1010 2
GROMMET,HEAD LAMP 92071 92071-1205 2
DAMPER 92075 92075-277 4
SPRING 92081 92081-1421 4
