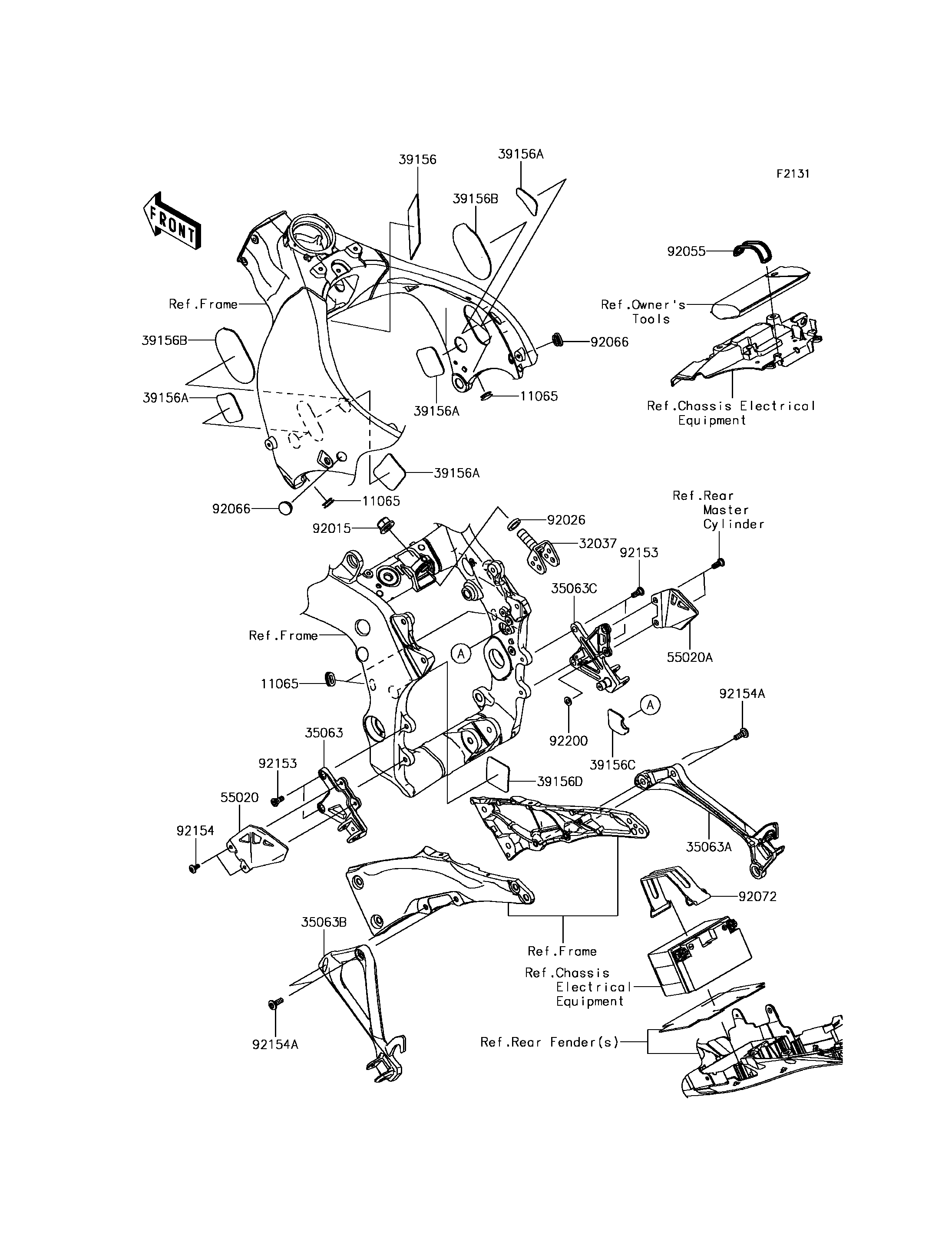

2017 Ninja ZX-10R ABS KRT Edition - Frame Fittings

DOWNLOAD PDF
SELECT A NEW PART
11065
11065
11065
32037
35063
35063A
35063B
35063C
39156
39156A
39156A
39156A
39156A
39156B
39156B
39156C
39156D
55020
55020A
92015
92026
92055
92066
92066
92072
92153
92153
92154
92154A
92154A
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11065 11065-0095 4
BRACKET-SHOCKABSORBER 32037 32037-0149 1
STAY,FR STEP,LH,F.S.BLACK 35063 35063-0697-18R 1
STAY,RR STEP,RH,F.S.BLACK 35063A 35063-0700-18R 1
STAY,RR STEP,LH,F.S.BLACK 35063B 35063-0852-18R 1
STAY,FR STEP,RH,F.S.BLACK 35063C 35063-1331-18R 1
PAD,50X115X2 39156 39156-0923 1
PAD,55X55X2 39156A 39156-1961 4
PAD,76X110X2 39156B 39156-1962 2
PAD,45X50.5X2 39156C 39156-1964 1
PAD,55.5X55.5X0.5 39156D 39156-2116 1
GUARD,FR STEP,LH 55020 55020-0569 1
GUARD,FR STEP,RH 55020A 55020-1944 1
NUT,FLANGED,16MM 92015 92015-1316 1
SPACER,16.5X26X5.2 92026 92026-0813 1
RING-O,54.6X5.7 92055 92055-0881 1
PLUG,17MM 92066 92066-1320 2
BAND,L=168 92072 92072-1306 1
BOLT,SOCKET,8X20 92153 92153-1621 4
BOLT,SOCKET,6X14 92154 92154-1735 2
BOLT,SOCKET,8X23 92154A 92154-1968 4
WASHER,8.4X16X1.6 92200 92200-0807 1
