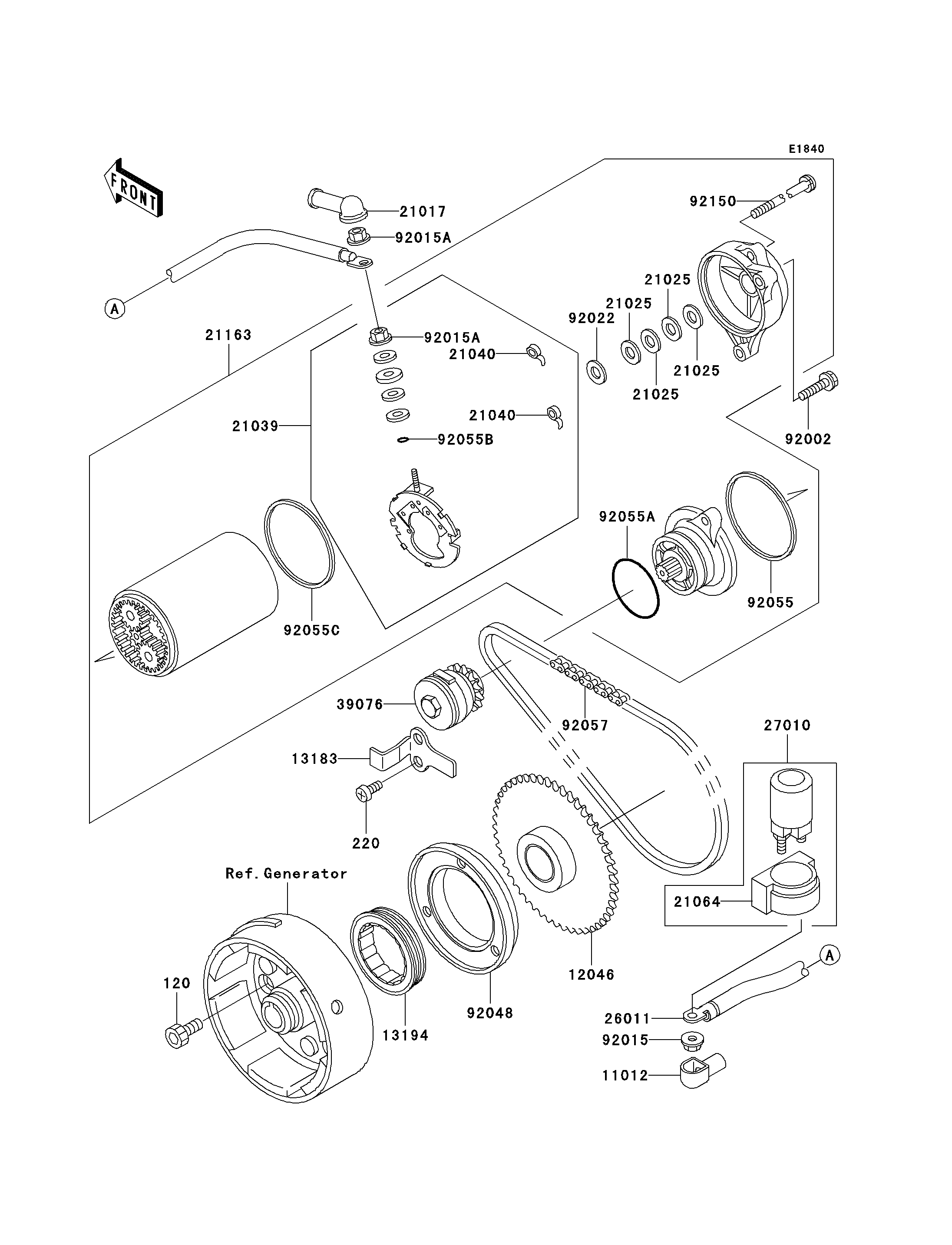

2001 Lakota Sport - Starter Motor

DOWNLOAD PDF
SELECT A NEW PART
120
220
11012
12046
13183
13194
21017
21025
21025
21025
21025
21039
21040
21040
21064
21163
26011
27010
39076
92002
92015
92015A
92015A
92022
92048
92055
92055A
92055B
92055C
92057
92150
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET 120 120P0816 3
SCREW-PAN-CROS,6X12 220 220B0612 1
CAP,TERMINAL 11012 11012-1354 1
SPROCKET,STARTER 12046 12046-1077 1
PLATE,STARTER CHAIN 13183 13183-1002 1
CLUTCH-ONEWAY 13194 13194-1091 1
GROMMET,STARTER TERMINAL 21017 21017-017 1
WASHER,9.1X18X0.2 21025 21025-011 4
BRUSH,CARBON 21039 21039-1063 1
SPRING-BRUSH 21040 21040-1057 2
DAMPER,MAGNETIC SWITCH 21064 21064-002 1
STARTER-ELECTRIC 21163 21163-1141 1
WIRE-LEAD,STARTER MOTOR 26011 26011-1634 1
SWITCH,MAGNETIC 27010 27010-1098 1
LIMITER,STARTER IDLE GEAR 39076 39076-1054 1
BOLT 92002 92002-1664 2
NUT,FLANGED,6MM 92015 92015-1367 2
NUT,STARTER MOTOR 92015A 92015-1476 2
WASHER,9.1X18X0.8 92022 92022-1132 1
RACE,ONEWAY CLUTCH 92048 92048-1095 1
RING-O,64MM 92055 92055-1086 1
RING-O,42.8MM 92055A 92055-1313 1
RING-O,4.5X2.0 92055B 92055-1370 1
RING-O,STARTER MOTOR 92055C 92055-1381 1
CHAIN,STARTER,KEC29H,64L 92057 92057-1196 1
BOLT,STARTER MOTOR 92150 92150-1138 2
