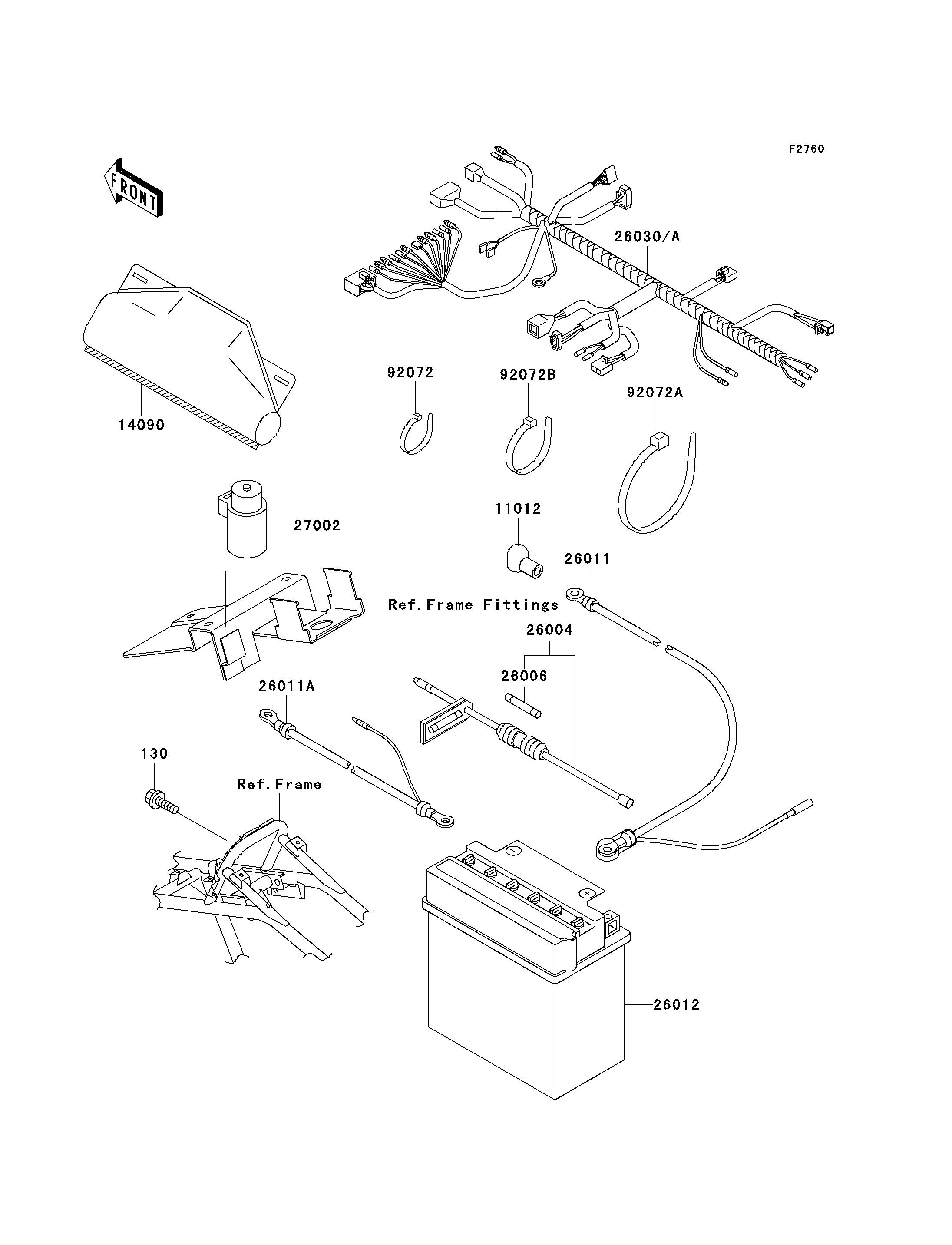

2001 Lakota Sport - Chassis Electrical Equipment

130
11012
14090
26004
26006
26011
26011A
26012
26030
27002
92072
92072A
92072B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X12 130 130B0612 1
CAP,TERMINAL 11012 11012-1354 1
COVER,COUPLER 14090 14090-1611 1
FUSE-ASSY 26004 26004-3715 1
FUSE,30A,L=30 26006 26006-1059 2
WIRE-LEAD,BATTERY(+) 26011 26011-1602 1
WIRE-LEAD,BATTERY(-) 26011A 26011-1782 1
BATTERY,YB14A-A2,12V 14AH 26012 26012-1388 1
HARNESS,MAIN 26030 26030-1796 1
RELAY-ASSY 27002 27002-1095 1
BAND,L=149 92072 92072-031 2
BAND,L=365 92072A 92072-1197 1
BAND,L=188 92072B 92072-1239 18
