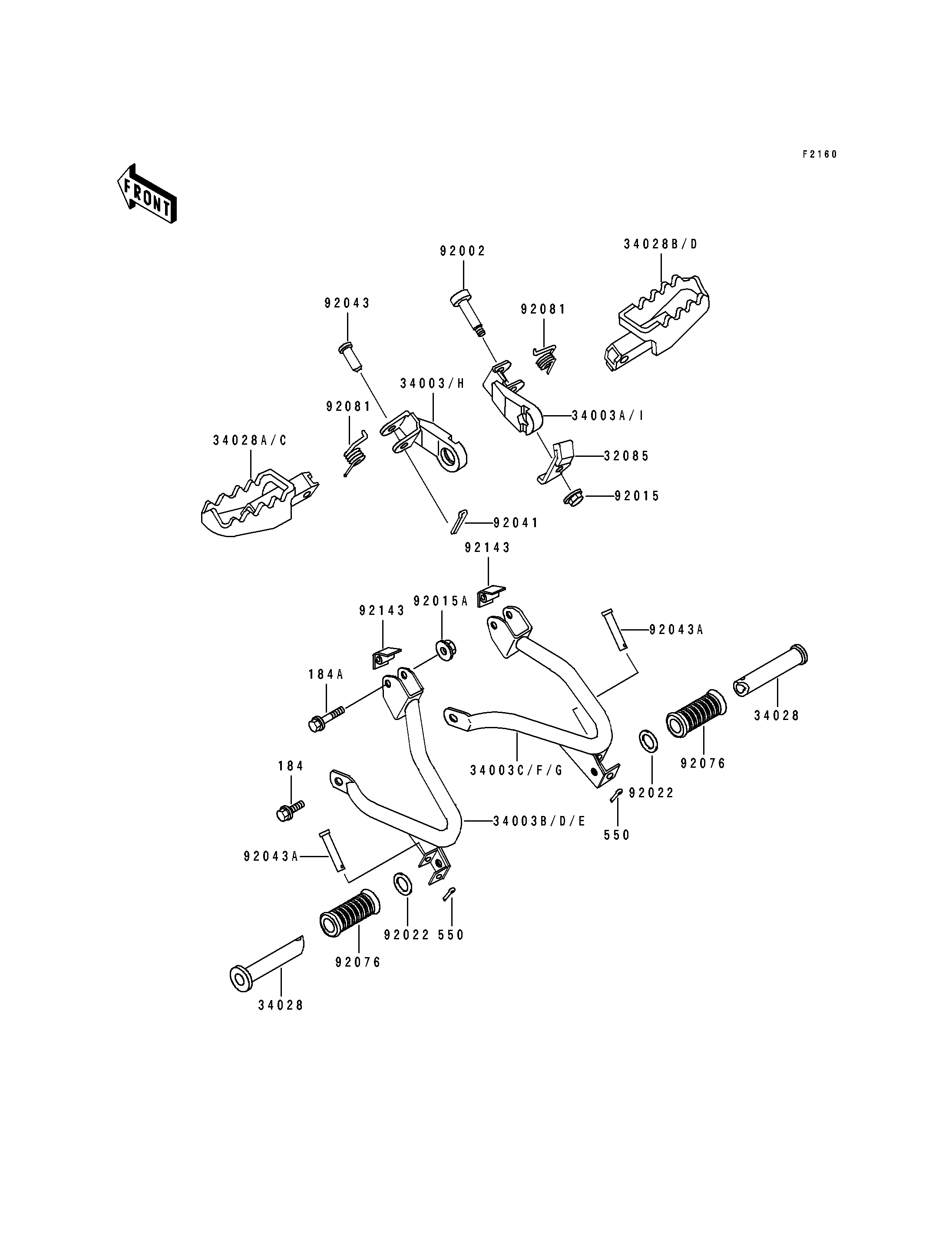

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
STOPPER,KICK PEDAL | 32085 | 32085-1178 | 1 | ||
HOLDER-STEP,RR,LH,VIOLET | 34003E | 34003-1396-45 | 1 | ||
HOLDER-STEP,RR,RH,VIOLET | 34003G | 34003-1397-45 | 1 | ||
HOLDER-STEP,FR,LH | 34003H | 34003-1399 | 1 | ||
HOLDER-STEP,FR,RH | 34003I | 34003-1400 | 1 | ||
STEP,RR | 34028 | 34028-009 | 2 | ||
STEP,FR,LH | 34028C | 34028-1378 | 1 | ||
STEP,FR,RH | 34028D | 34028-1379 | 1 | ||
BOLT,6MM | 92002 | 92002-1193 | 1 | ||
NUT,FLANGED,6MM | 92015 | 92015-1367 | 1 | ||
NUT,FLANGED,8MM | 92015A | 92015-1406 | 2 | ||
WASHER,20X30X2.3 | 92022 | 92022-1568 | 2 | ||
COTTER,2.5X15 | 92041 | 92041-1051 | 1 | ||
PIN,8X31 | 92043 | 92043-080 | 1 | ||
PIN,6X28 | 92043A | 92043-1464 | 2 | ||
DAMPER | 92076 | 92076-020 | 2 | ||
SPRING,STEP | 92081 | 92081-1133 | 2 | ||
COLLAR,STEP HOLDER | 92143 | 92143-1080 | 2 | ||
BOLT-UPSET-WP-SMALL | 184 | 184N0818 | 2 | ||
BOLT-UPSET-WP-SMALL | 184A | 184N0840 | 2 | ||
PIN-COTTER,2.0X15 | 550 | 550D2015 | 2 |
