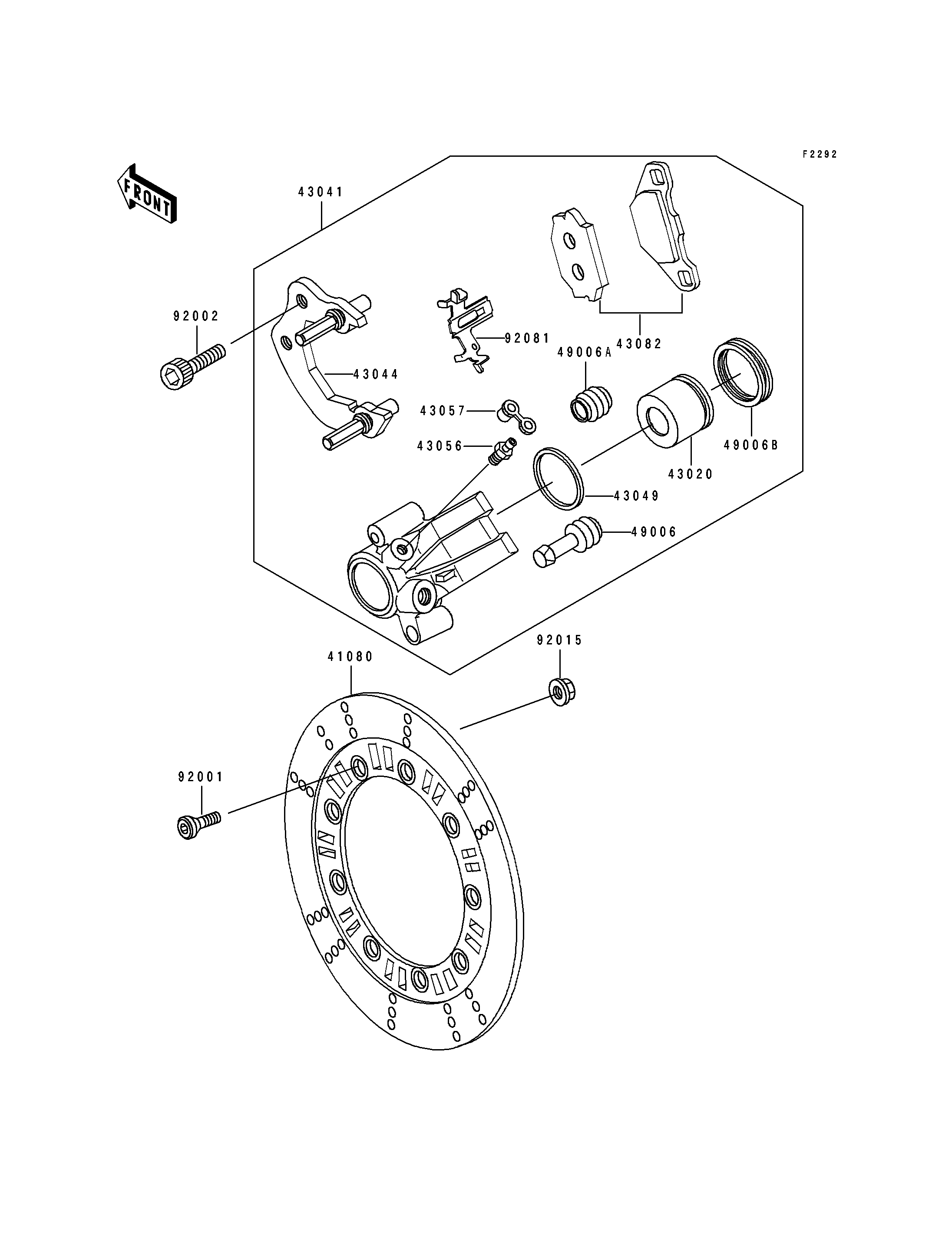

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
DISC,FR,SILVER 41080 41080-1145 1
PISTON-COMP-BRAKE 43020 43020-1082 1
CALIPER-ASSY,FR,LH,BLACK 43041 43041-1468-DJ 1
HOLDER-COMP-CALIPER,FR,LH 43044 43044-1027 1
PACKING,PISTON SEAL 43049 43049-1026 1
BREATHER-BRAKE 43056 43056-1054 1
CAP-BREATHER 43057 43057-003 1
PAD-ASSY-BRAKE,FR 43082 43082-1056 1
BOOT,CALIPER 49006 49006-1054 1
BOOT,CALIPER 49006A 49006-1055 1
BOOT,PISTON 49006B 49006-1091 1
BOLT,DISC PLATE,6X16 92001 92001-1987 9
BOLT,SOCKET,8X20 92002 92002-1178 2
NUT,LOCK,FLANGED,6MM 92015 92015-1339 9
SPRING,PAD 92081 92081-1341 1
