Part Item Information

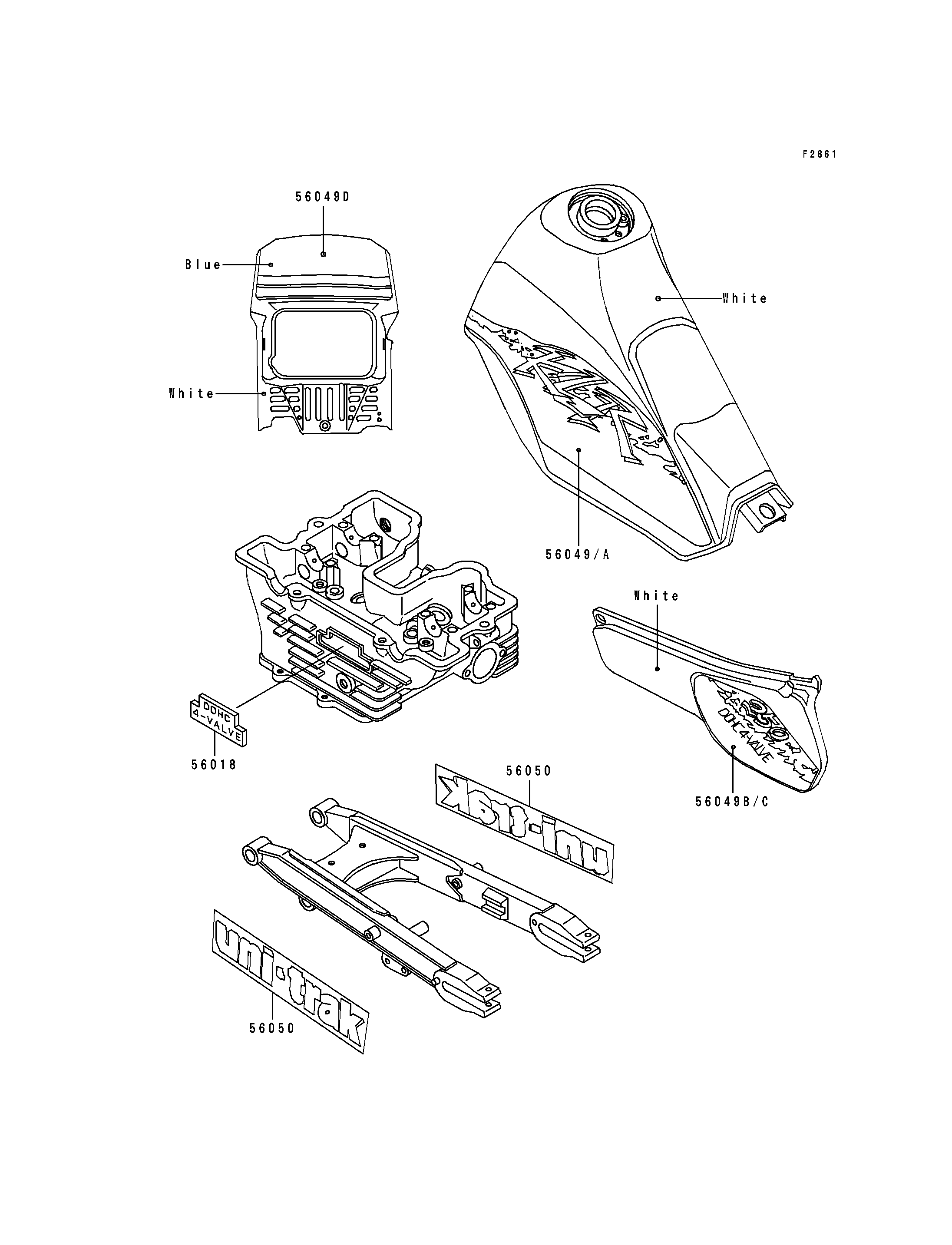

ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,CYLINDER HEAD 56018 56018-1483 1
PATTERN,FUEL TANK,LH 56049 56049-1793 1
PATTERN,FUEL TANK,RH 56049A 56049-1794 1
PATTERN,SIDE COVER,LH 56049B 56049-1795 1
PATTERN,SIDE COVER,RH 56049C 56049-1796 1
PATTERN,HEAD LAMP COVER 56049D 56049-1797 1
MARK,SWING ARM,UNI-TRAK 56050 56050-1426 2
