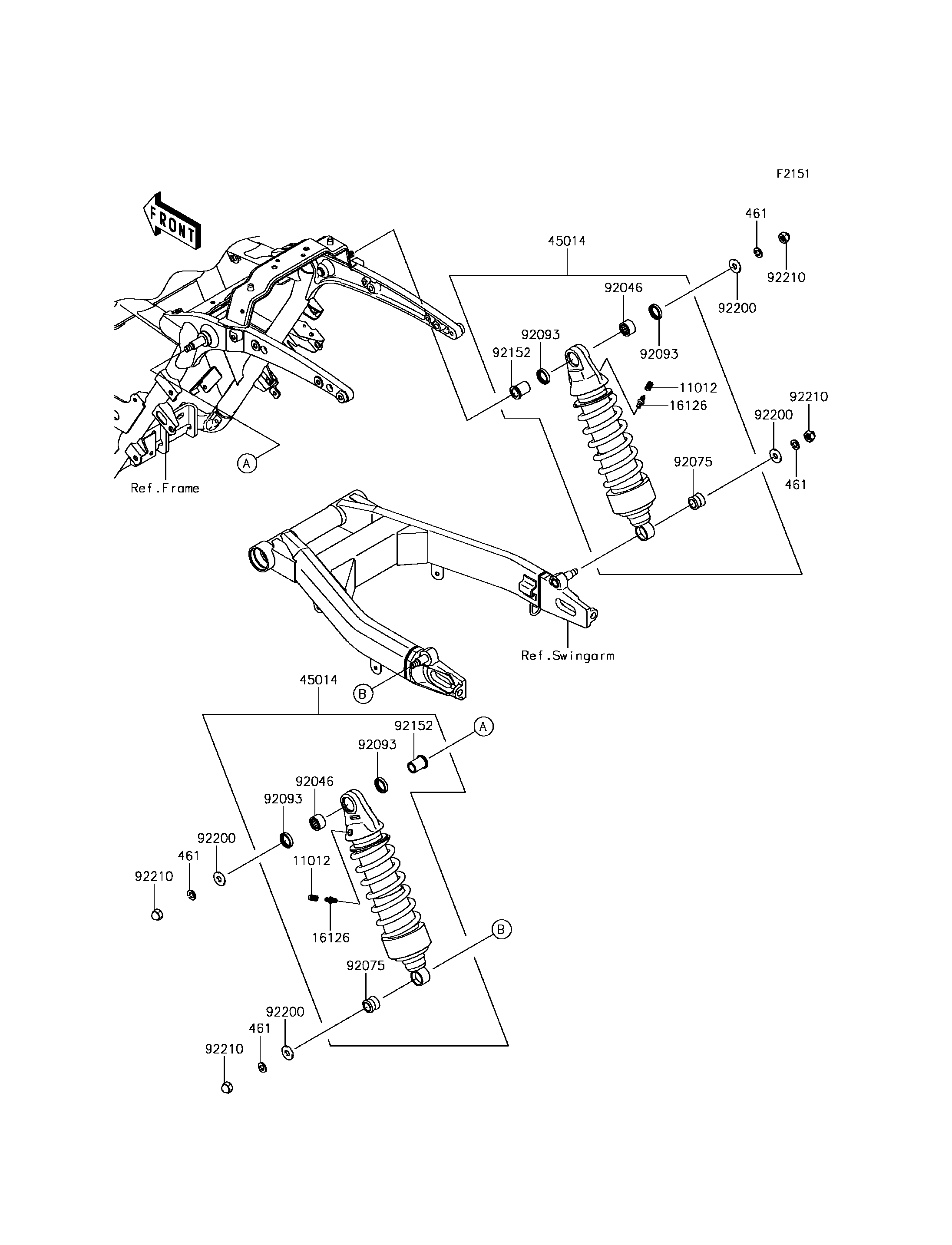

2015 Vulcan 1700 Voyager ABS - Suspension/Shock Absorber
461
461
461
461
11012
11012
16126
16126
45014
45014
92046
92046
92075
92075
92093
92093
92093
92093
92152
92152
92200
92200
92200
92200
92210
92210
92210
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| WASHER-SPRING,10MM | 461 | 461S1000 | 4 | ||
| CAP | 11012 | 11012-1283 | 2 | ||
| VALVE,AIR | 16126 | 16126-0013 | 2 | ||
| SHOCKABSORBER | 45014 | 45014-0208 | 2 | ||
| BEARING-NEEDLE | 92046 | 92046-1296 | 2 | ||
| DAMPER,SHOCKABSORBER | 92075 | 92075-1387 | 2 | ||
| SEAL | 92093 | 92093-1552 | 4 | ||
| COLLAR | 92152 | 92152-1336 | 2 | ||
| WASHER,10.5X26X2.5 | 92200 | 92200-1565 | 4 | ||
| NUT,CAP,10MM | 92210 | 92210-1128 | 4 |
