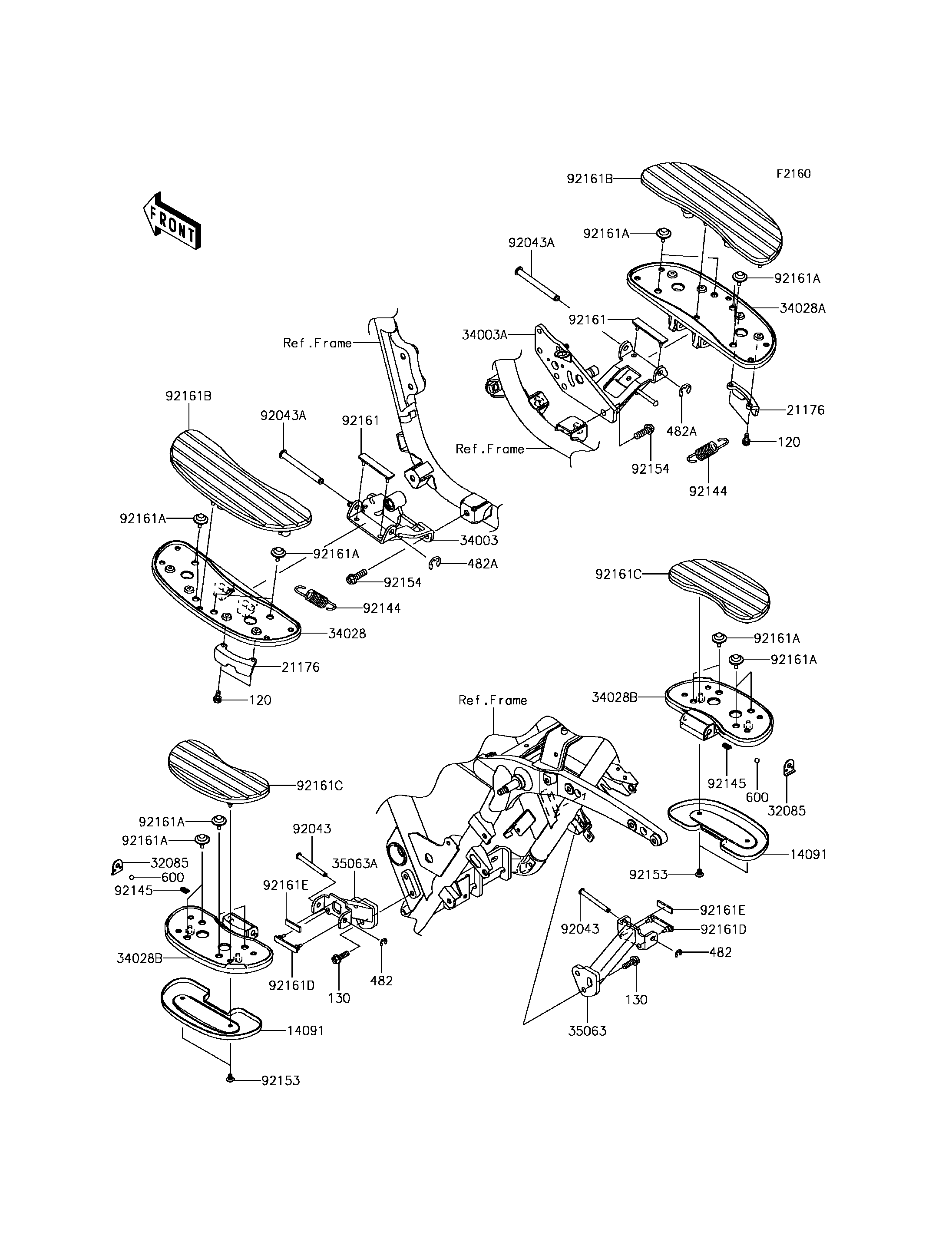

2015 Vulcan 1700 Voyager ABS - Footrests
120
120
130
130
482
482
482A
482A
600
600
14091
14091
21176
21176
32085
32085
34003
34003A
34028
34028A
34028B
34028B
35063
35063A
92043
92043
92043A
92043A
92144
92144
92145
92145
92153
92153
92154
92154
92161
92161
92161A
92161A
92161A
92161A
92161A
92161A
92161A
92161A
92161B
92161B
92161C
92161C
92161D
92161D
92161E
92161E
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-SOCKET,6X16 | 120 | 120CB0616 | 4 | ||
BOLT-FLANGED,8X25 | 130 | 130BB0825 | 4 | ||
CIRCLIP-TYPE-E | 482 | 482EA7000 | 2 | ||
CIRCLIP-TYPE-E,8MM | 482A | 482EA8000 | 2 | ||
BALL-STEEL,1/4 | 600 | 600A0800 | 2 | ||
COVER,REAR STEP | 14091 | 14091-1808 | 2 | ||
SENSOR,BANK | 21176 | 21176-0123 | 2 | ||
STOPPER,REAR STEP | 32085 | 32085-0045 | 2 | ||
HOLDER-STEP,FR,LH,F.S.BLACK | 34003 | 34003-0102-18R | 1 | ||
HOLDER-STEP,FR,RH,F.S.BLACK | 34003A | 34003-0103-18R | 1 | ||
STEP,FR,LH | 34028 | 34028-0143 | 1 | ||
STEP,FR,RH | 34028A | 34028-0144 | 1 | ||
STEP,RR | 34028B | 34028-0145 | 2 | ||
STAY,RR,RH,F.S.BLACK | 35063 | 35063-0649-18R | 1 | ||
STAY,RR,LH,F.S.BLACK | 35063A | 35063-0669-18R | 1 | ||
PIN,8X76.5 | 92043 | 92043-0054 | 2 | ||
PIN,10X98.5 | 92043A | 92043-1707 | 2 | ||
SPRING | 92144 | 92144-1266 | 2 | ||
SPRING | 92145 | 92145-1319 | 2 | ||
BOLT,SOCKET,6X10 | 92153 | 92153-1096 | 4 | ||
BOLT,FLANGED,10X30 | 92154 | 92154-0284 | 4 | ||
DAMPER,STEP HOLDER | 92161 | 92161-0746 | 2 | ||
DAMPER,STEP | 92161A | 92161-0766 | 16 | ||
DAMPER,FOOT BOARD | 92161B | 92161-0770 | 2 | ||
DAMPER,REAR STEP | 92161C | 92161-0771 | 2 | ||
DAMPER,REAR STEP | 92161D | 92161-0772 | 2 | ||
DAMPER,10X35X3 | 92161E | 92161-0840 | 2 |
