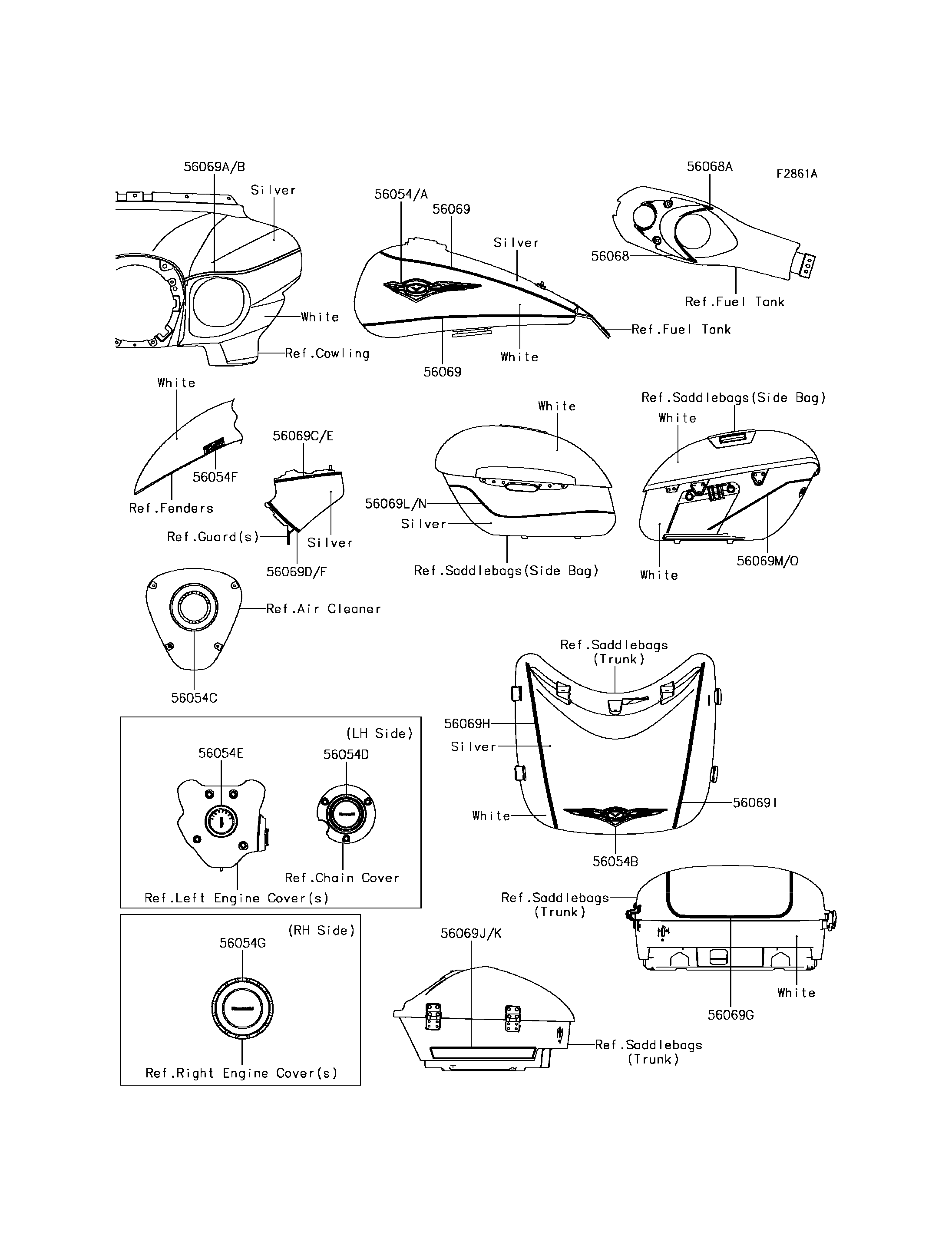

2013 VULCAN® 1700 VOYAGER® ABS - Decals(White/Silver)(BDF)

DOWNLOAD PDF
SELECT A NEW PART
56054
56054A
56054B
56054C
56054D
56054E
56054F
56054G
56068
56068A
56069
56069
56069A
56069B
56069C
56069D
56069E
56069F
56069G
56069H
56069I
56069J
56069K
56069L
56069M
56069N
56069O
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,FUEL TANK,LH 56054 56054-0300 1
MARK,FUEL TANK,RH 56054A 56054-0301 1
MARK,REAR TRUNK 56054B 56054-0302 1
MARK,AIR CLEANER COVER 56054C 56054-0303 2
MARK,PULLEY COVER 56054D 56054-0304 1
MARK,GENERATOR COVER 56054E 56054-0305 1
MARK,FR FENDER,ABS 56054F 56054-0455 2
MARK,CLUTCH COVER 56054G 56054-0463 1
PATTERN,TANK COVER,UPP 56068 56068-1881 1
PATTERN,TANK COVER,LWR 56068A 56068-1882 1
PATTERN,FUEL TANK 56069 56069-2542 4
PATTERN,FR COWLING,LH 56069A 56069-2543 1
PATTERN,FR COWLING,RH 56069B 56069-2544 1
PATTERN,LEG SHIELD,UPP,LH 56069C 56069-2545 1
PATTERN,LEG SHIELD,LWR,LH 56069D 56069-2546 1
PATTERN,LEG SHIELD,UPP,RH 56069E 56069-2547 1
PATTERN,LEG SHIELD,LWR,RH 56069F 56069-2548 1
PATTERN,RR TRUNK,UPP 56069G 56069-2549 1
PATTERN,RR TRUNK,UPP,LH 56069H 56069-2550 1
PATTERN,RR TRUNK,UPP,RH 56069I 56069-2551 1
PATTERN,RR TRUNK,LWR,LH 56069J 56069-2552 1
PATTERN,RR TRUNK,LWR,RH 56069K 56069-2553 1
PATTERN,SIDE BAG,FR,LH 56069L 56069-2554 1
PATTERN,SIDE BAG,RR,LH 56069M 56069-2555 1
PATTERN,SIDE BAG,FR,RH 56069N 56069-2556 1
PATTERN,SIDE BAG,RR,RH 56069O 56069-2557 1
