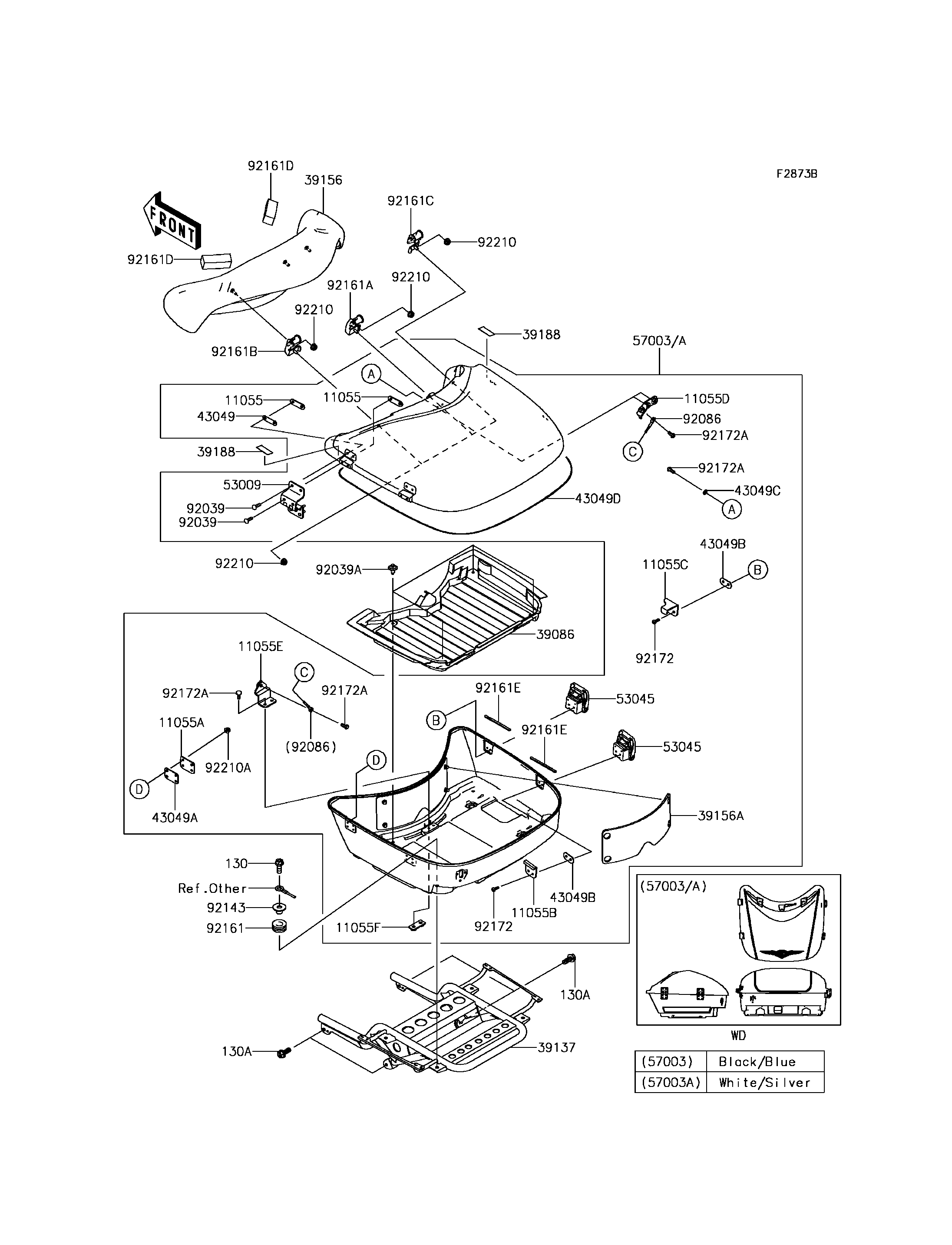

2013 VULCAN® 1700 VOYAGER® ABS - Saddlebags(Trunk)(BDF)

DOWNLOAD PDF
SELECT A NEW PART
130
130A
130A
11055
11055
11055A
11055B
11055C
11055D
11055E
11055F
39086
39137
39156
39156A
39188
39188
43049
43049A
43049B
43049B
43049C
43049D
53009
53045
53045
57003
57003A
92039
92039
92039A
92086
92143
92161
92161A
92161B
92161C
92161D
92161D
92161E
92161E
92172
92172
92172A
92172A
92172A
92172A
92210
92210
92210
92210
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,8X22 130 130BA0822 4
BOLT-FLANGED,8X20 130A 130CA0820 4
BRACKET 11055 11055-1899 4
BRACKET 11055A 11055-1900 2
BRACKET 11055B 11055-1902 1
BRACKET 11055C 11055-1904 1
BRACKET 11055D 11055-1905 1
BRACKET 11055E 11055-1906 1
BRACKET 11055F 11055-1907 1
PAD-STORAGE 39086 39086-0001 1
STAY-COMP 39137 39137-0555 1
PAD,UPP,BLACK 39156 39156-0523-MA 1
PAD 39156A 39156-0717 1
TAPE 39188 39188-0016 2
PACKING 43049 43049-0016 2
PACKING 43049A 43049-0017 2
PACKING 43049B 43049-0018 2
PACKING 43049C 43049-0019 2
PACKING 43049D 43049-0020 1
HINGE 53009 53009-0028 2
HOOK-ASSY 53045 53045-0015 2
BAG,CNT,BODY BLK+COVER BLK/BLU 57003 57003-5339-45F 1
BAG,CNT,WHITE+WHITE/SILVER 57003A 57003-5340-45H 1
RIVET 92039 92039-0091 8
RIVET 92039A 92039-1289 4
WIRE 92086 92086-0014 1
COLLAR 92143 92143-1450 4
DAMPER 92161 92161-0290 4
DAMPER 92161A 92161-0754 1
DAMPER 92161B 92161-0755 1
DAMPER 92161C 92161-0756 1
DAMPER 92161D 92161-0802 2
DAMPER 92161E 92161-0819 2
SCREW 92172 92172-0049 4
SCREW 92172A 92172-0450 6
NUT 92210 92210-0401 6
NUT,CAP,4MM 92210A 92210-0434 8
