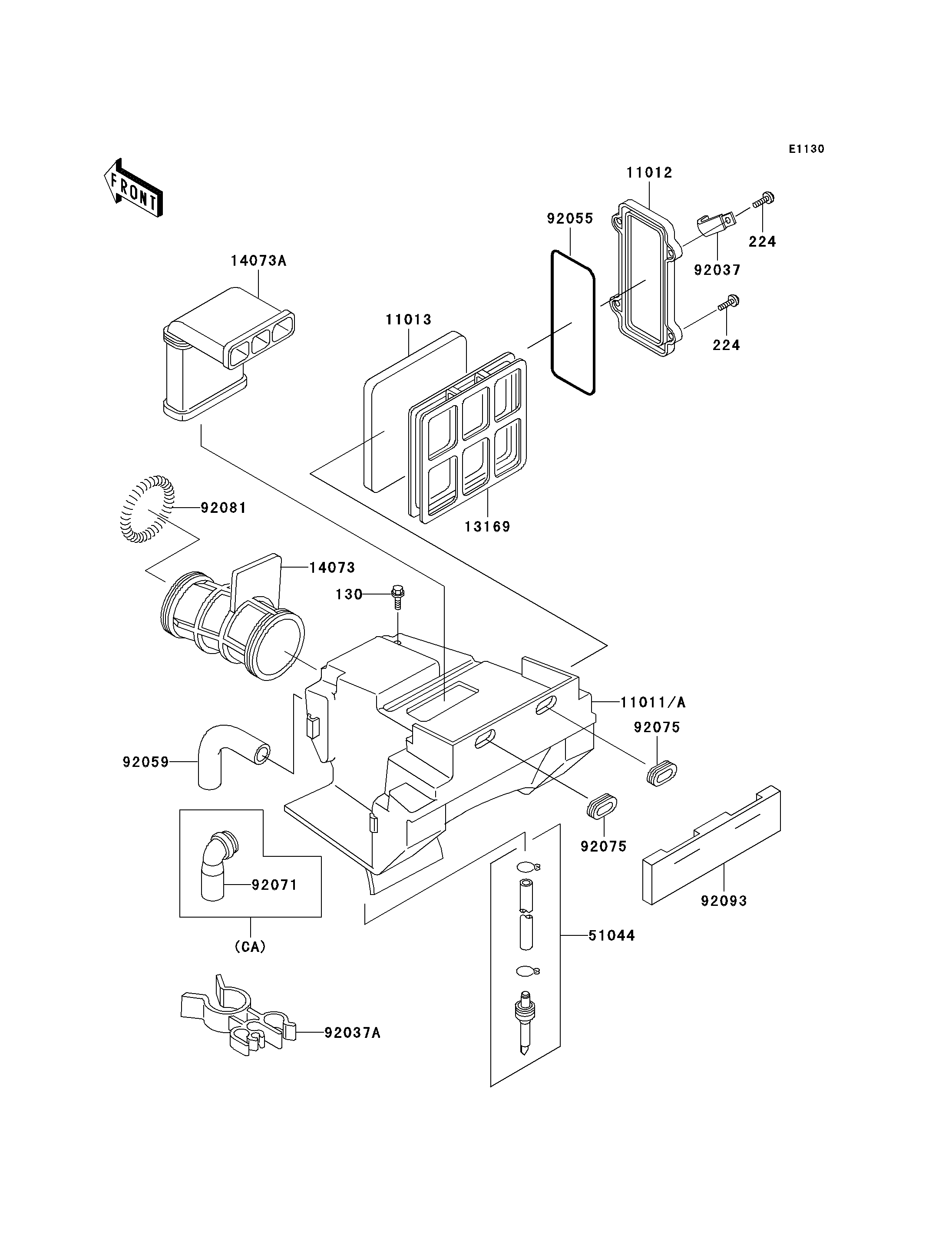

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X12 130 130G0612 1
SCREW-PAN-WP-CROS 224 224C0614 4
CAP,ELEMENT 11012 11012-1661 1
ELEMENT-AIR FILTER 11013 11013-1117 1
PLATE,ELEMENT 13169 13169-1851 1
DUCT,CARBURETOR 14073 14073-1184 1
DUCT,INTAKE 14073A 14073-1185 1
TUBE-ASSY,AIR FILTER 51044 51044-1087 1
CLAMP,WIRING HARNESS,L=60 92037 92037-1069 1
CLAMP 92037A 92037-1886 1
RING-O,AIR FILTER 92055 92055-1254 1
TUBE,BREATHER 92059 92059-1482 1
DAMPER 92075 92075-1513 2
SPRING,COIL 92081 92081-1177 1
SEAL 92093 92093-1187 1
CASE-AIR FILTER 11011 11011-1275 1 US
CASE-AIR FILTER 11011A 11011-1276 1 CA
GROMMET,AIR FILTER 92071 92071-1114 1 CA
