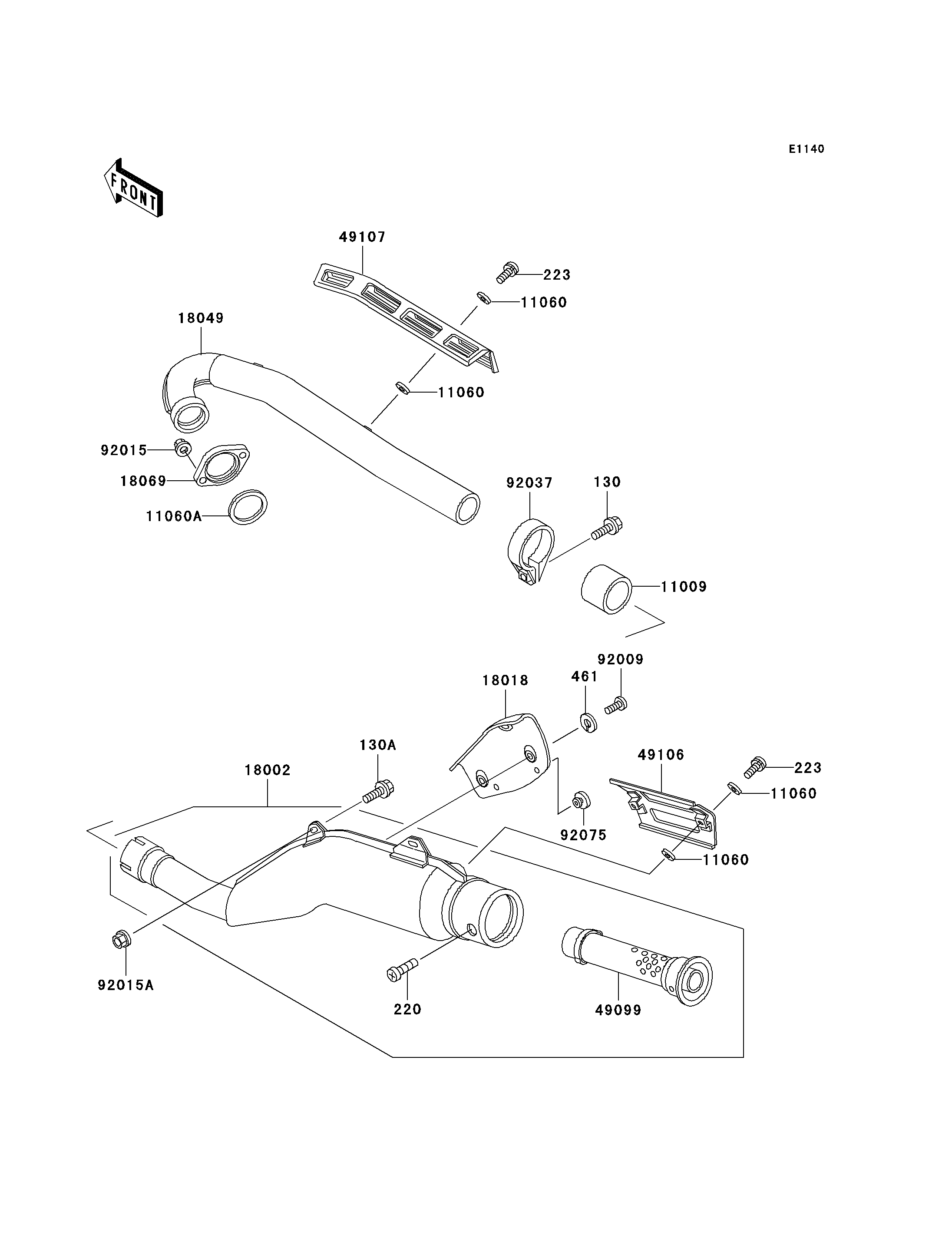

2000 KLR250 - Muffler(s)

DOWNLOAD PDF
SELECT A NEW PART
130
130A
220
223
223
461
11009
11060
11060
11060
11060
11060A
18002
18018
18049
18069
49099
49106
49107
92009
92015
92015A
92037
92075
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,8X30 130 130J0830 1
BOLT-FLANGED,8X40 130A 130J0840 2
SCREW-PAN-CROS,6X10 220 220B0610 1
SCREW-PAN-WS-CROS 223 223C0610 4
WASHER-SPRING,6MM 461 461F0600 3
GASKET,EXHAUST PIPE CONNECTING 11009 11009-1667 1
GASKET,6.2X11.5X1.5 11060 11060-1109 8
GASKET,EXHAUST PIPE 11060A 11060-1126 1
BODY-COMP-MUFFLER 18002 18002-1740 1
PLATE-HEAT GUARD 18018 18018-1055 1
PIPE-EXHAUST 18049 18049-1461 1
HOLDER-EXHAUST PIPE 18069 18069-1058 1
BAFFLE-PIPE MUFFLER 49099 49099-1219 1
COVER-MUFFLER 49106 49106-1052 1
COVER-EXHAUST PIPE 49107 49107-1057 1
SCREW,6X6.7 92009 92009-1054 3
NUT 92015 92015-1331 2
NUT,8MM 92015A 92015-1402 2
CLAMP 92037 92037-1604 1
DAMPER 92075 92075-005 2
