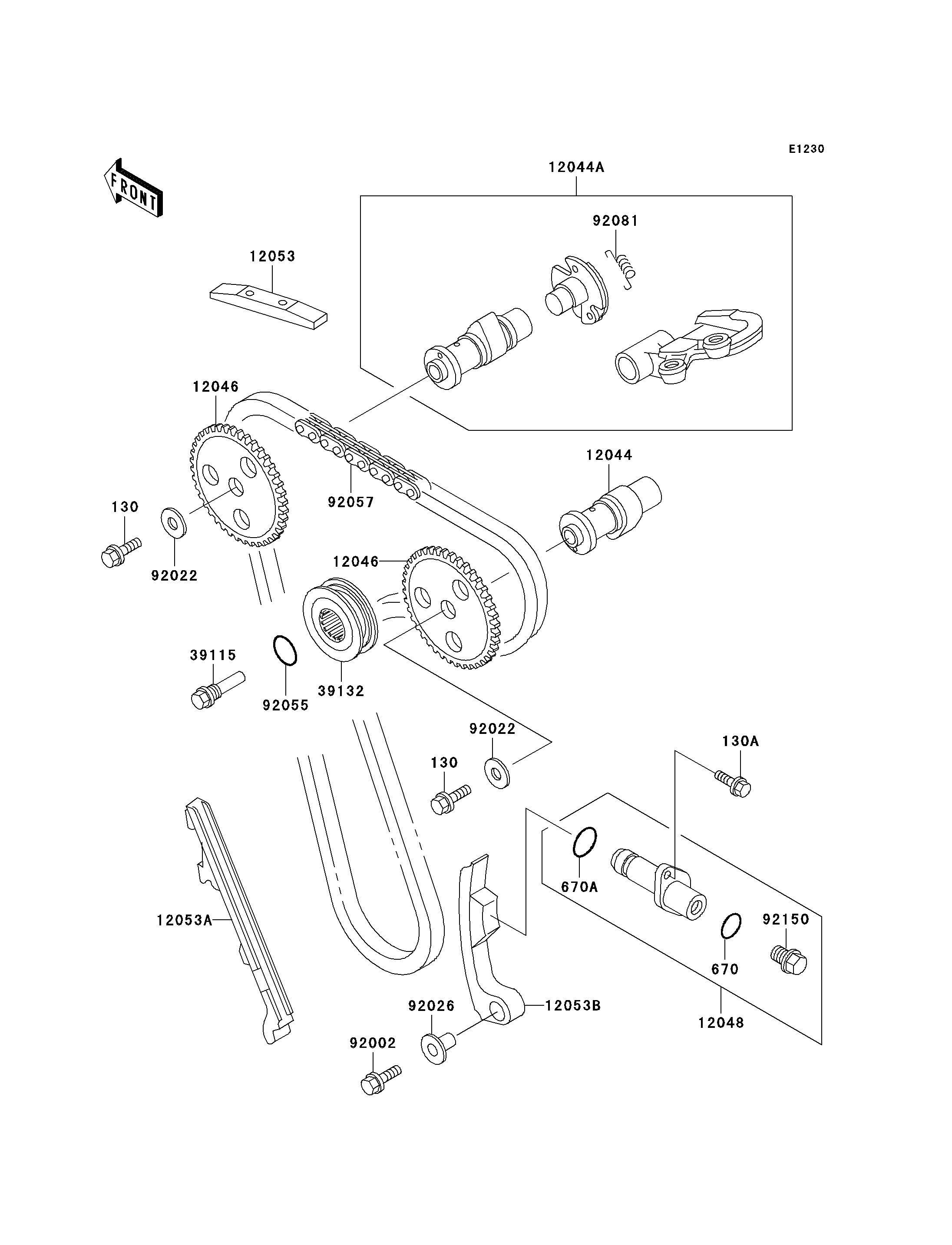

2000 KLR250 - Camshaft(s)/Tensioner

DOWNLOAD PDF
SELECT A NEW PART
130
130
130A
670
670A
12044
12044A
12046
12046
12048
12053
12053A
12053B
39115
39132
92002
92022
92022
92026
92055
92057
92081
92150
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,10X25 130 130G1025 2
BOLT-FLANGED,6X25 130A 130J0625 2
O RING 670 670D2010 1
O RING,21MM 670A 670D2021 1
CAMSHAFT-VALVE,INTAKE 12044 12044-1351 1
CAMSHAFT-VALVE,EXHAUST 12044A 12044-5006 1
SPROCKET,42T 12046 12046-1063 2
TENSIONER-ASSY,CAM CHAIN 12048 12048-1066 1
GUIDE-CHAIN,UPP 12053 12053-1107 1
GUIDE-CHAIN,FR 12053A 12053-1125 1
GUIDE-CHAIN,RR 12053B 12053-1126 1
SHAFT-IDLER 39115 39115-1051 1
SPROCKET-ASSY-IDLER 39132 39132-1052 1
BOLT 92002 92002-1478 1
WASHER,10X22X3 92022 92022-1365 2
SPACER,L=28.3 92026 92026-1231 1
RING-O,ID=13.8 92055 92055-1141 1
CHAIN,CAM,79RH2010-158L 92057 92057-1170 1
SPRING,DECOMPRESSOR 92081 92081-1626 1
BOLT,TENSIONER 92150 92150-1380 1
