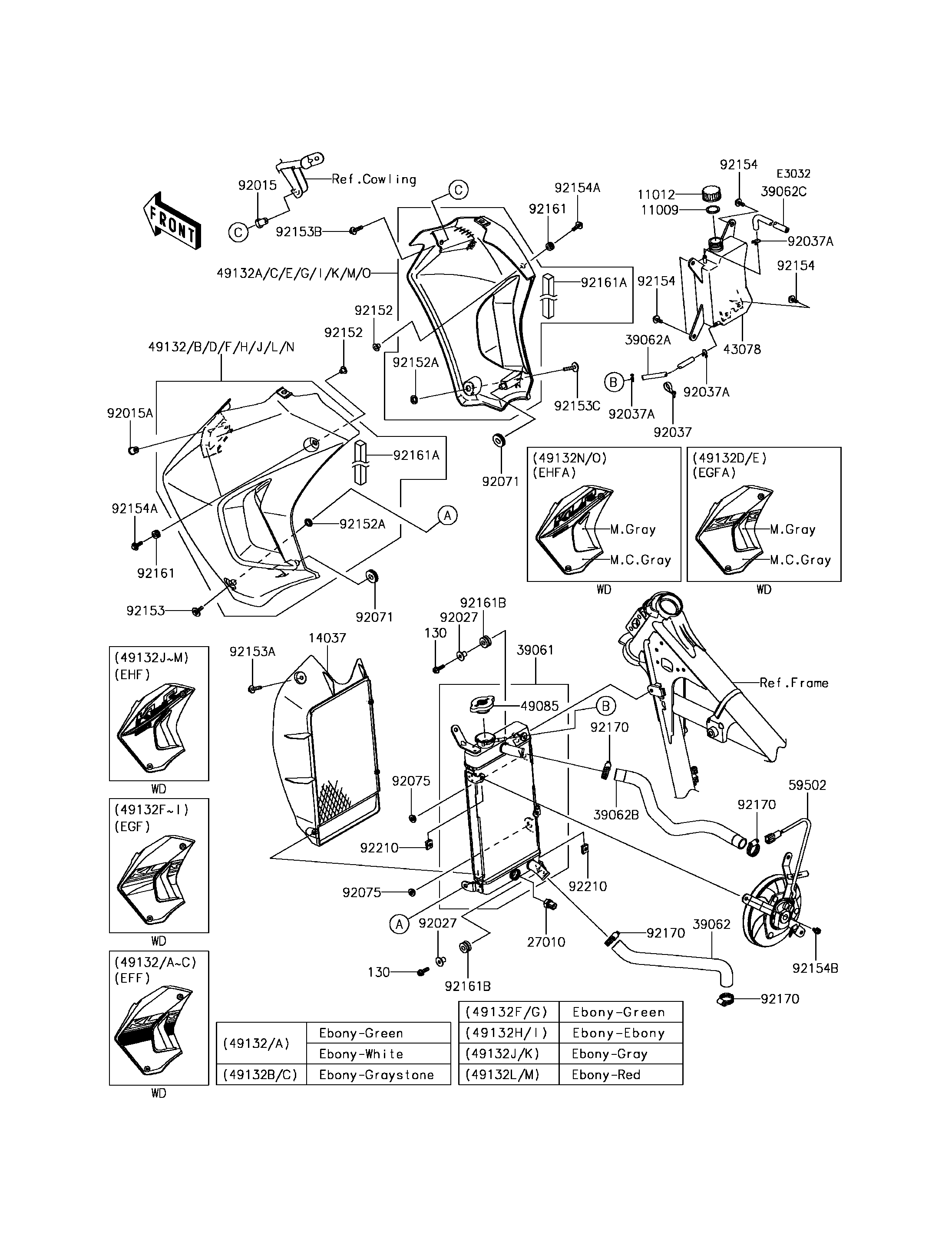

2017 KLR650 Camo - Radiator

DOWNLOAD PDF
SELECT A NEW PART
11009
11009
11012
11012
14037
14037
27010
27010
39061
39061
39062
39062
39062A
39062A
39062B
39062B
39062C
39062C
43078
43078
49085
49085
49132N
49132N
49132O
49132O
59502
59502
92015
92015
92015A
92015A
92027
92027
92027
92027
92037
92037
92037A
92037A
92037A
92037A
92037A
92037A
92071
92071
92071
92071
92075
92075
92075
92075
92152
92152
92152
92152
92152A
92152A
92152A
92152A
92153
92153
92153A
92153A
92153B
92153B
130
130
130
130
92153C
92153C
92154
92154
92154
92154
92154
92154
92154A
92154A
92154A
92154A
92154B
92154B
92161
92161
92161
92161
92161A
92161A
92161A
92161A
92161B
92161B
92161B
92161B
92170
92170
92170
92170
92170
92170
92170
92170
92210
92210
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,RESERVOIR TANK CAP 11009 11009-1145 1
CAP 11012 11012-1084 1
SCREEN 14037 14037-0056 1
SWITCH 27010 27010-1443 1
RADIATOR-ASSY 39061 39061-0690 1
HOSE-COOLING,W/P-RAD. 39062 39062-0149 1
HOSE-COOLING,RESERVOIR-CAP 39062A 39062-0340 1
HOSE-COOLING,HEAD-RAD. 39062B 39062-0341 1
HOSE-COOLING,RESERVOIR 39062C 39062-1220 1
RESERVOIR 43078 43078-0072 1
CAP-ASSY-PRESSURE 49085 49085-0006 1
SHROUD-ENGINE,LH,M.GRAY+GRY 49132N 49132-5328-36L 1
SHROUD-ENGINE,RH,M.GRAY+GRY 49132O 49132-5329-36L 1
FAN-ASSY 59502 59502-0605 1
NUT,RUBBER,6MM 92015 92015-1692 1
NUT 92015A 92015-1700 1
COLLAR,6.5X10X14.1 92027 92027-1183 2
CLAMP,SPEED,L=58 92037 92037-1163 1
CLAMP,TUBE 92037A 92037-147 3
GROMMET 92071 92071-1043 2
DAMPER,8MM 92075 92075-1138 2
COLLAR,6.3X8.3X9.2 92152 92152-0237 2
COLLAR 92152A 92152-1235 2
BOLT,6X20 92153 92153-0864 1
BOLT,FLANGED WP,6X25 92153A 92153-1008 1
BOLT,FLANGED,6X30 92153B 92153-1457 1
BOLT-FLANGED,6X20 130 130BA0620 2
BOLT,6X30 92153C 92153-1895 1
BOLT,6X16 92154 92154-0391 4
BOLT,FLANGED,6X20 92154A 92154-0392 2
BOLT 92154B 92154-1429 3
DAMPER 92161 92161-0056 2
DAMPER 92161A 92161-0509 2
DAMPER 92161B 92161-1755 2
CLAMP,COOLING HOSE 92170 92170-1033 4
NUT 92210 92210-1323 2
