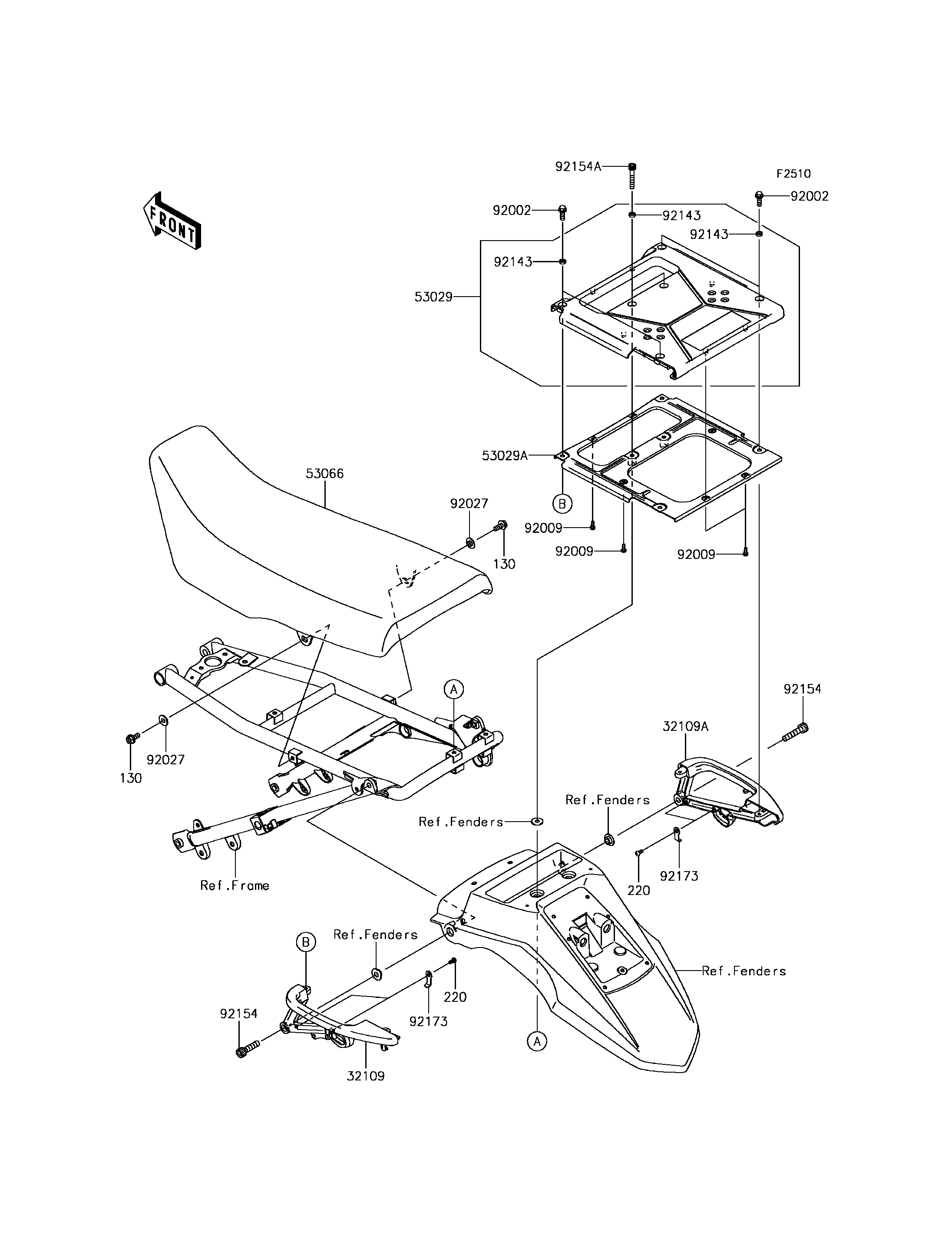

Parts Diagrams |
130
130
220
220
32109
32109A
53029
53029A
53066
92002
92002
92009
92009
92009
92027
92027
92143
92143
92143
92154
92154
92154A
92173
92173
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,6X14 | 130 | 130BA0614 | 2 | ||
| SCREW-PAN-CROS,4X8 | 220 | 220AB0408 | 4 | ||
| GRIP-FRAME,LH,F.S.BLACK | 32109 | 32109-0018-18R | 1 | ||
| GRIP-FRAME,RH,F.S.BLACK | 32109A | 32109-0019-18R | 1 | ||
| CARRIER,UPP | 53029 | 53029-0046 | 1 | ||
| CARRIER,LWR | 53029A | 53029-0047 | 1 | ||
| SEAT-ASSY,DUAL,BLACK/GRAY | 53066 | 53066-0461-49K | 1 | ||
| BOLT,6X16 | 92002 | 92002-1933 | 4 | ||
| SCREW,TAPPING,4X10 | 92009 | 92009-1040 | 6 | ||
| COLLAR | 92027 | 92027-1794 | 2 | ||
| COLLAR | 92143 | 92143-1307 | 6 | ||
| BOLT,SOCKET,8X35 | 92154 | 92154-0367 | 2 | ||
| BOLT,SOCKET,6X35 | 92154A | 92154-0368 | 2 | ||
| CLAMP | 92173 | 92173-0210 | 4 |
| BOLT-FLANGED,6X14 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-CROS,4X8 | |
| REF # | 220 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| GRIP-FRAME,LH,F.S.BLACK | |
| REF # | 32109 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GRIP-FRAME,RH,F.S.BLACK | |
| REF # | 32109A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CARRIER,UPP | |
| REF # | 53029 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CARRIER,LWR | |
| REF # | 53029A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAT-ASSY,DUAL,BLACK/GRAY | |
| REF # | 53066 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X16 | |
| REF # | 92002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SCREW,TAPPING,4X10 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92143 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,8X35 | |
| REF # | 92154 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,6X35 | |
| REF # | 92154A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92173 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
