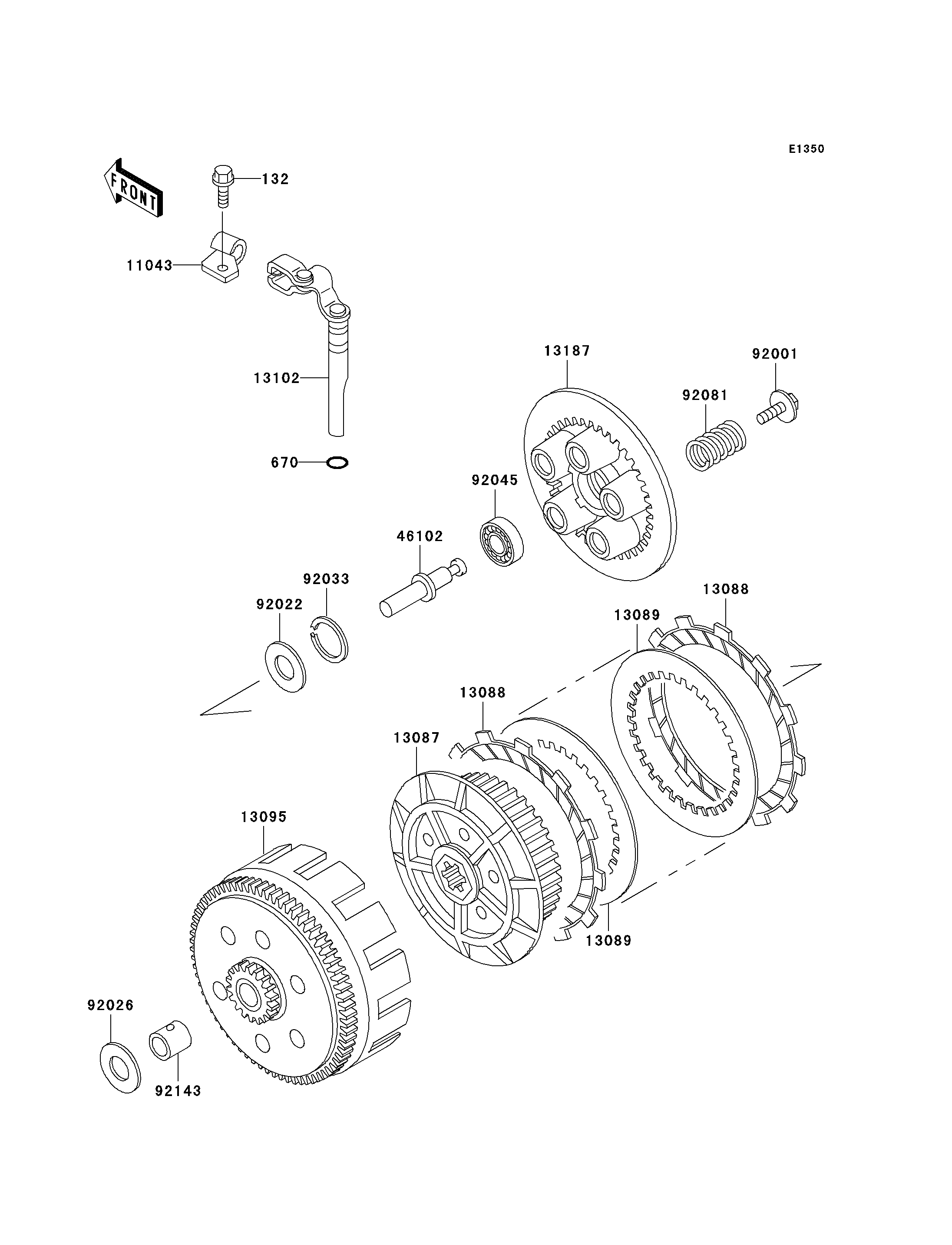

Parts Diagrams |
132
670
11043
13087
13088
13088
13089
13089
13095
13102
13187
46102
92001
92022
92026
92033
92045
92081
92143
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED-SMALL | 132 | 132J0612 | 1 | ||
| O RING,9MM | 670 | 670B1509 | 1 | ||
| BRACKET,CLUTCH CABLE | 11043 | 11043-1931 | 1 | ||
| HUB-CLUTCH | 13087 | 13087-1063 | 1 | ||
| PLATE-FRICTION | 13088 | 13088-1057 | 6 | ||
| PLATE-CLUTCH,T=2.0 | 13089 | 13089-1073 | 5 | ||
| HOUSING-COMP-CLUTCH | 13095 | 13095-1126 | 1 | ||
| RELEASE-COMP-CLUTCH | 13102 | 13102-1064 | 1 | ||
| PLATE-CLUTCH OPERATING | 13187 | 13187-1008 | 1 | ||
| ROD,CLUTCH PUSH | 46102 | 46102-1033 | 1 | ||
| BOLT,CLUTCH SPRING,6X18 | 92001 | 92001-1576 | 5 | ||
| WASHER,20.5X30X1,STEEL | 92022 | 92022-112 | 1 | ||
| SPACER,20.1X34X4 | 92026 | 92026-1233 | 1 | ||
| RING-SNAP,18MM | 92033 | 92033-029 | 1 | ||
| BEARING-BALL,6001C3ML01 | 92045 | 92045-1235 | 1 | ||
| SPRING,CLUTCH | 92081 | 92081-083 | 5 | ||
| COLLAR | 92143 | 92143-1669 | 1 |
| BOLT-FLANGED-SMALL | |
| REF # | 132 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| O RING,9MM | |
| REF # | 670 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,CLUTCH CABLE | |
| REF # | 11043 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HUB-CLUTCH | |
| REF # | 13087 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE-FRICTION | |
| REF # | 13088 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| PLATE-CLUTCH,T=2.0 | |
| REF # | 13089 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| HOUSING-COMP-CLUTCH | |
| REF # | 13095 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RELEASE-COMP-CLUTCH | |
| REF # | 13102 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE-CLUTCH OPERATING | |
| REF # | 13187 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROD,CLUTCH PUSH | |
| REF # | 46102 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,CLUTCH SPRING,6X18 | |
| REF # | 92001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| WASHER,20.5X30X1,STEEL | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPACER,20.1X34X4 | |
| REF # | 92026 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-SNAP,18MM | |
| REF # | 92033 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-BALL,6001C3ML01 | |
| REF # | 92045 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,CLUTCH | |
| REF # | 92081 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92143 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
