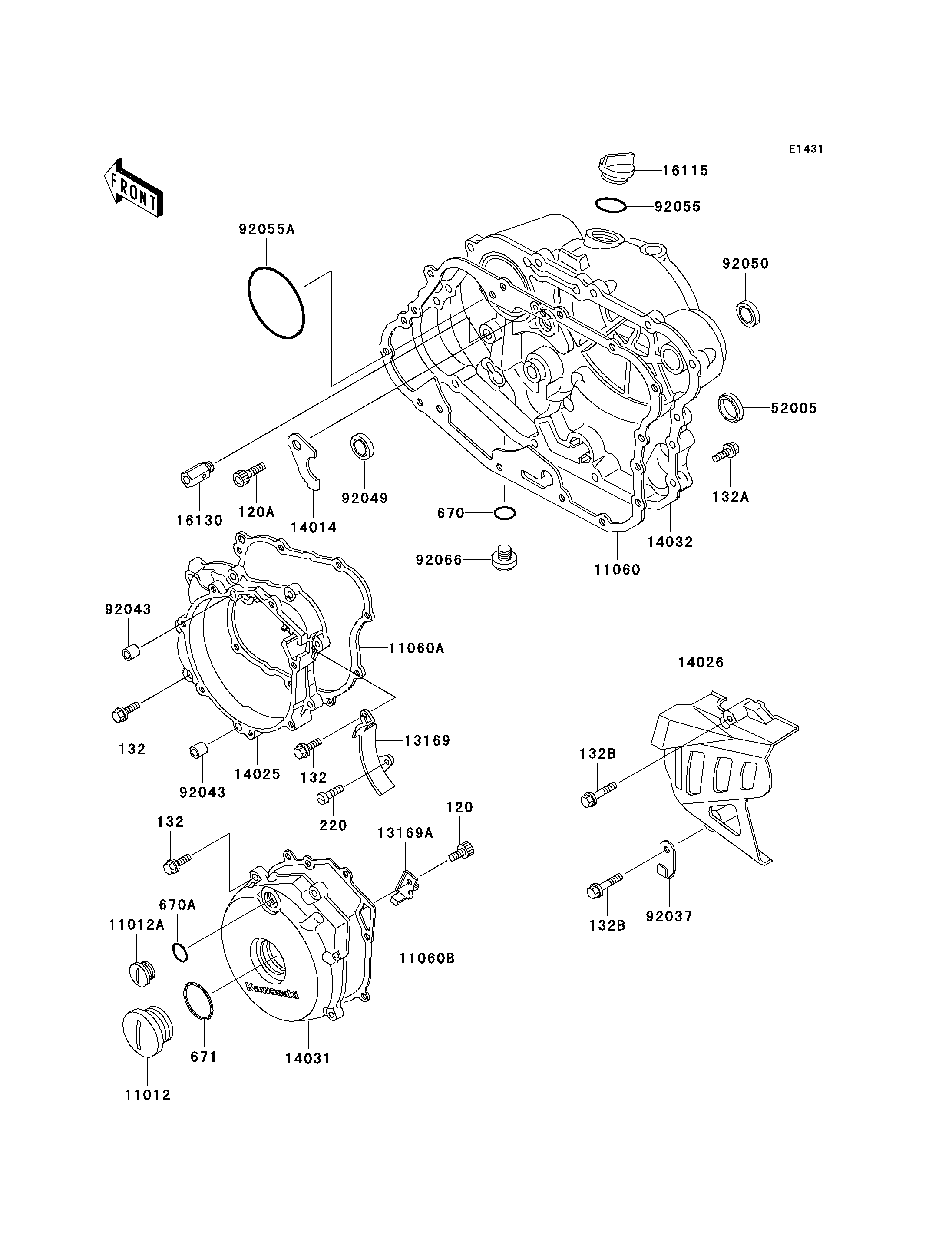

2000 KLR250 - Engine Cover(s)

DOWNLOAD PDF
SELECT A NEW PART
120
120A
132
132
132
132A
132B
132B
220
670
670A
671
11012
11012A
11060
11060A
11060B
13169
13169A
14014
14025
14026
14031
14032
16115
16130
52005
92037
92043
92043
92049
92050
92055
92055A
92066
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET 120 120P0608 1
BOLT-SOCKET,6X10 120A 120P0610 1
BOLT-FLANGED-SMALL 132 132J0625 16
BOLT-FLANGED-SMALL 132A 132J0630 13
BOLT-FLANGED-SMALL 132B 132J0645 2
SCREW-PAN-CROS,6X8 220 220B0608 1
O RING,11MM 670 670B2011 1
O RING,18MM 670A 670B2018 1
O RING,40MM 671 671B2540 1
CAP 11012 11012-1362 1
CAP,TOP MARK 11012A 11012-1363 1
GASKET,CLUTCH COVER 11060 11060-1127 1
GASKET,GENERATOR CASE COVER 11060A 11060-1128 1
GASKET,GENERATOR COVER 11060B 11060-1129 1
PLATE 13169 13169-1879 1
PLATE,GENERATOR LEAD 13169A 13169-1880 1
PLATE-POSITION 14014 14014-1062 1
COVER,GENERATOR CASE 14025 14025-1911 1
COVER-CHAIN 14026 14026-1112 1
COVER-GENERATOR 14031 14031-1238 1
COVER-CLUTCH 14032 14032-1277 1
CAP-OIL FILLER 16115 16115-1009 1
VALVE-ASSY-RELIEF 16130 16130-1001 1
GAUGE,OIL LEVEL 52005 52005-1009 1
CLAMP,WIRING HARNESS,L=60 92037 92037-1069 1
PIN,6.2X8X14 92043 92043-1263 2
SEAL-OIL 92049 92049-1191 1
SEAL-OIL 92050 92050-078 1
RING-O,31.7X2.4 92055 92055-049 1
RING-O,62.6X66X3.1 92055A 92055-1221 1
PLUG,DRAIN 92066 92066-1156 1
