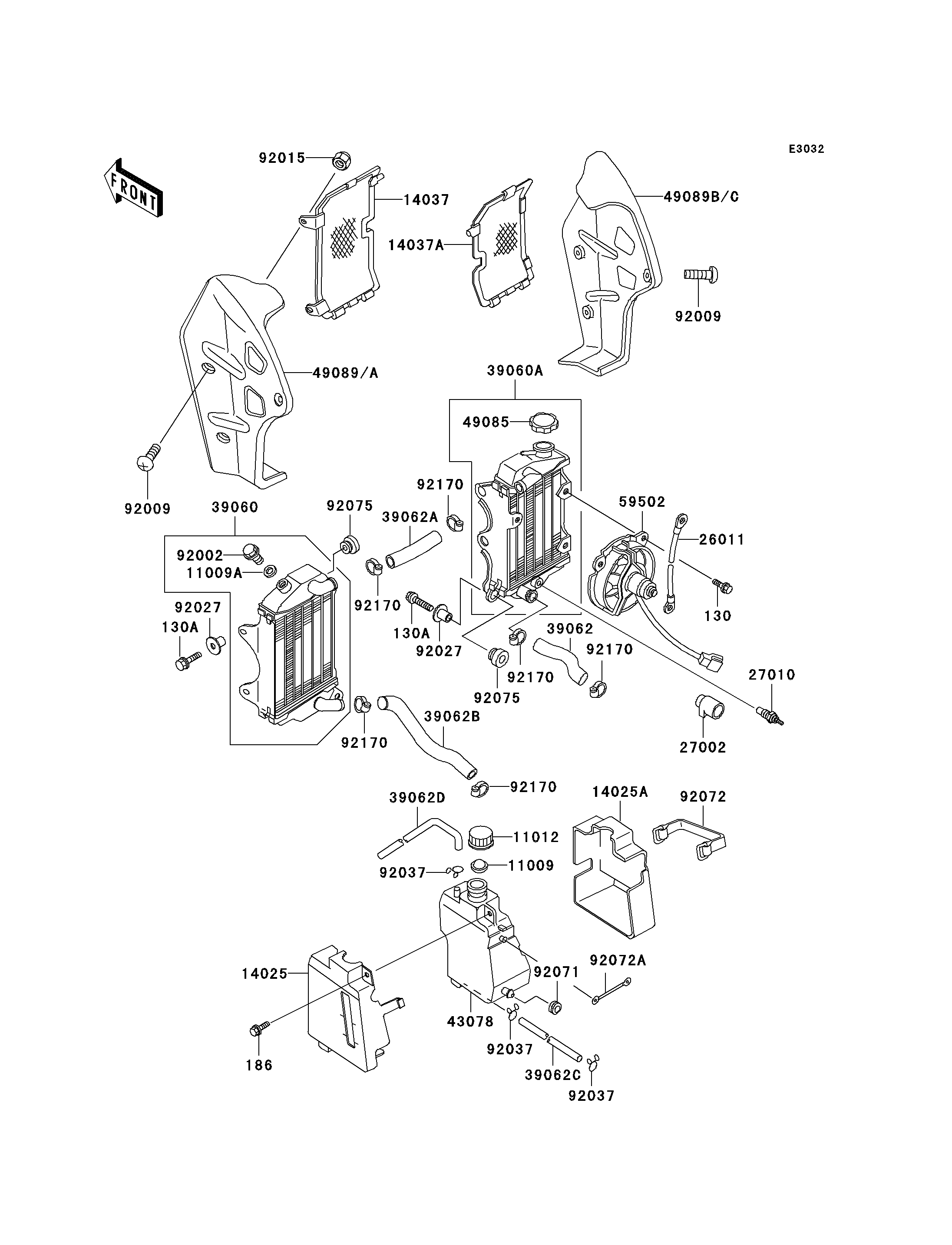

2000 KLR250 - Radiator

DOWNLOAD PDF
SELECT A NEW PART
130
130A
130A
186
11009
11009A
11012
14025
14025A
14037
14037A
26011
27002
27010
39060
39060A
39062
39062A
39062B
39062C
39062D
43078
49085
49089A
49089C
59502
92002
92009
92009
92015
92027
92027
92037
92037
92037
92071
92072
92072A
92075
92075
92170
92170
92170
92170
92170
92170
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130J0612 3
BOLT-FLANGED 130A 130J0620 6
BOLT-UPSET-WP 186 186J0618 1
GASKET,RESERVOIR TANK CAP 11009 11009-1145 1
GASKET,DRAIN BOLT 11009A 11009-1152 1
CAP 11012 11012-1084 1
COVER,RESERVOIR 14025 14025-1991 1
COVER,RESERVOIR 14025A 14025-1992 1
SCREEN,LH 14037 14037-1061 1
SCREEN,RH 14037A 14037-1062 1
WIRE-LEAD 26011 26011-1278 1
RELAY-ASSY 27002 27002-1051 1
SWITCH,FAN 27010 27010-1180 1
RADIATOR,LH 39060 39060-1060 1
RADIATOR,RH 39060A 39060-1061 1
HOSE-COOLING 39062 39062-1083 1
HOSE-COOLING 39062A 39062-1084 1
HOSE-COOLING 39062B 39062-1085 1
HOSE-COOLING 39062C 39062-1086 1
HOSE-COOLING 39062D 39062-1132 1
RESERVOIR,TANK 43078 43078-1061 1
CAP-ASSY-PRESSURE 49085 49085-1067 1
SHROUD-ENGINE,LH,O.GREEN 49089A 49089-1057-68 1
SHROUD-ENGINE,RH,O.GREEN 49089C 49089-1058-68 1
FAN-ASSY 59502 59502-1052 1
BOLT,RADIATOR DRAIN 92002 92002-1682 1
SCREW,6X14,WHITE 92009 92009-1287 6
NUT,CAP,6MM,BLACK 92015 92015-1170 4
COLLAR 92027 92027-1183 6
CLAMP,TUBE 92037 92037-147 3
GROMMET 92071 92071-1115 1
BAND,L=82 92072 92072-053 1
BAND,L=58 92072A 92072-1156 1
DAMPER 92075 92075-1352 6
CLAMP,COOLING HOSE 92170 92170-1033 6
