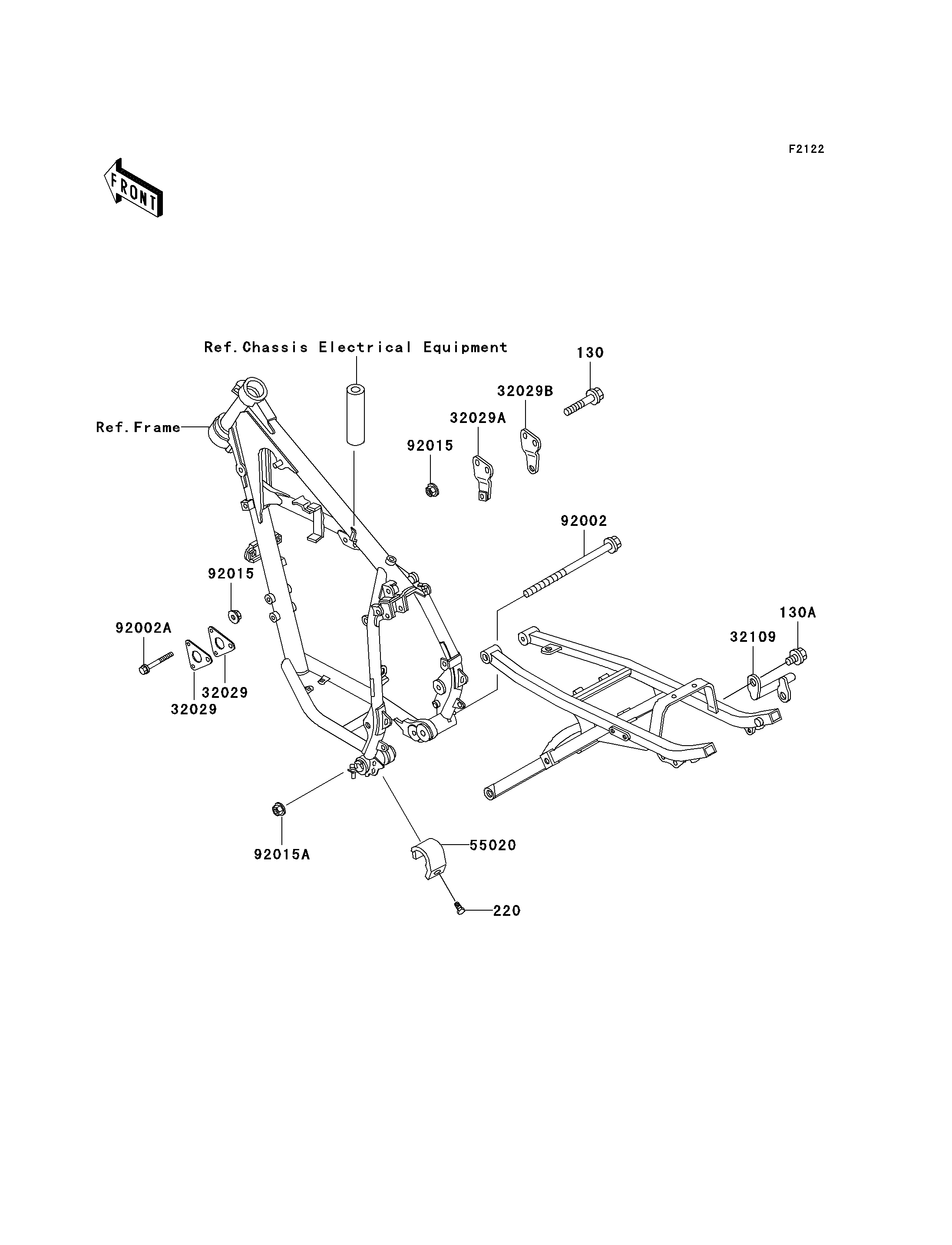

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130H0845 3
BOLT-FLANGED 130A 130N0812 2
SCREW-PAN-CROS 220 220B0510 1
BRACKET-ENGINE,FR 32029 32029-1352 2
BRACKET-ENGINE,LH 32029A 32029-1353 1
BRACKET-ENGINE,RH 32029B 32029-1354 1
GRIP-FRAME,RH,SILVER NO.25 32109 32109-1239-CE 1
GUARD,CHAIN 55020 55020-1174 1
BOLT,FLANGED,12X135 92002 92002-1347 1
BOLT,FLANGED,8X70 92002A 92002-1349 3
NUT,FLANGED,8MM 92015 92015-1406 5
NUT,12MM 92015A 92015-1426 1
