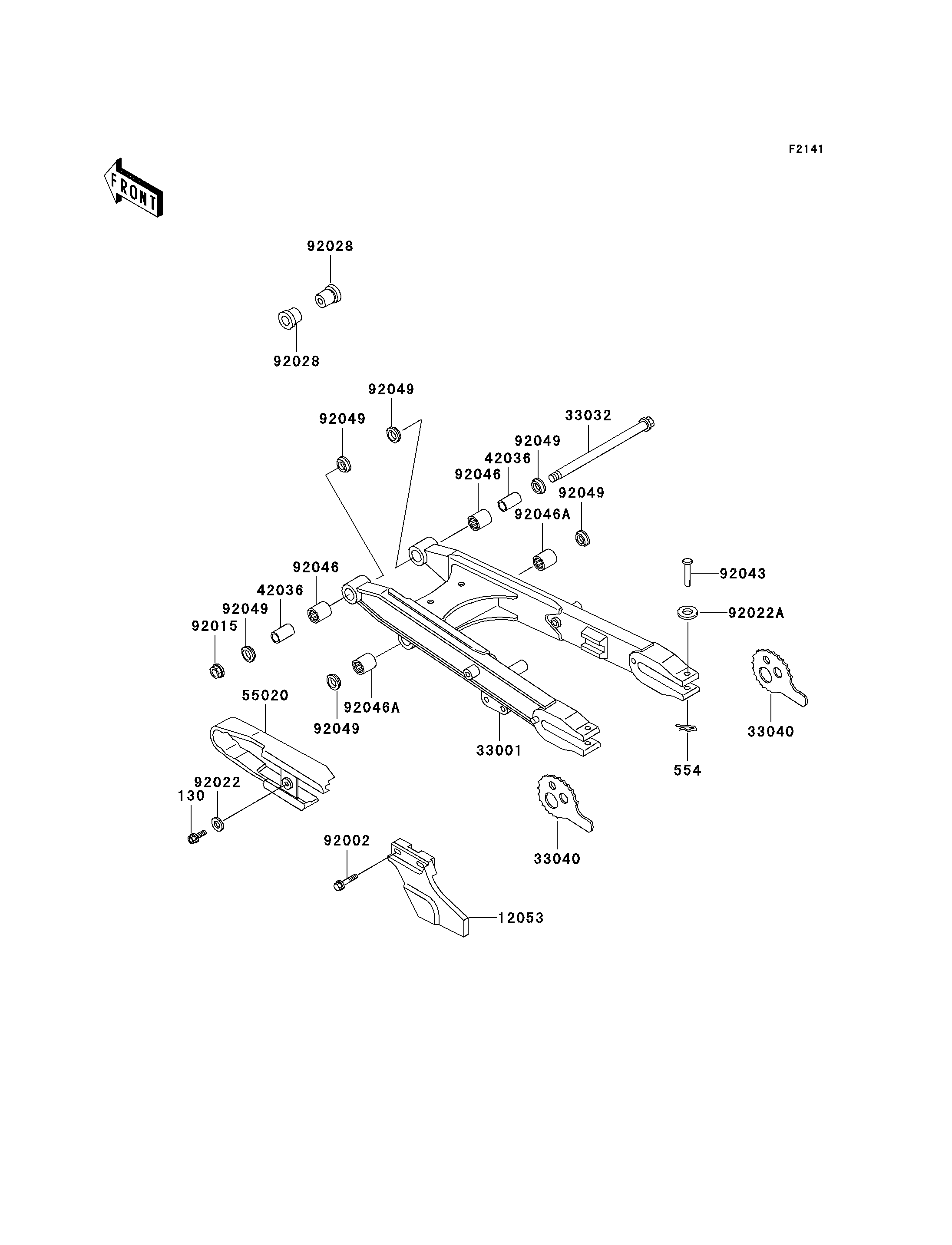

2000 KLR250 - Swingarm

DOWNLOAD PDF
SELECT A NEW PART
130
554
12053
33001
33032
33040
33040
42036
42036
55020
92002
92015
92022
92022A
92028
92028
92043
92046
92046
92046A
92046A
92049
92049
92049
92049
92049
92049
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130G0512 1
PIN-SNAP 554 554A0600 2
GUIDE-CHAIN,RR 12053 12053-1104 1
ARM-COMP-SWING,SILVER NO.25 33001 33001-1253-CE 1
SHAFT-SWING ARM 33032 33032-1108 1
ADJUSTER-CHAIN 33040 33040-1060 2
SLEEVE,15.1X20X42.5 42036 42036-1103 2
GUARD,CHAIN,FR 55020 55020-1154 1
BOLT,6X45 92002 92002-1088 2
NUT,14MM 92015 92015-1459 1
WASHER,5.5X20X1.2 92022 92022-104 1
WASHER,6.2X11X1.5 92022A 92022-183 2
BUSHING,SWING ARM 92028 92028-1261 2
PIN,6X44.5 92043 92043-1110 2
BEARING-NEEDLE,BM202726 92046 92046-1110 2
BEARING-NEEDLE,BTM202730 92046A 92046-1113 2
SEAL-OIL,ARM,CNT 92049 92049-1109 6
