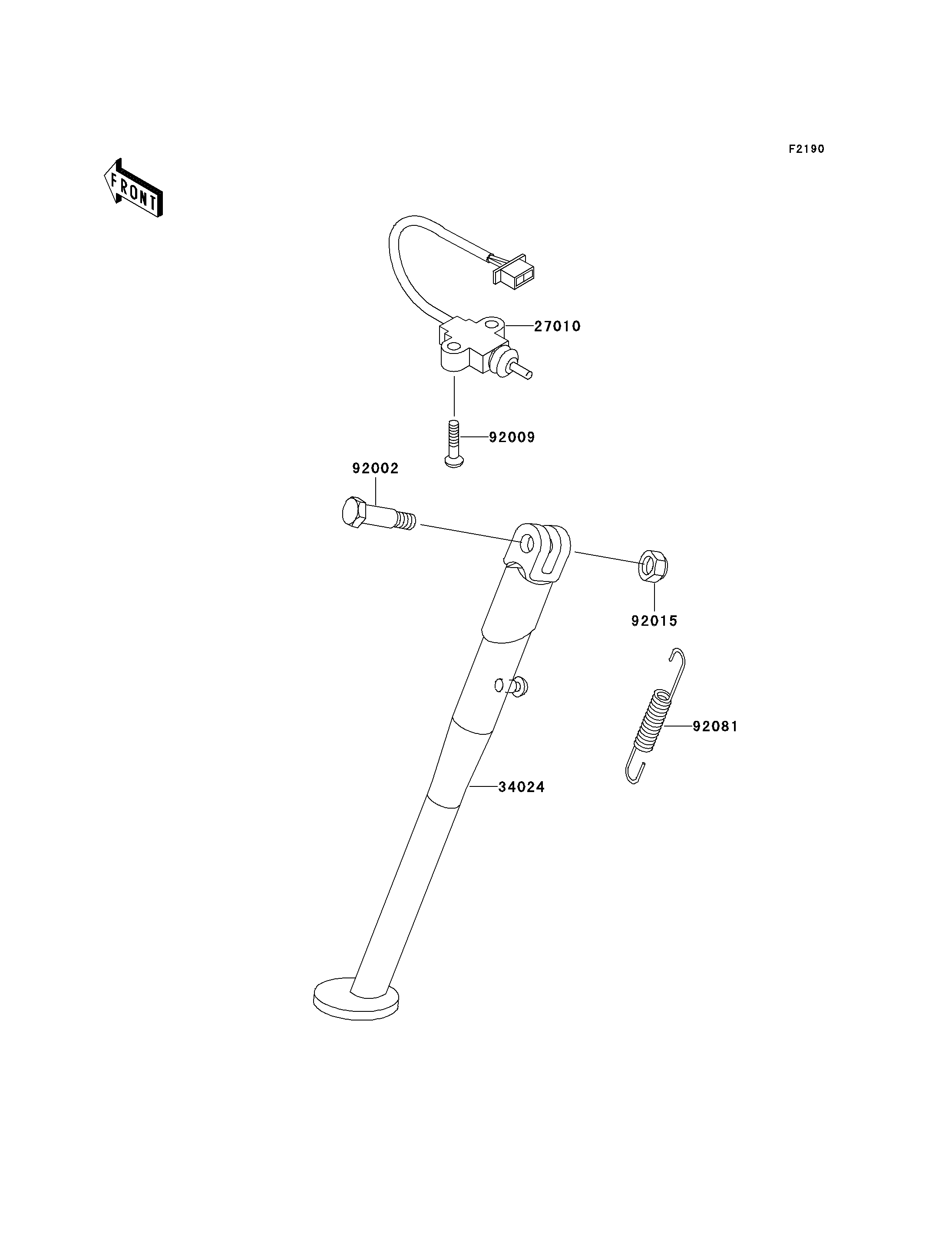

27010
34024
92002
92009
92015
92081
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SWITCH,SIDE STAND 27010 27010-1189 1
STAND-SIDE 34024 34024-1182 1
BOLT,SIDE STAND 92002 92002-1813 1
SCREW,5X20 92009 92009-1359 2
NUT,LOCK,10MM,BLACK 92015 92015-1188 1
SPRING,SIDE STAND 92081 92081-1376 1
