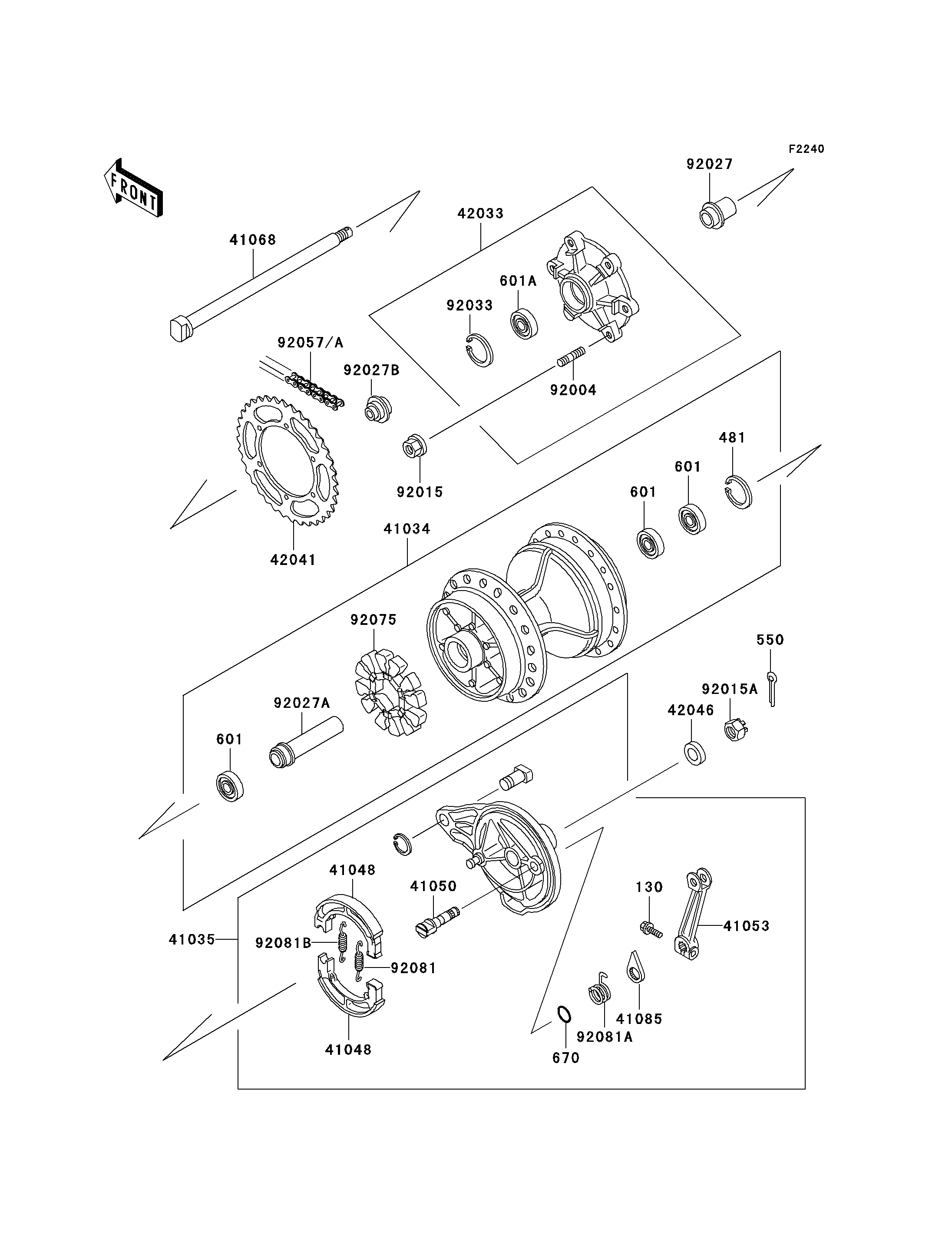

2000 KLR250 - Rear Hub

DOWNLOAD PDF
SELECT A NEW PART
130
481
550
601
601
601
601A
670
41034
41035
41048
41048
41050
41053
41068
41085
42033
42041
42046
92004
92015
92015A
92027
92027A
92027B
92033
92057
92075
92081
92081A
92081B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X25 130 130G0625 1
CIRCLIP-TYPE-C,35MM 481 481J3500 1
PIN-COTTER,4.0X35 550 550D4035 1
BEARING-BALL,#6003UG 601 601B6003UG 3
BEARING-BALL,#6004UG 601A 601B6004UG 1
O RING,15MM 670 670B2015 1
DRUM-ASSY,REAR BRAKE 41034 41034-1113 1
PANEL-ASSY-BRAKE,RR 41035 41035-1289 1
SHOE-BRAKE 41048 41048-1084 2
CAM-BRAKE 41050 41050-1058 1
LEVER-BRAKE CAM 41053 41053-1061 1
AXLE,RR 41068 41068-1178 1
INDICATOR 41085 41085-005 1
COUPLING-ASSY,REAR HUB 42033 42033-1111 1
SPROCKET-HUB,44T 42041 42041-1191 1
WASHER,17.3X32X3.2 42046 42046-009 1
STUD,8X18 92004 92004-1149 6
NUT,FLANGED,LOCK,8MM 92015 92015-1668 6
NUT,CASTLE,16MM 92015A 92015-1947 1
COLLAR,REAR HUB COUPLING,L=23 92027 92027-1770 1
COLLAR,REAR BRAKE DRUM,L=78 92027A 92027-1823 1
COLLAR,REAR HUB COUPLING,L=13 92027B 92027-1826 1
RING-SNAP,42MM 92033 92033-1041 1
CHAIN,DRIVE,EK520LV-OX104L 92057 92057-1181 1
DAMPER,SHOCK,RR HUB 92075 92075-1068 1
SPRING,BRAKE SHOE 92081 92081-1550 1
SPRING,BRAKE CAM LEVER RETURN 92081A 92081-1615 1
SPRING,BRAKE SHOE 92081B 92081-1766 1
