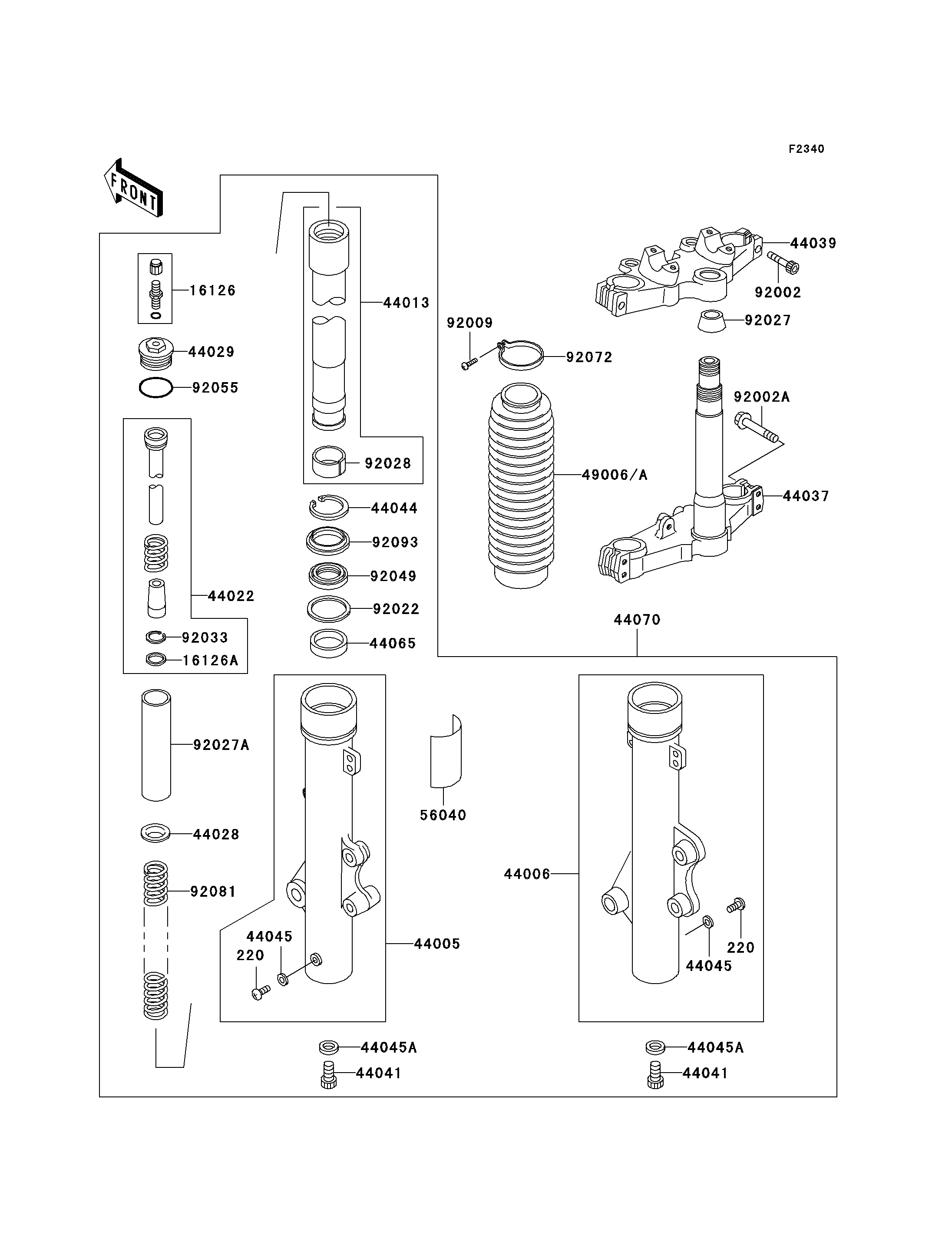

2000 KLR250 - Front Fork

DOWNLOAD PDF
SELECT A NEW PART
220
220
16126
16126A
44005
44006
44013
44022
44028
44029
44037
44039
44041
44041
44044
44045
44045
44045A
44045A
44065
44070
49006
56040
92002
92002A
92009
92022
92027
92027A
92028
92033
92049
92055
92072
92081
92093
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW-PAN-CROS,4X6 220 220B0406 2
VALVE,AIR 16126 16126-1052 2
VALVE,FORK CYLINDER 16126A 16126-1123 2
PIPE-LEFT FORK OUTER 44005 44005-1334 1
PIPE-RIGHT FORK OUTER 44006 44006-1332 1
PIPE-FORK INNER 44013 44013-1224 2
CYLINDER-FORK 44022 44022-1175 2
GUIDE-FORK SPRING 44028 44028-1004 2
SEAT-FORK SPRING 44029 44029-1119 2
HOLDER-FORK UNDER 44037 44037-1178 1
HOLDER-FORK UPPER 44039 44039-1121 1
BOLT,SOCKET,FORK CYLINDER 44041 44041-040 2
RING-SNAP 44044 44044-015 2
GASKET,FORK DRAIN PLUG 44045 44045-002 2
GASKET 44045A 44045-057 2
BUSHING-FRONT FORK 44065 44065-1016 2
DAMPER-ASSY,FORK 44070 44070-5140 1
BOOT,FORK,S.GRAY 49006 49006-1009-SR 2
LABEL-WARNING,FRONT FORK 56040 56040-1120 1
BOLT,SOCKET,8X32 92002 92002-1277 2
BOLT,FLANGED,8X40 92002A 92002-1476 4
SCREW,4X16 92009 92009-1348 2
WASHER,FRONT FORK 92022 92022-1275 2
COLLAR,UPPER BRACKET 92027 92027-1791 1
COLLAR,L=165 92027A 92027-1872 2
BUSHING,INNER PIPE 92028 92028-1354 2
RING-SNAP,FORK CYLINDER 92033 92033-1004 2
SEAL-OIL,FORK OUTER PIPE 92049 92049-1216 2
RING-O,FORK TOP CAP 92055 92055-1051 2
BAND,BOOT 92072 92072-1008 2
SPRING,FRONT FORK 92081 92081-1825 2
SEAL,FORK OUTER PIPE 92093 92093-1181 2
