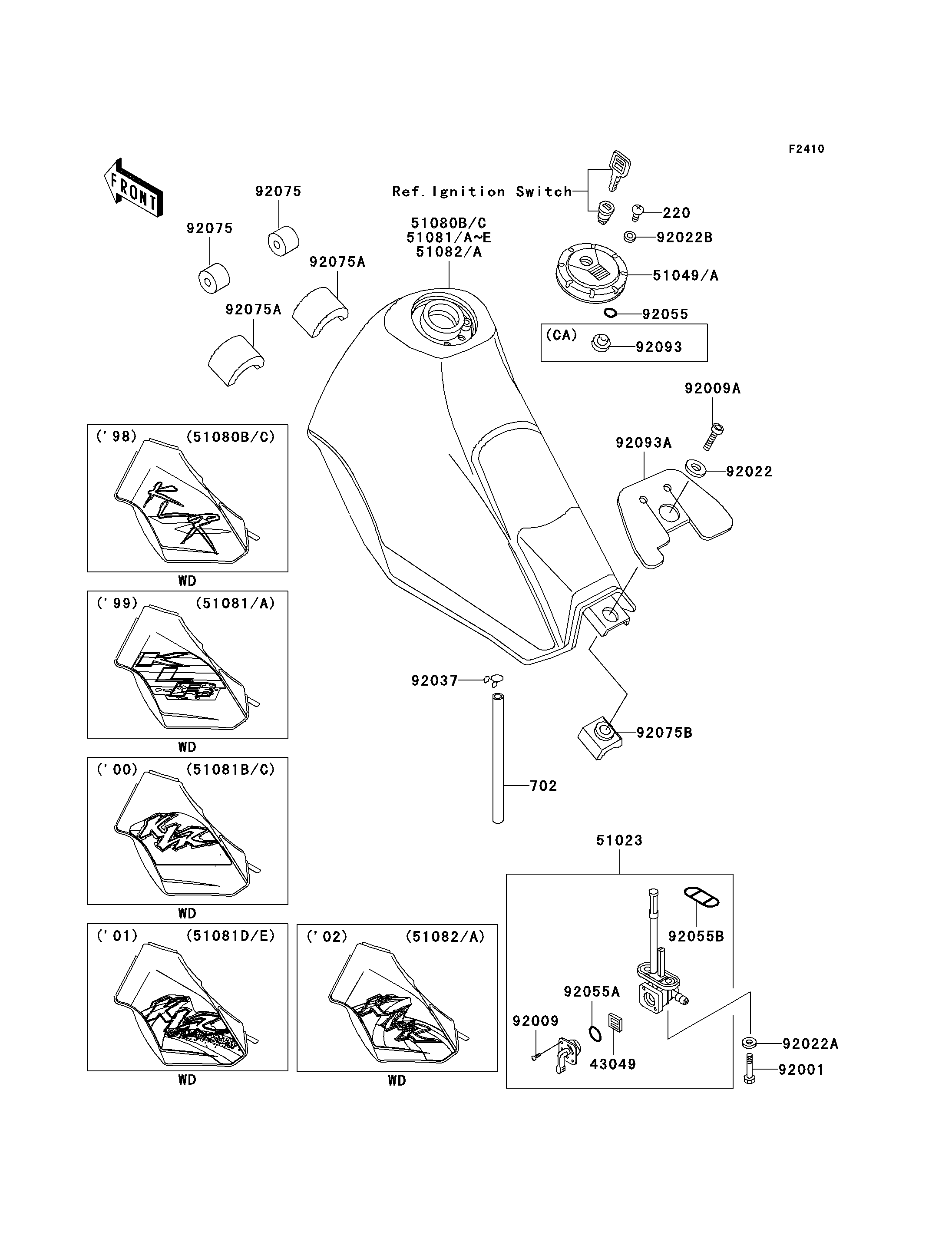

2000 KLR250 - Fuel Tank

DOWNLOAD PDF
SELECT A NEW PART
43049
43049
51023
51023
51049
51049
220
220
92001
92001
92009
92009
92009A
92009A
92022
92022
92022A
92022A
92022B
92022B
92055
92055
92055A
92055A
92055B
92055B
92075
92075
92075
92075
92075A
92075A
92075A
92075A
92075B
92075B
92093A
92093A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PACKING,FUEL TAP LEVER 43049 43049-1017 1
TAP-ASSY,FUEL 51023 51023-1112 1
CAP-TANK,FUEL 51049 51049-1077 1
SCREW-PAN-CROS 220 220D0510 2
BOLT,6X20 92001 92001-1091 2
SCREW,3X5 92009 92009-1123 2
SCREW,6X8 92009A 92009-1294 1
WASHER,6.2X38X1.2 92022 92022-1659 1
WASHER,6.2X11X1.5 92022A 92022-183 2
WASHER,5.1X10X1.0 92022B 92022-1977 2
RING-O 92055 92055-1023 2
RING-O,FUEL TAP LEVER 92055A 92055-1111 1
RING-O,FUEL TAP PACKING 92055B 92055-1112 1
DAMPER,FUEL TANK 92075 92075-125 2
DAMPER,FUEL TANK 92075A 92075-1382 2
DAMPER,FUEL TANK 92075B 92075-1638 1
SEAL,FUEL TANK 92093A 92093-1182 1
TANK-COMP-FUEL,O.GREEN 51081B 51081-5195-HA 1 US
TANK-COMP-FUEL,O.GREEN 51081C 51081-5202-HA 1 CA
TUBE-RUBBER,5X750 702 702A05750 1 US
CLAMP 92037 92037-1610 1 US
SEAL,FUEL TANK CAP 92093 92093-1030 1 CA
