Parts Diagrams

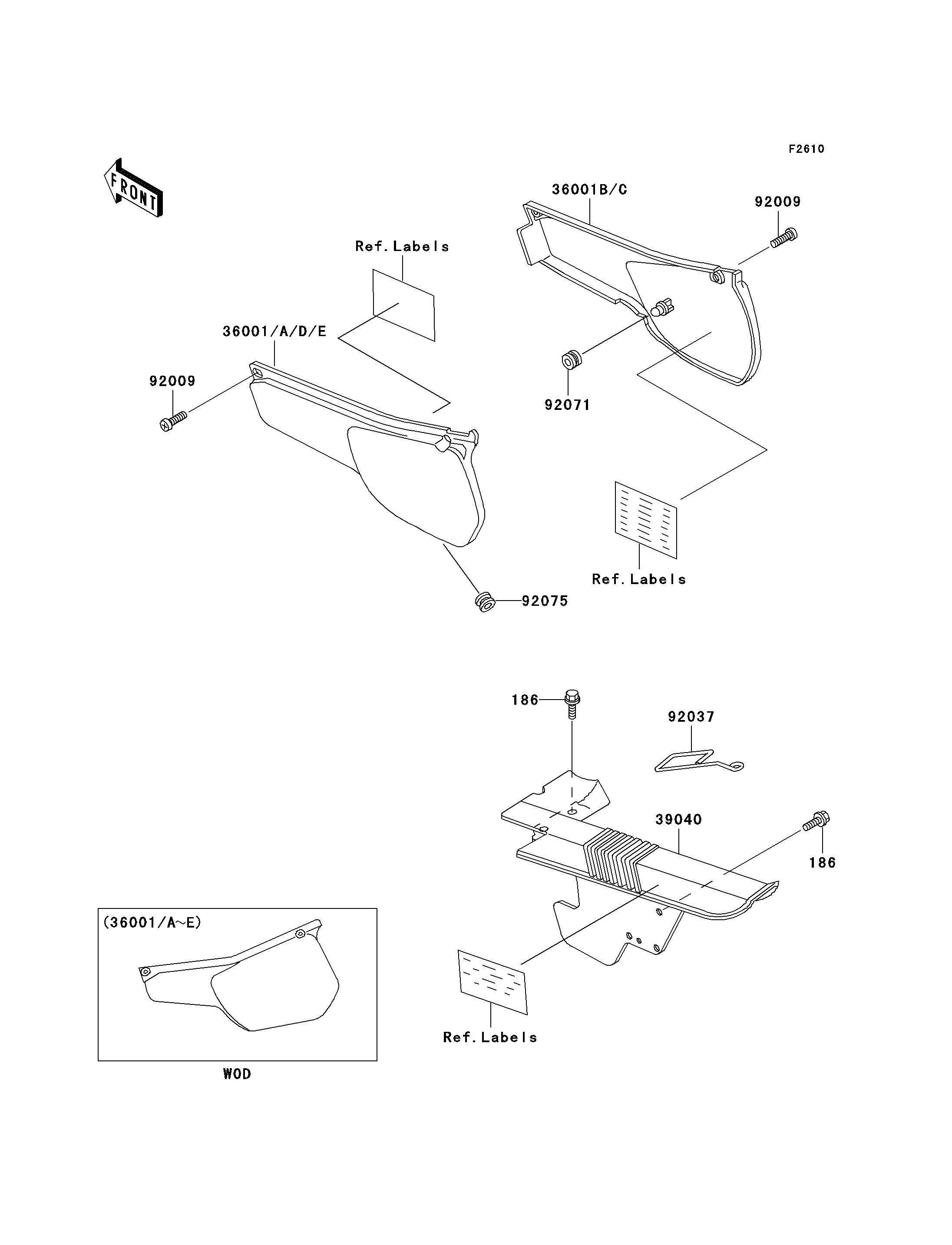

2000 KLR250 - Side Covers/Chain Cover

SELECT A NEW PART

DOWNLOAD PDF SELECT A NEW PART

36001C

36001C

36001C

39040

39040

39040

92009

92009

92009

92009

92009

92009

92037

92037

92037

92071

92071

92071

92075

92075

92075

186

186

186

186

186

186

Part Item Information
ITEM NAME	REF #	PART NUMBER	QUANTITY	DESTINATION	REMARKS
COVER-SIDE,RH,O.GREEN	36001C	36001-1273-68	1
COVER-ASSY-CHAIN CASE	39040	39040-1051	1
SCREW,6X10,WHITE	92009	92009-1286	4
CLAMP,HOSE	92037	92037-1620	1
GROMMET	92071	92071-056	1
DAMPER	92075	92075-1067	1
BOLT-UPSET-WP	186	186C0618	3
COVER-SIDE,LH,O.GREEN	36001A	36001-1272-68	1	US
COVER-SIDE,LH,O.GREEN	36001E	36001-1297-68	1	CA

COVER-SIDE,RH,O.GREEN
COVER-SIDE,RH,O.GREEN
REF #	36001C
PART NUMBER
QUANTITY	1
DESTINATION
REMARKS

COVER-ASSY-CHAIN CASE
COVER-ASSY-CHAIN CASE
REF #	39040
PART NUMBER
QUANTITY	1
DESTINATION
REMARKS

SCREW,6X10,WHITE
SCREW,6X10,WHITE
REF #	92009
PART NUMBER
QUANTITY	4
DESTINATION
REMARKS

CLAMP,HOSE
CLAMP,HOSE
REF #	92037
PART NUMBER
QUANTITY	1
DESTINATION
REMARKS

GROMMET
GROMMET
REF #	92071
PART NUMBER
QUANTITY	1
DESTINATION
REMARKS

DAMPER
DAMPER
REF #	92075
PART NUMBER
QUANTITY	1
DESTINATION
REMARKS

BOLT-UPSET-WP
BOLT-UPSET-WP
REF #	186
PART NUMBER
QUANTITY	3
DESTINATION
REMARKS

COVER-SIDE,LH,O.GREEN
COVER-SIDE,LH,O.GREEN
REF #	36001A
PART NUMBER
QUANTITY	1
DESTINATION	US
REMARKS

COVER-SIDE,LH,O.GREEN
COVER-SIDE,LH,O.GREEN
REF #	36001E
PART NUMBER
QUANTITY	1
DESTINATION	CA
REMARKS
