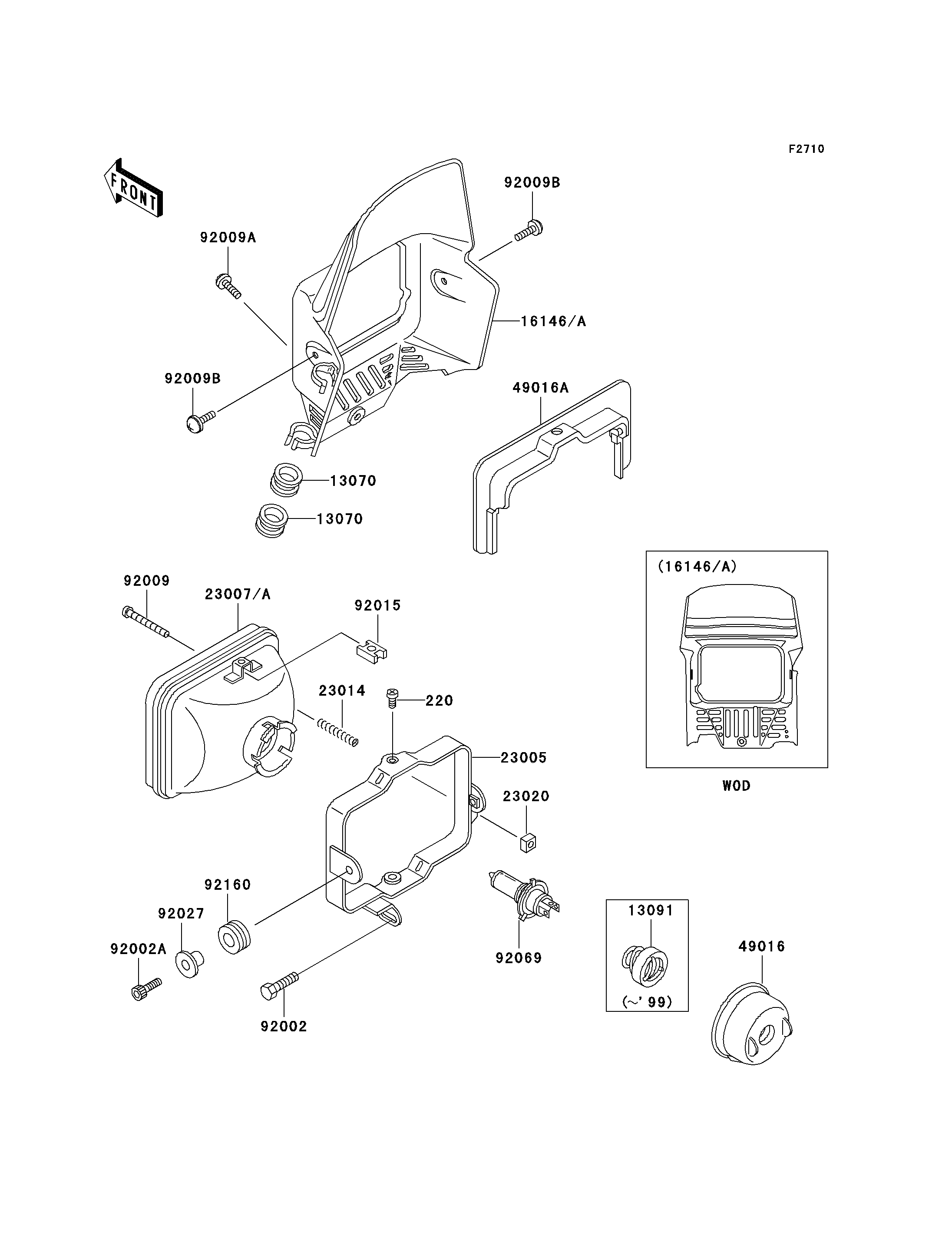

1998 KLR250 - Headlight(s)

DOWNLOAD PDF
SELECT A NEW PART
13070
13070
13070
13070
13091
13091
16146
16146
23005
23005
23007
23007
23014
23014
23020
23020
49016
49016
49016A
49016A
92002
92002
92002A
92002A
92009
92009
92009A
92009A
92009B
92009B
92009B
92009B
92015
92015
92027
92027
92069
92069
220
220
92160
92160
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GUIDE,BRAKE HOSE 13070 13070-1107 2
HOLDER,SOCKET 13091 13091-1558 1
COVER-ASSY,HEAD LAMP,F.B.GREEN 16146 16146-1053-59 1
BODY-COMP-HEAD LAMP 23005 23005-1052 1
LENS-COMP,HEAD LAMP 23007 23007-1102 1
SPRING,FOCUS ADJUSTING 23014 23014-005 1
NUT,4MM,FOCUS ADJUST 23020 23020-018 1
COVER-SEAL,SOCKET 49016 49016-1037 1
COVER-SEAL,HEAD LAMP 49016A 49016-1101 1
BOLT,6X16 92002 92002-1124 1
BOLT 92002A 92002-1319 2
SCREW,4X48 92009 92009-1065 1
SCREW,6X14,WHITE 92009A 92009-1287 1
SCREW,6X8 92009B 92009-1294 2
NUT,5MM 92015 92015-1354 2
COLLAR,L=14 92027 92027-1134 2
BULB,12V 60/55W,H4 92069 92069-1002 1
SCREW-PAN-CROS,5X8 220 220B0508 2
DAMPER 92160 92160-1007 2
