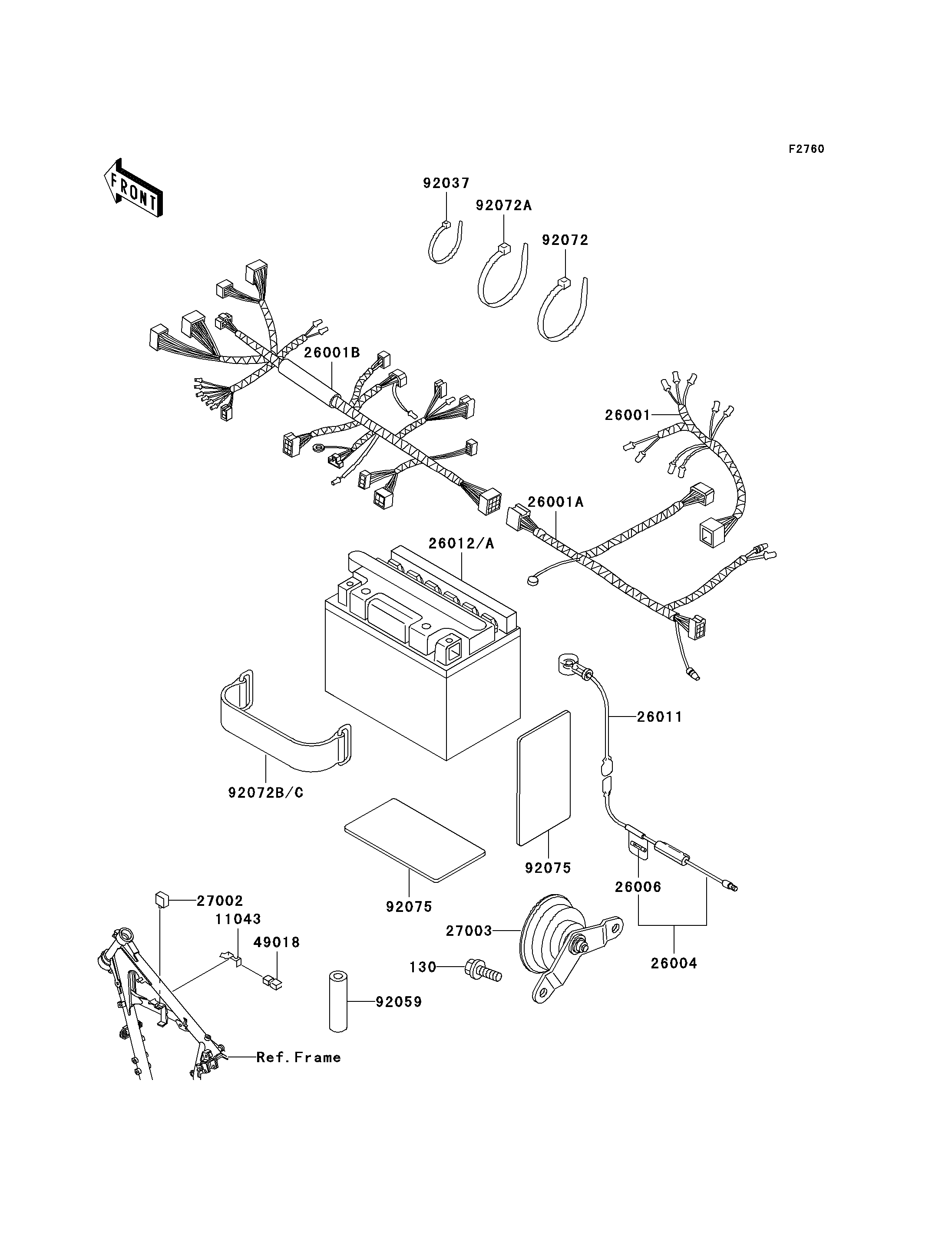

2000 KLR250 - Chassis Electrical Equipment

DOWNLOAD PDF
SELECT A NEW PART
130
11043
26001
26001A
26001B
26004
26006
26011
26012A
27002
27003
49018
92037
92059
92072
92072A
92072B
92075
92075
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X14 130 130D0614 2
BRACKET,DIODE 11043 11043-1376 1
HARNESS,RR 26001 26001-1586 1
HARNESS,CNT 26001A 26001-1677 1
HARNESS,FR(MAIN) 26001B 26001-1698 1
FUSE-ASSY 26004 26004-1055 1
FUSE,20A,L=30 26006 26006-1056 1
WIRE-LEAD,BATTERY 26011 26011-1264 1
BATTERY,FB4L-A,12V 4AH 26012A 26012-1363 1
RELAY-ASSY,TURN SIGNAL 27002 27002-1053 1
HORN 27003 27003-1306 1
DIODE 49018 49018-1052 1
CLAMP,BAND,L=120 92037 92037-1483 6
TUBE,8X9X38 92059 92059-1799 1
BAND,L=218 92072 92072-032 1
BAND,L=186 92072A 92072-056 2
BAND 92072B 92072-1173 1
DAMPER,MAT 92075 92075-1582 2
