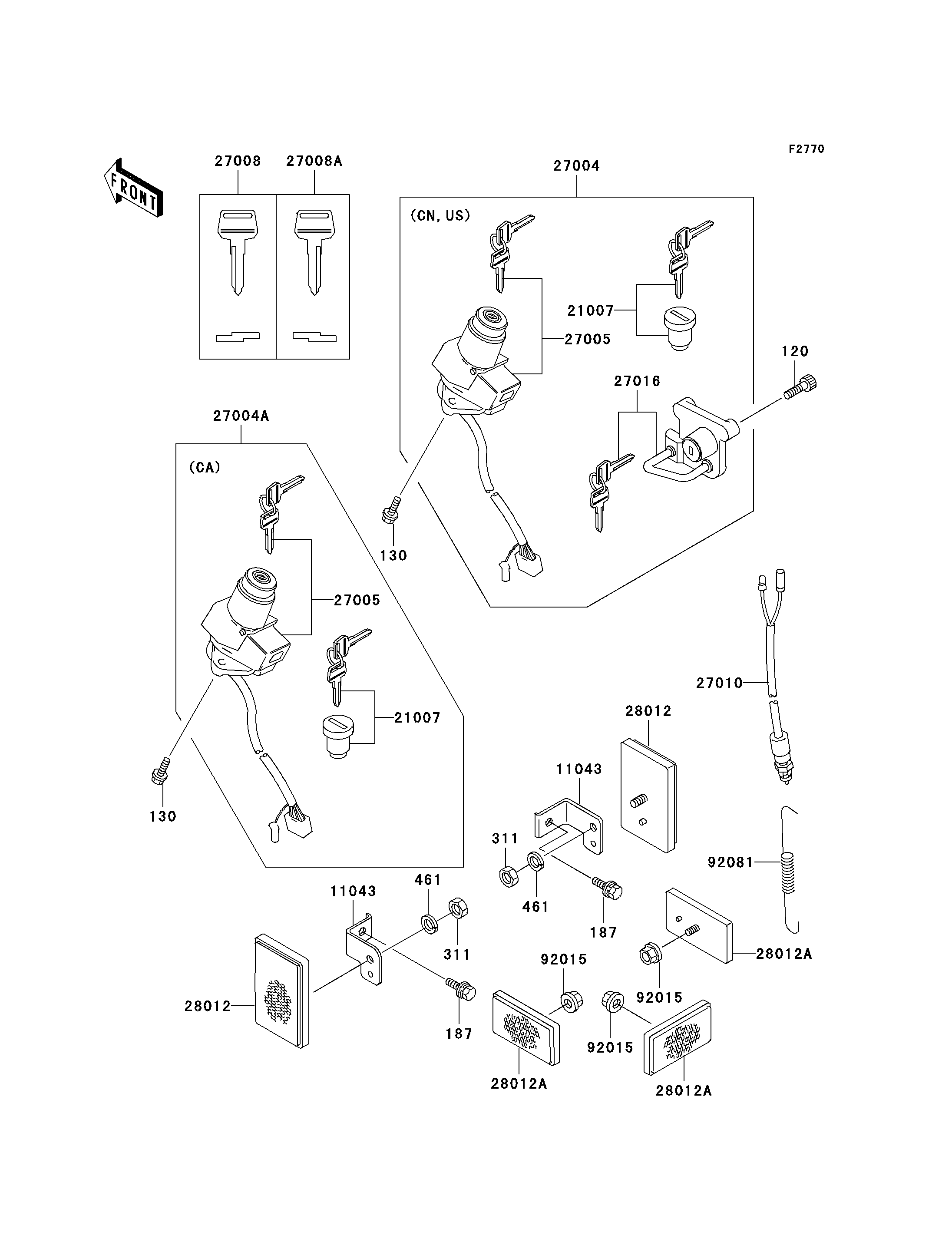

2000 KLR250 - Ignition Switch

DOWNLOAD PDF
SELECT A NEW PART
130
130
187
187
311
311
461
461
11043
11043
21007
21007
27005
27005
27008
27008A
27010
28012
28012
28012A
28012A
28012A
92015
92015
92015
92081
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X14 130 130D0614 2
BOLT-UPSET-WSP 187 187C0614 2
NUT-HEX 311 311B0500 2
WASHER-SPRING,5MM 461 461F0500 2
BRACKET,REFLECTOR,FR 11043 11043-1362 2
ROTOR,LOCK,TANK CAP 21007 21007-5022 1
SWITCH-ASSY-IGNITION 27005 27005-1103 1
KEY-LOCK,BLANK,#A 27008 27008-1034 1 (OPTION)
KEY-LOCK,BLANK,#B 27008A 27008-1035 1 (OPTION)
SWITCH,REAR BRAKE 27010 27010-1019 1
REFLECTOR-REFLEX 28012 28012-1003 2
REFLECTOR-REFLEX 28012A 28012-1088 3
NUT,FLANGED,5MM 92015 92015-1259 3
SPRING,BRAKE LAMP SWITCH 92081 92081-1704 1
BOLT-SOCKET 120 120S0612 2 US
SWITCH-ASSY 27004 27004-5397 1 US
SWITCH-ASSY 27004A 27004-5414 1 CA
LOCK-ASSY,HELMET 27016 27016-5075 1 US
