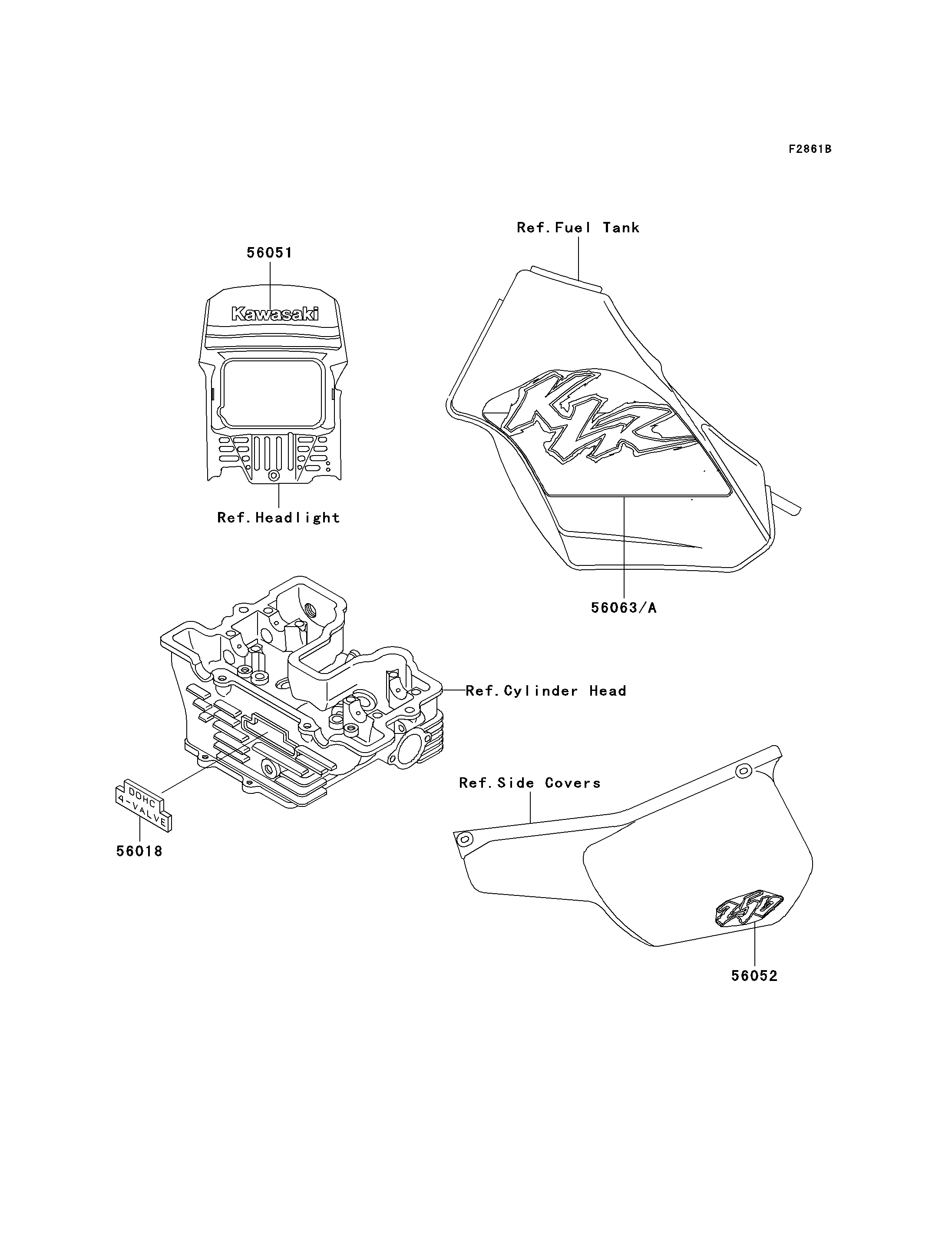

56018
56051
56052
56063
56063A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,CYLINDER HEAD 56018 56018-1483 1
MARK,KAWASAKI 56051 56051-1329 1
MARK,SIDE COVER,250 56052 56052-1130 2
PATTERN,FUEL TANK,LH 56063 56063-1249 1
PATTERN,FUEL TANK,RH 56063A 56063-1250 1
