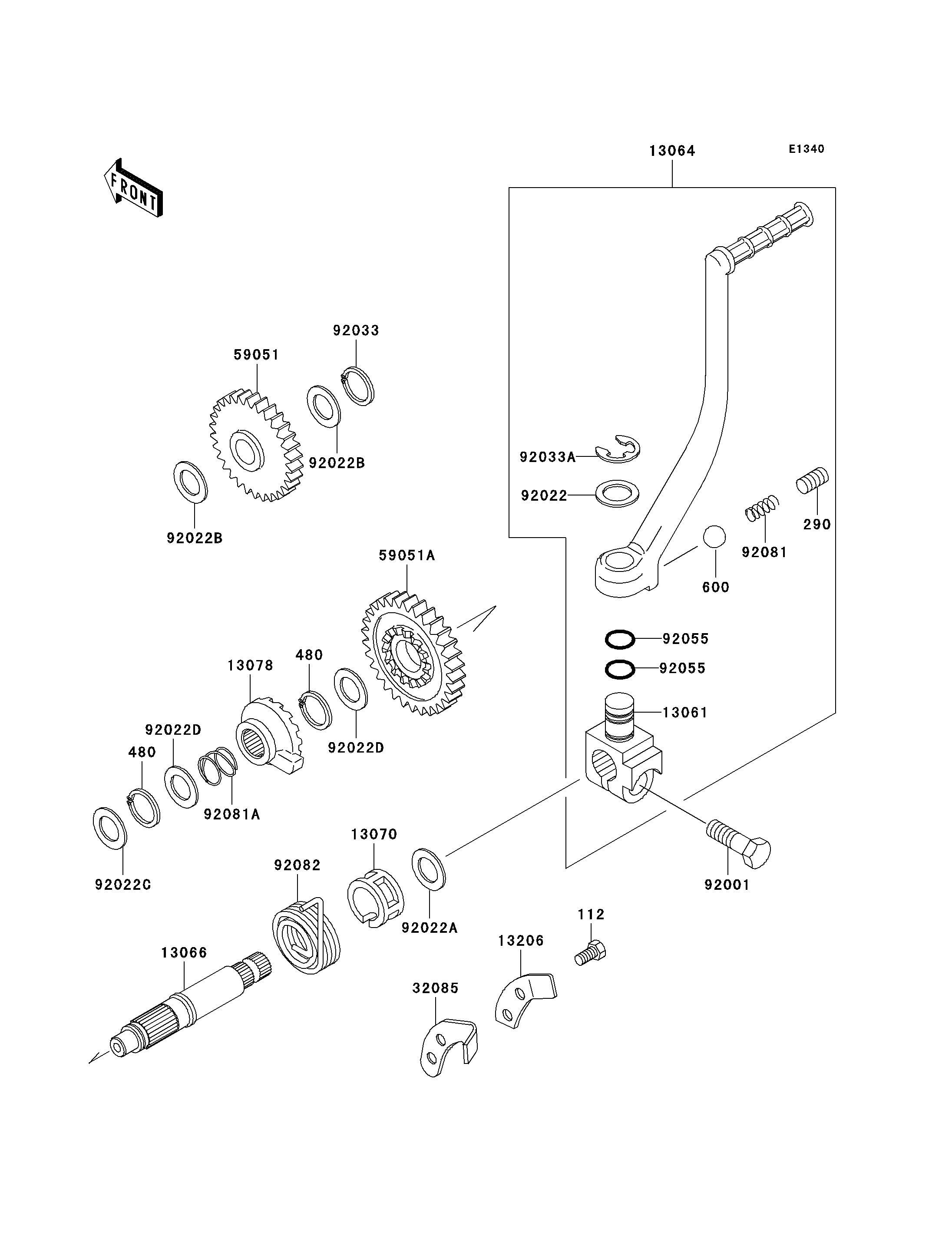

2004 KLR250 - Kickstarter Mechanism

DOWNLOAD PDF
SELECT A NEW PART
112
290
480
480
600
13061
13064
13066
13070
13078
13206
32085
59051
59051A
92001
92022
92022A
92022B
92022B
92022C
92022D
92022D
92033
92033A
92055
92055
92081
92081A
92082
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-UPSET 112 112G0618 2
SCREW-SET-SOCKET,8X8 290 290Q0808 1
CIRCLIP-TYPE-C,16MM 480 480J1600 2
BALL-STEEL,1/4" 600 600A0800 1
BOSS,KICK PEDAL 13061 13061-1131 1
LEVER-ASSY-KICK,PEDAL 13064 13064-1121 1
SHAFT-KICK 13066 13066-1088 1
GUIDE,KICK SPRING 13070 13070-011 1
RATCHET 13078 13078-1052 1
GUIDE-KICK 13206 13206-1054 1
STOPPER,KICKSTARTER 32085 32085-1027 1
GEAR-SPUR,IDLE,28T 59051 59051-1120 1
GEAR-SPUR,KICK,29T 59051A 59051-1131 1
BOLT,8X28 92001 92001-1042 1
WASHER,15.2X20X1 92022 92022-1019 1
WASHER,18.5X23X1.2 92022A 92022-118 1
WASHER,17.3X25X0.5 92022B 92022-1614 2
WASHER,12.3X20X0.5 92022C 92022-269 1
WASHER,16.8X22X0.5 92022D 92022-315 2
RING-SNAP 92033 92033-032 1
RING-SNAP,10MM 92033A 92033-1166 1
RING-O,10X1.5 92055 92055-061 2
SPRING,KICK PEDAL 92081 92081-020 1
SPRING,RATCHET 92081A 92081-122 1
SPRING,KICKSTARTER 92082 92082-003 1
